Overhead ABC cable aluminum wire cable
- 100000 Meter / Meters per Month
- Qingdao Dalian Shanghai Shenzhen
- T/T Credit Card
- 1KV aluminum conductor abc Aerial Bundled Cable
- High Quality Xlpe Pvc Insulated Cable Wires Al Xlpe ABC cable from China
- 11kv 300mm2 overhead cable Aluminum Abc Cable
- 1kv AL/ XLPE Insulated/ACSR Messenger ABC Cable Duplex/Triplex/Quadruplex Aerial Bundle Cable
- Overhead XLPE insulation duplex service drop ABC Cable
- State Grid XLPE Insulated Aerial Bundle Cable ABC cable SIP
Product Details
Brand Name: | RMjT | Place of Origin: | Henan, China | Model Number: | ABC cable |
Type: | Low Voltage | Application: | Overhead | Insulation Material: | XLPE |
Jacket: | PVC | Conductor Material: | Aluminum |
Product Description
manufacturers electrical ABC cable aluminum wire cable
Aluminum electrical wire ABC CABLE -aerial bundle cable
Medium voltage Aerial bundle cable aluminum electrical wire abc cable are mainly used for electric power tranmission, rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.
1kv aluminum electrical wire abc cable, 11kv aluminum electrical wire abc cable, 33kv electrical wire abc cable
Applications:
Duplex and triplex Service Drop cable aluminum electrical wire abc able is intended to deliver single phase power from the secondary overhead power line or pole-mounted transformer
to the service entrance conductors at the user’s building or other structure. Quadruplex Service Drop cable aluminum electrical wire abc able is intended to deliver three phase power from the
secondary overhead power line or pole-mounted transformers to the service entrance conductors at the user’s building or other structure cable may also be used as pole line
secondary with service splices at the pole(also refer to cec rule cable is rated for use on systems having nominal voltages of 600 V or less.
Options:
• Reduced-size insulated conductor for use as a water heater control conductor
• Colour-coded or ribbed PVC jackets which are used for phase identification and Ft1-rated for flame retardancy
• Alternate phase identification by the use of printed numbers on the black coloured insulation
• Neutral conductor corrosion-resistant inhibitor treatment
• Neutral supported cable is available with annealed copper conductors
• Concentric stranded Class A, 6101-T81 aluminum alloy stranded neutral messenger conductor (A2)
• Concentric stranded Class A, 6101-T81 aluminum alloy – high strength steel-reinforced stranded neutral messengerconductor (A2/S3A, AACSR

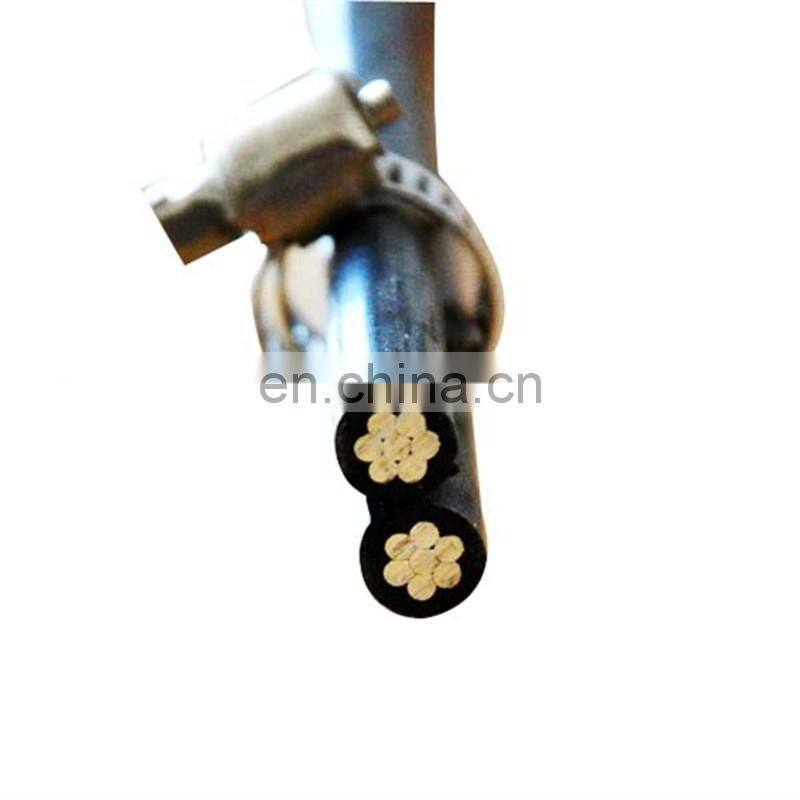

DuplexService Drop cable aluminum electrical wire abc cable consists of one compact aluminum conductor insulated with Linear PVC or XLPE twisted around a bare compact acSR stranded neutral conductor, which serves as a supporting neutral.
A. Duplex Service Drop
Triplex Service Drop cable aluminum electrical wire abc cable consists of two insulated conductors around a bare neutral.
B. Triplex Service Drop

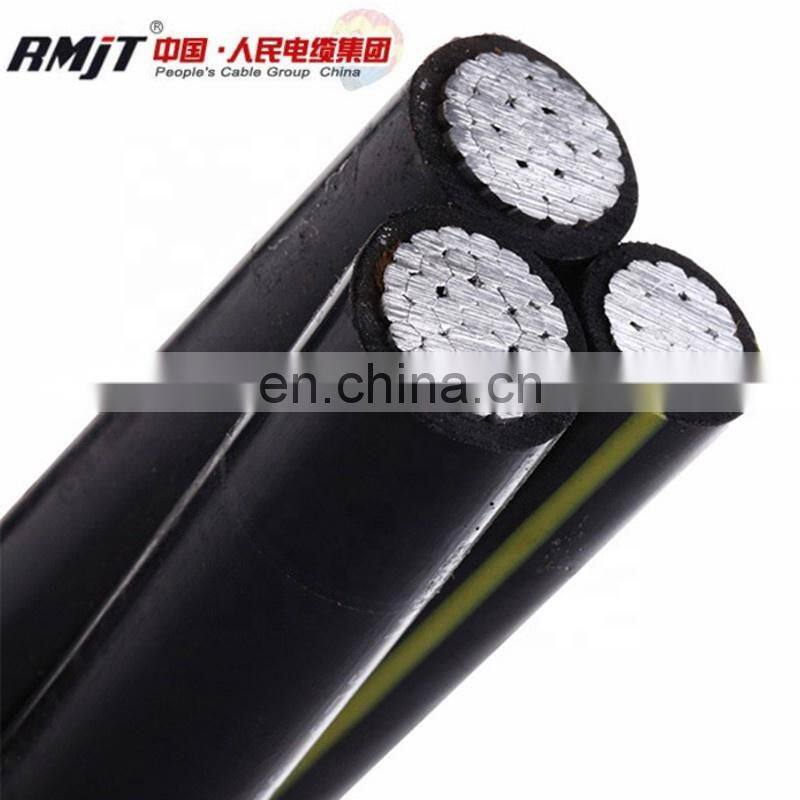

Quadruplex Service Drop cable aluminum electrical wire abc cable consists of three insulated conductors around a bare neutral.
C. Quadruplex Service Drop

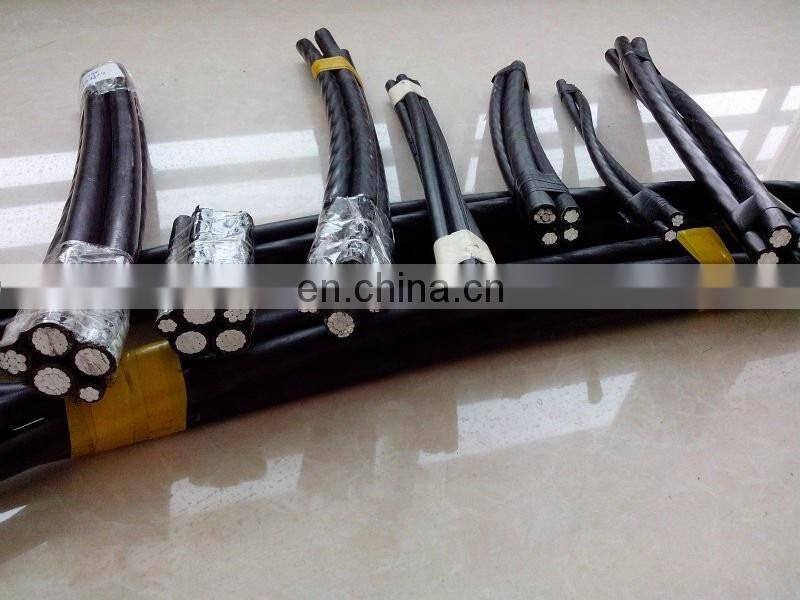

ABC aluminum wire electrical cables samples:
Code* Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000 ft.(Ibs.) | Allowable Ampacities+ | ||||||
Size (AWG or kcmil) | Strand-ing | Insul. Thick. (mils) | Size (AWG or kcmil) | Strand-ing | Rated Strength (Ibs). | XLP | POLY | XLP | POLY | |
ACSR NEUTRAL-MESSENGER | ||||||||||
Morochuca | 6 | 1 | 45 | 6 | 6/1 | 1190 | 145 | 145 | 75 | 60 |
Chola | 6 | 7 | 45 | 6 | 6/1 | 1190 | 153 | 153 | 75 | 60 |
Morgan | 4 | 1 | 45 | 4 | 6/1 | 1860 | 217 | 217 | 100 | 80 |
Hackney | 4 | 7 | 45 | 4 | 6/1 | 1860 | 229 | 229 | 100 | 80 |
Palomino | 2 | 7 | 45 | 2 | 6/1 | 2850 | 347 | 347 | 135 | 105 |
Costena | 1/0 | 9 | 60 | 1/0 | 6/1 | 4380 | 549 | 549 | 180 | 140 |
Grullo | 2/0 | 11 | 60 | 2/0 | 6/1 | 5310 | 677 | 677 | 205 | 160 |
Suffolk | 3/0 | 17 | 60 | 3/0 | 6/1 | 6620 | 837 | 837 | 235 | 185 |
Appaloosa | 4/0 | 18 | 60 | 4/0 | 6/1 | 8350 | 1038 | 1038 | 275 | 210 |
Gelding | 336.4 | 19 | 80 | 4/0 | 6/1 | 8350 | 1494 | 1494 | 370 | 280 |
Bronco | 336.4 | 19 | 80 | 336.4 | 18/1 | 8680 | 1568 | 1568 | 370 | 280 |
