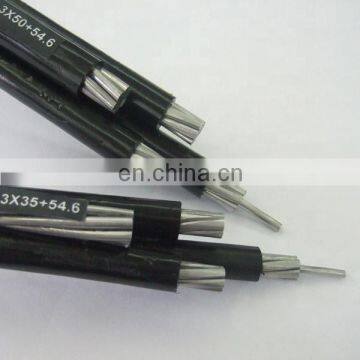

Al XLPE 0.6/1kv Overhead Cable Power Supply Cable ABC Cable In Rural
US$ 0.07 - 0.3
/ Meter
5000 Meters(Min. Order)
- QingDao ShangHai
- T/T Credit Card
You May Like
-
95 sq mm Aluminium Pvc Insulated Power Three Phase Drop Cable
-
Cable Manufacturing Companies Triplex Overhead Service Conductors Aluminium 11kv Aerial Bunched Cable
-
Aerial Bundle AAAC ACSR Conductor Duplex Wire Overhead Messenger Cable
-
ASTM Standard AAC Triplex Service Drop XLPE 4 Core 35mm ABC Aerial Cable
-
Overhead Aluminum Cable 0.6/1.0KV Aerial Bundled Cable ABC Cable Aluminum Conductor Wire
-
Aluminum Conductor Overhead Abc Cable Duplex Triplex Quaplex Bundle Xlpe Insulated Aerial Bundled Cables
Product Details
| Brand Name | RMJT | Place of Origin | Henan, China | |
| Model Number | electric cable aluminum 16mm | Type | Low Voltage | |
| Application | Overhead | Insulation Material | XLPE | |
| Jacket | PVC | Conductor Material | Aluminum |
Product Description
Product Description
Aluminum Conductor PVC Insulated ABC Cable
*APPLICATIONS:
Covered line Wire is used primarily for 600v overhead secondary distribution lines. It is not an electrically insulated conductor and is treated as bare conductor when installed.
*CONSTRUCTION:
The conductors are 1350-H19 Aluminum Wire ,6201-T81 Aluminum Alloy or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density polyethylene(HDPE) or cross-linked polyethylene(XLPE).
Covered line Wire is used primarily for 600v overhead secondary distribution lines. It is not an electrically insulated conductor and is treated as bare conductor when installed.
*CONSTRUCTION:
The conductors are 1350-H19 Aluminum Wire ,6201-T81 Aluminum Alloy or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density polyethylene(HDPE) or cross-linked polyethylene(XLPE).
Duplex Service Drop---Aluminum Conductor
*APPLICATIONS:
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.
To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
*CONSTRUCTION:
Conductors are concentrically stranded, compressed 1350-H19 aluminum.
*CONSTRUCTION:
Conductors are concentrically stranded, compressed 1350-H19 aluminum.
Insulated with either polyethylene or cross-linked polyethylene (XLPE).
Neutral messengers are concentrically stranded 6201, AAC, or ACSR.
Neutral messengers are concentrically stranded 6201, AAC, or ACSR.
Nominal cross section | Neutral core | Phase core | weight (kg/km) | Allowable ampacity (A) | ||||||||||
AAC | LBS | AAC | Insulation thickness(mm) | XLPE | PE | |||||||||
NO | diameter (mm) | NO | diameter(mm) | |||||||||||
1*6AWG+1*6AWG | 7 | 1.56 | 563 | 1 | 4.11 | 1.14 | 92 | 85 | 70 | |||||
1*6AWG+1*6AWG | 7 | 1.56 | 563 | 7 | 1.56 | 1.14 | 94 | 85 | 70 | |||||
1*4AWG+1*4AWG | 7 | 1.96 | 881 | 1 | 5.19 | 1.14 | 139 | 115 | 90 | |||||
1*4AWG+1*4AWG | 7 | 1.96 | 881 | 7 | 1.96 | 1.14 | 141 | 115 | 90 | |||||
1*2AWG+1*2AWG | 7 | 2.47 | 1350 | 7 | 2.47 | 1.14 | 216 | 150 | 120 | |||||
1*1/0AWG+1*1/0AWG | 7 | 3.12 | 1990 | 19 | 1.89 | 1.52 | 347 | 205 | 160 | |||||
Triplex Service Drop---Aluminum Conductor
*APPLICATIONS:
Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made.
Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made.
To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
*CONSTRUCTION:
Conductors are concentrically stranded, compressed 1350-H19 aluminum.
*CONSTRUCTION:
Conductors are concentrically stranded, compressed 1350-H19 aluminum.
Insulated with either polyethylene or cross-linked polyethylene (XLPE).
Neutral messengers are concentrically stranded 6201, AAC, or ACSR.
AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight kg/km | Allowable Ampacities(A) | ||||||||||
AAC | Rated Strength lbs. | AAC | Insul. Thick. mm | XLPE | PE | |||||||||
NO. | Dia.mm | NO. | Dia.mm | |||||||||||
2*6AWG+1*6AWG | 7 | 1.56 | 563 | 1 | 4.11 | 1.14 | 146 | 85 | 70 | |||||
2*6AWG+1*6AWG | 7 | 1.56 | 563 | 7 | 1.56 | 1.14 | 150 | 85 | 70 | |||||
2*4AWG+1*4AWG | 7 | 1.96 | 881 | 1 | 5.19 | 1.14 | 219 | 115 | 90 | |||||
2*4AWG+1*4AWG | 7 | 1.96 | 881 | 7 | 1.96 | 1.14 | 224 | 115 | 90 | |||||
2*2AWG+1*2AWG | 7 | 2.47 | 1350 | 7 | 2.47 | 1.14 | 338 | 150 | 120 | |||||
2*1/0AWG+1*1/0AWG | 7 | 3.12 | 1990 | 7 | 3.12 | 1.52 | 544 | 205 | 160 | |||||
2*1/0AWG+1*1/0AWG | 7 | 3.12 | 1990 | 19 | 1.89 | 1.52 | 545 | 205 | 160 | |||||
2*2/0AWG+l*2/0AWG | 7 | 3.5 | 2510 | 7 | 3.5 | 1.52 | 671 | 235 | 185 | |||||
2*3/0AWG+l*3/0AWG | 19 | 2.39 | 3310 | 19 | 2.39 | 1.52 | 830 | 275 | 215 | |||||
2*4/0AWG+l*4/0AWG | 19 | 3.25 | 4020 | 19 | 3.25 | 1.52 | 1476 | 315 | 245 | |||||
2*336.4+1*336.4 | 19 | 3.38 | 6146 | 19 | 3.38 | 2.03 | 1649 | 420 | 325 | |||||
Quadruplex Service Drop---Aluminum Conductor
*APPLICATIONS:
Used to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made.
*APPLICATIONS:
Used to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made.
To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
*CONSTRUCTION:
Conductors are concentrically stranded, compressed 1350-H19 aluminum.
*CONSTRUCTION:
Conductors are concentrically stranded, compressed 1350-H19 aluminum.
Insulated with either polyethylene or cross-linked polyethylene (XLPE).
Neutral messengers are concentrically stranded 6201, AAC, or ACSR. Conductors are manufactured with ridges for phase identification (one conductor one ridge, one conductor two ridges, one conductor plain.)
AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight kg/km | Allowable Ampacities(A) | ||||||||||
ACSR | Rated Strength lbs. | AAC | Insul. Thick. mm | XLPE | PE | |||||||||
No. | Dia. mm | No. | Dia. mm | |||||||||||
3*6AWG+1*6AWG | 1,6 | 1.68 | 1190 | 1 | 4.11 | 1.14 | 221 | 75 | 60 | |||||
3*6AWG+1*6AWG | 1,6 | 1.68 | 1190 | 7 | 1.56 | 1.14 | 227 | 75 | 60 | |||||
3*4AWG+1*4AWG | 1,6 | 2.12 | 1860 | 1 | 5.19 | 1.14 | 331 | 100 | 80 | |||||
3*4AWG+1*4AWG | 1,6 | 2.12 | 1860 | 7 | 1.96 | 1.14 | 338 | 100 | 80 | |||||
3*2AWG+1*2AWG | 1,6 | 2.67 | 2850 | 7 | 2.47 | 1.14 | 511 | 135 | 105 | |||||
3*1/0AWG+1*1/0AWG | 1,6 | 3.37 | 4380 | 19 | 1.89 | 1.52 | 824 | 180 | 140 | |||||
3*2/0AWG+l*2/0AWG | 1,6 | 3.78 | 5310 | 19 | 2.13 | 1.52 | 1015 | 205 | 160 | |||||
3*3/0AWG+l*3/0AWG | 1,6 | 4.25 | 6620 | 19 | 2.39 | 1.52 | 1254 | 235 | 185 | |||||
3*4/0AWG+l*4/0AWG | 1,6 | 4.77 | 8350 | 19 | 2.68 | 1.52 | 1554 | 275 | 210 | |||||
3*336.4+1*336.4 | 1,18 | 3.47 | 8680 | 19 | 3.38 | 2.03 | 2321 | 370 | 280 | |||||
3*336.4+l*4/0AWG | 1,6 | 4.77 | 8350 | 19 | 3.38 | 2.03 | 2221 | 370 | 280 | |||||
STANDARS:
ASTM B-230 - Aluminum Wire 1350-H19 for Electrical Purposes
ASTM B-231 - Concentric-Lay-Stranded Aluminum Conductors
ASTM B-232 - Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
ASTM B-399- Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
ICEA S-61-402-: Thermoplastic-insulated Wire And Cable For The Transmission And Distribution Of Electrical Energy
ICEA S-66-524-XLPE Insulated Wire and Cable For the Transmission and Distribution of Electrical Energy
ASTM B-230 - Aluminum Wire 1350-H19 for Electrical Purposes
ASTM B-231 - Concentric-Lay-Stranded Aluminum Conductors
ASTM B-232 - Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
ASTM B-399- Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
ICEA S-61-402-: Thermoplastic-insulated Wire And Cable For The Transmission And Distribution Of Electrical Energy
ICEA S-66-524-XLPE Insulated Wire and Cable For the Transmission and Distribution of Electrical Energy
Product name: | Iec Compact ABC conductor Cable | ||||||
Voltage:
| U0/U=0.6/1KV | ||||||
Technical data: |
1. Maximum operating temperature 90 degrees. 2. Maximum short circuit temperature 250 degrees | ||||||
Application field: | 1. Areas where underground networks are expensive. 2. Electrification of rural areas | ||||||
Road conductor type: | 1 AAC: all aluminum bare wire. Bare conductor of ASC: aluminum strand. 2 AAAC: all aluminum alloy bare conductor. Bare conductor of AASC: aluminum alloy stranded wire. 3 ACSR: steel core aluminum wire | ||||||
If you like this product, please click to contact us
People's Cable Group Co., Ltd.
People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
Our mainly products as follow:
1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.
pakaging & shipping
FAQ
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we
will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
