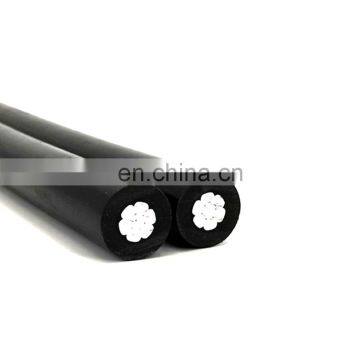

3 Core 4mm Pvc Xlpe Insulated 95mm2 Power Cables Aluminium 50kv High Voltage Cable
US$ 0.07 - 2.3
MOQ: 500 Meters
Key Specifications
Get Latest Price
Brand Name:
RMJT
Place of Origin:
Henan, China
Model Number:
YJLV22,YJV32,YJLV32,VV32,
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjing Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Al XLPE 0.6/1kv Overhead Cable Power Supply Cable ABC Cable In RuralUS$ 0.07 - 0.3MOQ: 5000 Meters -
95 sq mm Aluminium Pvc Insulated Power Three Phase Drop CableUS$ 0.07 - 1.77MOQ: 500 Meters
-
Cable Manufacturing Companies Triplex Overhead Service Conductors Aluminium 11kv Aerial Bunched CableUS$ 0.07 - 2.3MOQ: 500 Meters
-
Aerial Bundle AAAC ACSR Conductor Duplex Wire Overhead Messenger CableUS$ 0.1 - 10MOQ: 1000 Meters
-
ASTM Standard AAC Triplex Service Drop XLPE 4 Core 35mm ABC Aerial CableUS$ 0.7 - 7.8MOQ: 500 Meters
Brand Name
RMJT
Place of Origin
Henan, China
Model Number
YJLV22,YJV32,YJLV32,VV32,

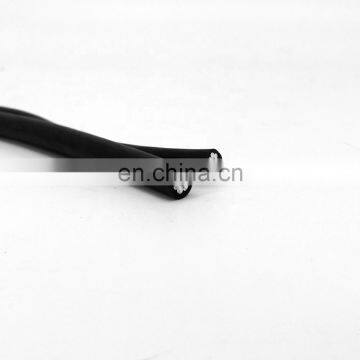

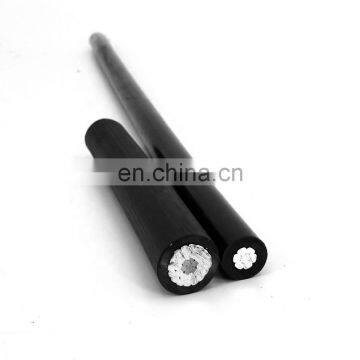

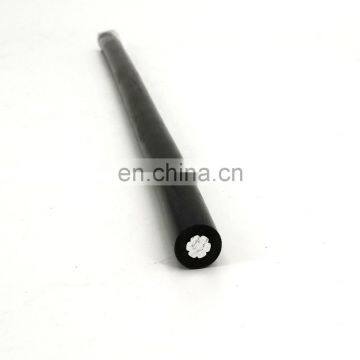

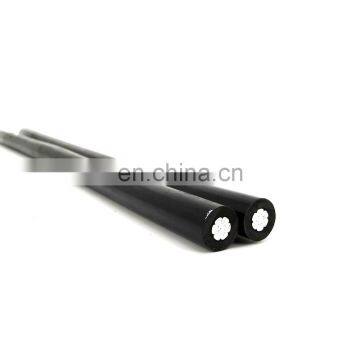

3 core 4mm pvc xlpe insulated 95mm2 power cables aluminium 50kv high voltage cable
Overhead insulated cable consists of compacted copper, aluminum (aluminum alloy) conductor, inner shield, fire-resistant insulation and outer shield. It only has the power transmission characteristics of power cables and also has the strong mechanical properties of overhead cables.
Implementation Standards |
Product |
GB/T12527-2008 |
Overhead insulated cables with a rated voltage of 1kV and below |
GB/T14049-2008 |
Overhead insulated cable with rated voltage of 10kV |
GB/T1179-2008 |
Round wire concentric gallows overhead conductor |
Product Use Characteristics
1. Rated voltage:
* 1kV, 10kV
2. Allowable working temperature of cable:
* 70 ℃ for PVC insulation ;
* 90 ℃ for XLPE insulation ;
* 70 ℃ for PE insulation ;
* 75 ℃ for HDPE insulation ;
3. When short circuit occurs (maximum time does not exceed 5 seconds), the maximum temperature of the cable:
* 160 ℃ for PVC insulation ;
* 150 ℃ for HDPE insulation ;
* 250 ℃ for XLPE insulation ;
* 130 ℃ for PE insulation ;
4. The ambient temperature for cable laying shall not be lower than -20 ℃, and the installation laying temperature shall not be lower than 0 ℃.
5. Allowable bending radius of cable:
* Cables with a rated voltage less than 1kV: cables with an outer diameter (D) less than 25mm, not less than 4D; cables with an outer diameter (D) of 25mm or more, not less than 6D
* 10kV rated voltage cable: single-core cable 20 (D + d) ± 5% mm, multi-core cable 15 (D + d) ± 5 mm.
* 1kV, 10kV
2. Allowable working temperature of cable:
* 70 ℃ for PVC insulation ;
* 90 ℃ for XLPE insulation ;
* 70 ℃ for PE insulation ;
* 75 ℃ for HDPE insulation ;
3. When short circuit occurs (maximum time does not exceed 5 seconds), the maximum temperature of the cable:
* 160 ℃ for PVC insulation ;
* 150 ℃ for HDPE insulation ;
* 250 ℃ for XLPE insulation ;
* 130 ℃ for PE insulation ;
4. The ambient temperature for cable laying shall not be lower than -20 ℃, and the installation laying temperature shall not be lower than 0 ℃.
5. Allowable bending radius of cable:
* Cables with a rated voltage less than 1kV: cables with an outer diameter (D) less than 25mm, not less than 4D; cables with an outer diameter (D) of 25mm or more, not less than 6D
* 10kV rated voltage cable: single-core cable 20 (D + d) ± 5% mm, multi-core cable 15 (D + d) ± 5 mm.
Note: D-actual outer diameter of cable ; d-actual outer diameter of cable conductor
Model |
Number of cores |
Cross-sectional area |
JKV,JKLV,JKY,JKLY,JKY,JKL(G)YJ |
1 |
16-240 |
2,4 |
10-120 |
|
JKV,JKLV,JKLHV,JKY,JKLY,JKLHY,JKYJ,JKLYJ,JKLHYJ |
1 |
10-240 |
2,4 |
10-240 |
|
JKLV,JKLY,JKLYJ |
3+k |
10-120 |
BS1-JKV,BS1-JKLV,BS1-JKY,BS1-JKLY BS1-JKYJ,BS1-JKLYJ |
3+k |
2.5-50 |
JKYJ,JKTRYJ,JKLYJ,JKLHYJ |
1 |
10-300 |
3,(3+k) |
25-300 (K:25-120) |
|
JKYJ,JKLYJ,JKY,JKLY,JKLYGYJ |
1 |
10-300 |
3 |
25-300 |
|
JKY,JKTRY,JKLY,JKLHY,JKLYJ/Q,JKLHYJ/Q,JKLY/Q,JKLHY/Q |
1 |
10-300 |
JKLYJ/Q,JKLY/Q,JKLYJ/B |
3+k(A) or 3+k(B) |
25-300 |
JKLGV |
1
|
10/2~240/40 |
JKLGY |
10/2~240/40;
25/4~300/50
|
|
JKLGYJ |
||
JKLGYJ/Q |
25/4~300/50 |
|
JKLGY/Q |
25/4~300/50 |
Overhead insulated cables with a rated voltage of 1kV and below are suitable for overhead power lines with a rated voltage of 0.6% 2F1KV and below, and can be used as fixed laying or household wires.
Overhead insulated cables with a rated voltage of 10kV and below are suitable for overhead power transmission line transmission.10kV transmission lines for power grid construction and transformation are preferred. Soft copper core products are suitable for transformer down-conductors.
Overhead insulated cables with a rated voltage of 10kV and below are suitable for overhead power transmission line transmission.10kV transmission lines for power grid construction and transformation are preferred. Soft copper core products are suitable for transformer down-conductors.
Steel core aluminum stranded wire core overhead insulated cables with rated voltage of 10kV and below are suitable for overhead power distribution lines with AC rated voltage of 10kV and below.

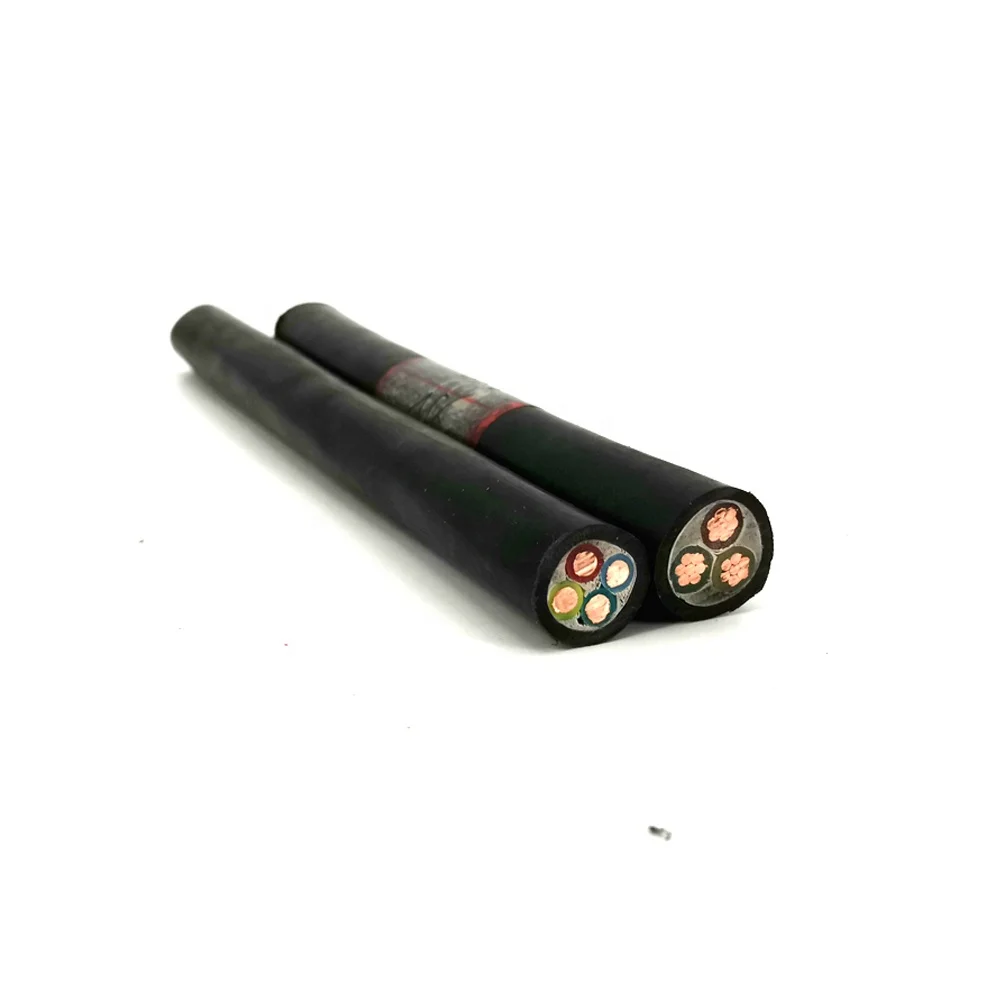

POWER CABLE
WELDING CABLE
SUBMARINE CABLE

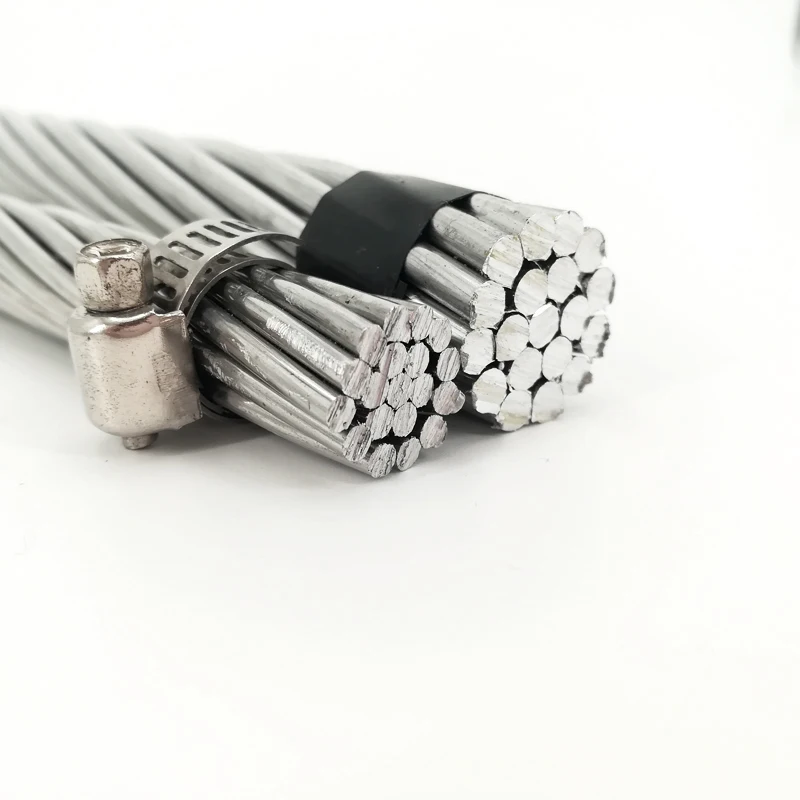

ACSR CONDUCTOR
BARE CONDUCTOR

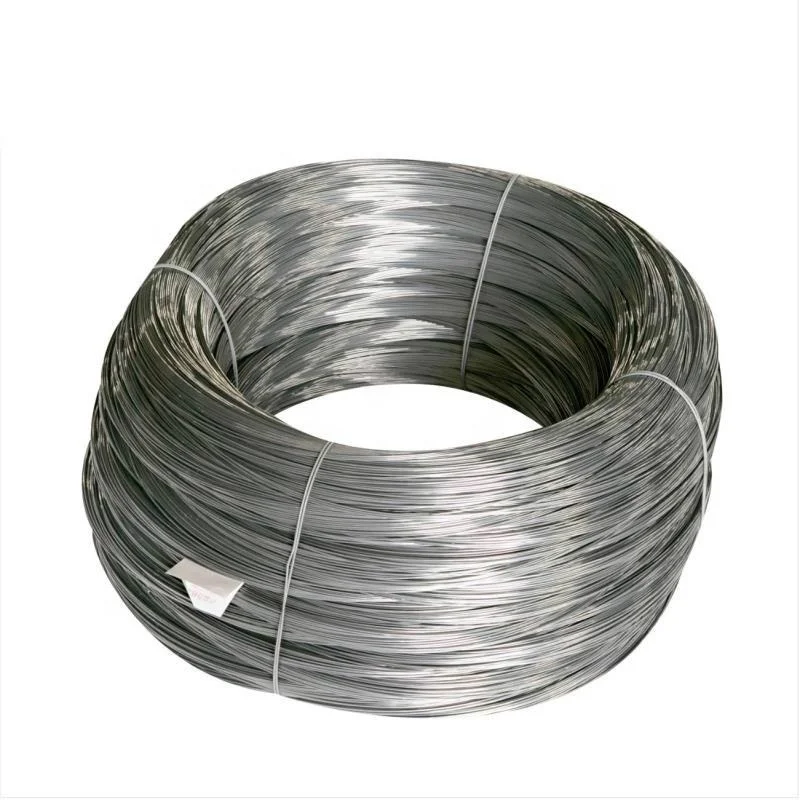

GALVANIZED STEEL WIRE
RUBBER CABLE

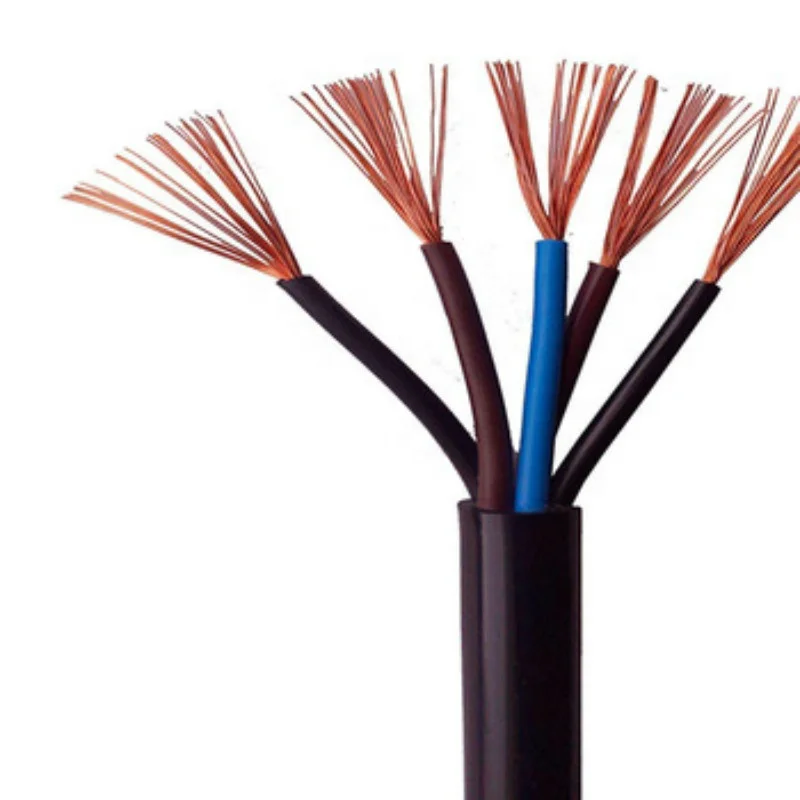

ELECTRIC WIREl
CONTROL CABLE
Packaging and Shipping
If you like this product, please click to Contact Us
Our Company
People''s Cable Group Co., Ltd.
People''s Cable Group Co., Ltd. was established in 2007, it is located in Gongyi Zhengzhou Economic Development Zone. The main products are PVC construction wires, PVC and XLPE insulated power cables, rubber, mining and welding cables, ABC cables, bare conductors, such as: AAC, AAAC, ACSR, ACSR / AW, AACSR, ACAR and power cable. All our products comply with GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS / NZS, CSA, GOST and other standards.
