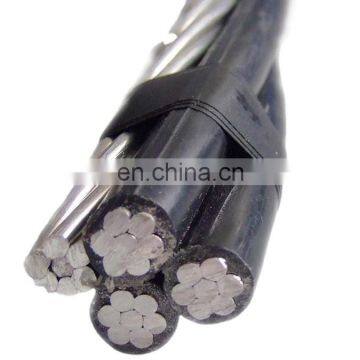

ABC Cable Overhead Aerial Bundled Cable 1KV 10KV 11KV 33KV 1X240

FOB Price

USD $0.1 - $3.6 / Meter

1000 Meters(Min.Order)

Supply Ability 100000000 Kilometer / Kilometers per Month
Port Qingdao Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	RMJT	Place of Origin:	Henan, China	Model Number:	ABC Cable
Type:	Low Voltage	Application:	Overhead
Jacket:	PVC

Product Description

*APPLICATIONS:
Covered line Wire is used primarily for 600v overhead secondary distribution lines. It is not an electrically insulated conductor and is treated as bare conductor when installed.
*CONSTRUCTION:
The conductors are 1350-H19 Aluminum Wire ,6201-T81 Aluminum Alloy or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density polyethylene(HDPE) or cross-linked polyethylene(XLPE).

Product name	Road conductor type
Voltage	U0/U=0.6/1KV
Technical data	1. Maximum operating temperature 90 degrees. 2. Maximum short circuit temperature 250 degrees
Application field	1. Areas where underground networks are expensive. 2. Electrification of rural areas
Road conductor type	1 AAC: all aluminum bare wire. Bare conductor of ASC: aluminum strand. 2 AAAC: all aluminum alloy bare conductor. Bare conductor of AASC: aluminum alloy stranded wire. 3 ACSR: steel core aluminum wire

STANDARS:
ASTM B-230 - Aluminum Wire 1350-H19 for Electrical Purposes
ASTM B-231 - Concentric-Lay-Stranded Aluminum Conductors
ASTM B-232 - Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
ASTM B-399- Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
ICEA S-61-402-: Thermoplastic-insulated Wire And Cable For The Transmission And Distribution Of Electrical Energy
ICEA S-66-524-XLPE Insulated Wire and Cable For the Transmission and Distribution of Electrical Energy

Duplex Service Drop---Aluminum Conductor

*APPLICATIONS:

Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.

To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
*CONSTRUCTION:
Conductors are concentrically stranded, compressed 1350-H19 aluminum.

Insulated with either polyethylene or cross-linked polyethylene (XLPE).
Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

Nominal cross section	Neutral core					Phase core				weight (kg/km)	Allowable ampacity (A)
		AAC			LBS	AAC			Insulation thickness(mm)		XLPE	PE
		NO	diameter (mm)		LBS	NO	diameter(mm)		Insulation thickness(mm)		XLPE	PE
16AWG+16AWG	7	1.56	563	1	4.11	1.14	92	85	70
16AWG+16AWG	7	1.56	563	7	1.56	1.14	94	85	70
14AWG+14AWG	7	1.96	881	1	5.19	1.14	139	115	90
14AWG+14AWG	7	1.96	881	7	1.96	1.14	141	115	90
12AWG+12AWG	7	2.47	1350	7	2.47	1.14	216	150	120
11/0AWG+11/0AWG	7	3.12	1990	19	1.89	1.52	347	205	160

Triplex Service Drop---Aluminum Conductor

*APPLICATIONS:
Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made.

Insulated with either polyethylene or cross-linked polyethylene (XLPE).

Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

AWG or kcmil	Bare Neutral Messenger					Phase Conductor				Weight kg/km	Allowable Ampacities(A)
		AAC			Rated Strength lbs.	AAC			Insul. Thick. mm		XLPE	PE
		NO.	Dia.mm		Rated Strength lbs.	NO.	Dia.mm		Insul. Thick. mm		XLPE	PE
26AWG+16AWG	7	1.56	563	1	4.11	1.14	146	85	70
26AWG+16AWG	7	1.56	563	7	1.56	1.14	150	85	70
24AWG+14AWG	7	1.96	881	1	5.19	1.14	219	115	90
24AWG+14AWG	7	1.96	881	7	1.96	1.14	224	115	90
22AWG+12AWG	7	2.47	1350	7	2.47	1.14	338	150	120
21/0AWG+11/0AWG	7	3.12	1990	7	3.12	1.52	544	205	160
21/0AWG+11/0AWG	7	3.12	1990	19	1.89	1.52	545	205	160
22/0AWG+l2/0AWG	7	3.5	2510	7	3.5	1.52	671	235	185
23/0AWG+l3/0AWG	19	2.39	3310	19	2.39	1.52	830	275	215
24/0AWG+l4/0AWG	19	3.25	4020	19	3.25	1.52	1476	315	245
2336.4+1336.4	19	3.38	6146	19	3.38	2.03	1649	420	325

Quadruplex Service Drop---Aluminum Conductor
*APPLICATIONS:
Used to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made.

Insulated with either polyethylene or cross-linked polyethylene (XLPE).

Neutral messengers are concentrically stranded 6201, AAC, or ACSR. Conductors are manufactured with ridges for phase identification (one conductor one ridge, one conductor two ridges, one conductor plain.)

AWG or kcmil	Bare Neutral Messenger					Phase Conductor				Weight kg/km	Allowable Ampacities(A)
		ACSR			Rated Strength lbs.	AAC			Insul. Thick. mm		XLPE	PE
		No.	Dia. mm		Rated Strength lbs.	No.	Dia. mm		Insul. Thick. mm		XLPE	PE
36AWG+16AWG	1,6	1.68	1190	1	4.11	1.14	221	75	60
36AWG+16AWG	1,6	1.68	1190	7	1.56	1.14	227	75	60
34AWG+14AWG	1,6	2.12	1860	1	5.19	1.14	331	100	80
34AWG+14AWG	1,6	2.12	1860	7	1.96	1.14	338	100	80
32AWG+12AWG	1,6	2.67	2850	7	2.47	1.14	511	135	105
31/0AWG+11/0AWG	1,6	3.37	4380	19	1.89	1.52	824	180	140
32/0AWG+l2/0AWG	1,6	3.78	5310	19	2.13	1.52	1015	205	160
33/0AWG+l3/0AWG	1,6	4.25	6620	19	2.39	1.52	1254	235	185
34/0AWG+l4/0AWG	1,6	4.77	8350	19	2.68	1.52	1554	275	210
3336.4+1336.4	1,18	3.47	8680	19	3.38	2.03	2321	370	280
3336.4+l4/0AWG	1,6	4.77	8350	19	3.38	2.03	2221	370	280
