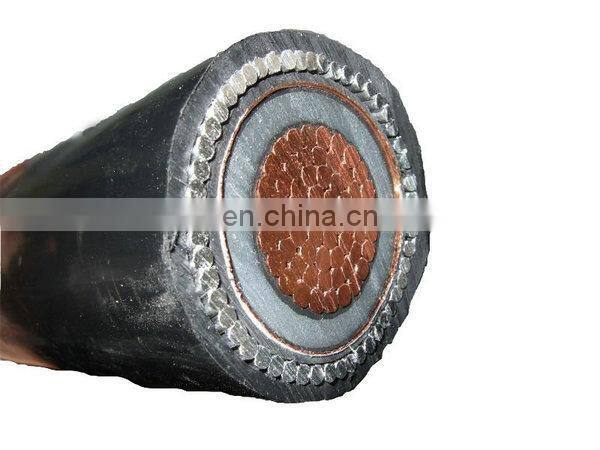

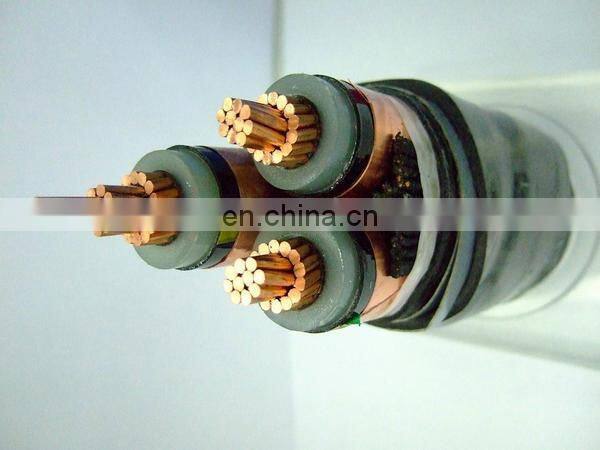

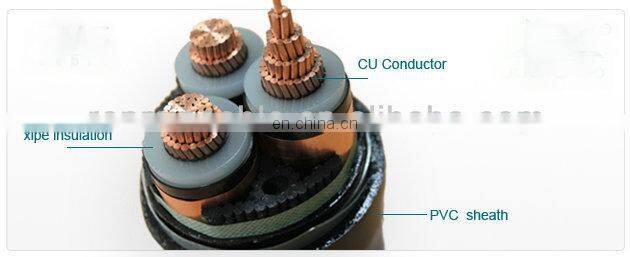

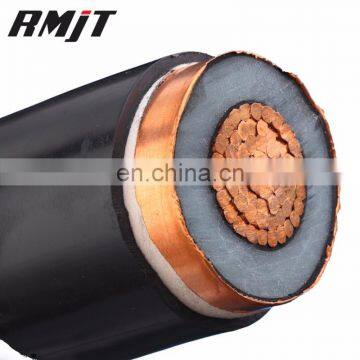

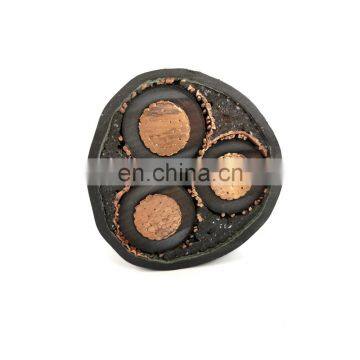

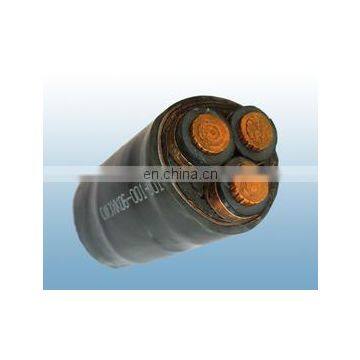

Copper Cable YJV 26/35KV 1X400 33kv xlpe cable
1,Advantage:
XLPE insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple.
The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.
We can design and manufacture special XLPE cable according to the standards required by the customers.
2,Main Application
For laying indoor,tunnel , cannal and underground. Unable to bear external mechanical forces , but bear the traction force during laid.
Max. Conductor Operating Temperature: 90°C
|
TYPE |
Description |
Main Application |
|
|
Cu core |
Al core |
||
|
Cu/XLPE/PVC |
Al/XLPE/PVC |
XLPE insulated, PVC sheathed power cable |
For laying indoor, tunnel, canal and underground. Unable to bear external mechanical forces, but bear the traction force during laid. |
|

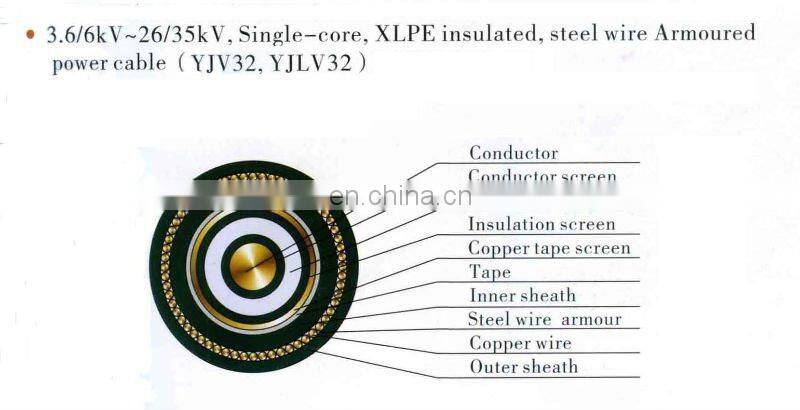

Cu/XLPE/STA/PVC |
Al/XLPE/STA/PVC |
XLPE insulated, steel tape armored PVC sheathed power cable |
For laying indoor,tunnel,canal and underground.able to bear external mechanical forces,but unable to bear large pulling force. |
|
Cu/XLPE/SWA/PVC |
Al/XLPE/SWA/PVC |
XLPE insulated, fine steel wire armored PVC sheathed power cable |
For laying in shaft,water underground will large difference of levels.Able to bear external mechanical forces and moderate pulling force. |
|
Cu/XLPE/SWA/PVC |
Al/XLPE/SWA/PVC |
XLPE insulated, thick steel wire armored PVC sheathed power cable |
For laying in water and seabed,able to bear positive pressure and pulling force. |
3,Rated voltage:
Uo/U:3.6/6kV, 6/10kV(11kV), 12/20kV(24kV), 19/33kV, 26/35kV(35kV).
