Nyy N2xy Cable Underground Power Cable
- QingDao TianJin ShangHai
- T/T Credit Card
You May Like
-
XLPE Insulated Power 4 Core Armoured 120mm 3 Phase Underground Cable
-
Armoured XLPE Insulated Aluminum Underground Cable
-
11kv Underground Armoured Malaysia Insulated Electrical Cable
-
Paper Insulated Steel Wire Armoured Underground Cable
-
Prices 4 Core Armoured Insulated Copper Underground Cable Wires
-
70mm PVC Insulated Earthing Copper Underground Cable Price List Armoured Cable For Nigeria
Product Details
| Brand Name | RMJT | Place of Origin | Henan, China | |
| Model Number | NYY N2XY | Type | Low Voltage | |
| Application | Power Station | |||
Product Description

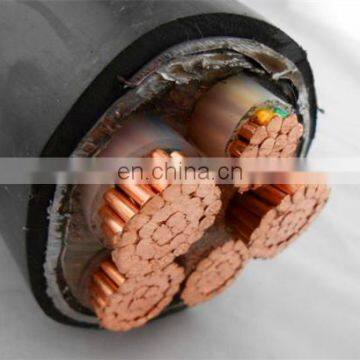

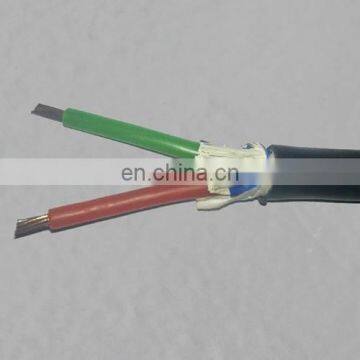

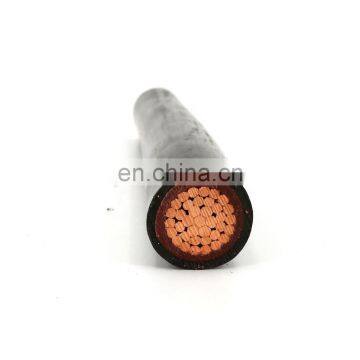

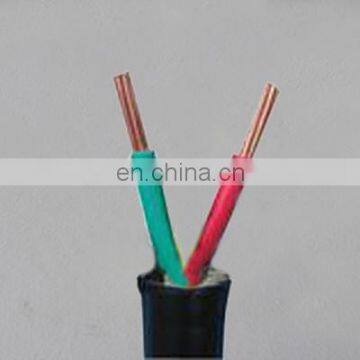

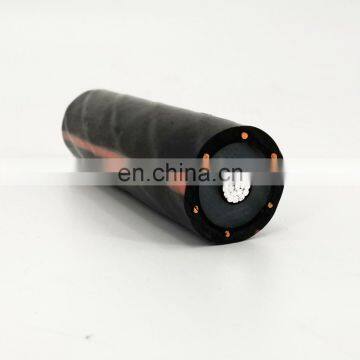

Underground power cable Nyy N2xy Cable
It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is
generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and
communication in complete replace of oil immersed paper insulated power cable and in partial replace of
PVC insulated power cable. Power cables for power networks, underground, outdoors and in cable ducting

2 Construction
Standards: BS6622, BS EN/IEC 60228,IEC60502.2
Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
Conductor screen: Semi-conducting material
Insulation: XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655
Insulation Screen: Semi-conducting material
Metallic Screen: Individual and overall copper tape screen to BS6622
Filler: PET (Polyethylene Terephthalate) fibres
Separator: Binding tape
Bedding: PVC (Polyvinyl Chloride) Type TM1 to BS7655
Armoring:
Single Core: Aluminum Wire Armored (AWA)
MultiCore: Steel Wire Armored (SWA)
Sheath: PVC (Polyvinyl Chloride) Type TM1 to BS7655
Color: Red or Black

3 Using features:
1.Rated voltage: Uo/U:3.6/6kV, 6/10kV(11kV), 12/20kV(24kV), 19/33kV, 26/35kV(35kV).
2. No. of core: Single core or three cores.
3. The highest allowed operating temperature of conductor for long-term working is 90oC.
In short-circuit (Max. long-term is no more than 5 seconds). The highest temperature for
conductor is no more than 250℃.
4. D.C. resistance of the conductor complies with the stipulations of 3.6/6kV, 6/10kV(11kV),
12/20kV(24kV), 19/33kV, 26/35kV(35kV).
5. The environment temperature should be no lower than 0oC when lay. Otherwise it
should be preheated.
6. The cable is laid without horizontal drop limit.
7. Working Frequency Voltage Test: 3.5Uo/5min without puncture.
8. Partial Discharge Test: The discharge volume should be no more than 10pC under
1.73Uo for the cable.
9. Minimum Bending Radius
Single core - Fixed: 15 x overall diameter
3 core - Fixed: 12 x overall diameter
(Single core 12 x overall diameter and 3 core 10 x overall diameter where bands are
positioned adjacent to joint or terminations provided that the bending is carefully
controlled by the use of a former)

FAQ:
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
