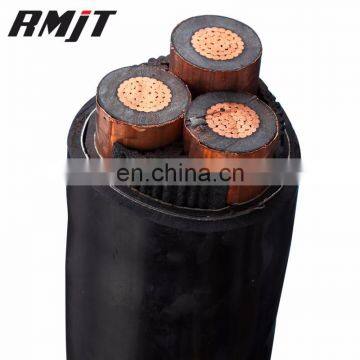

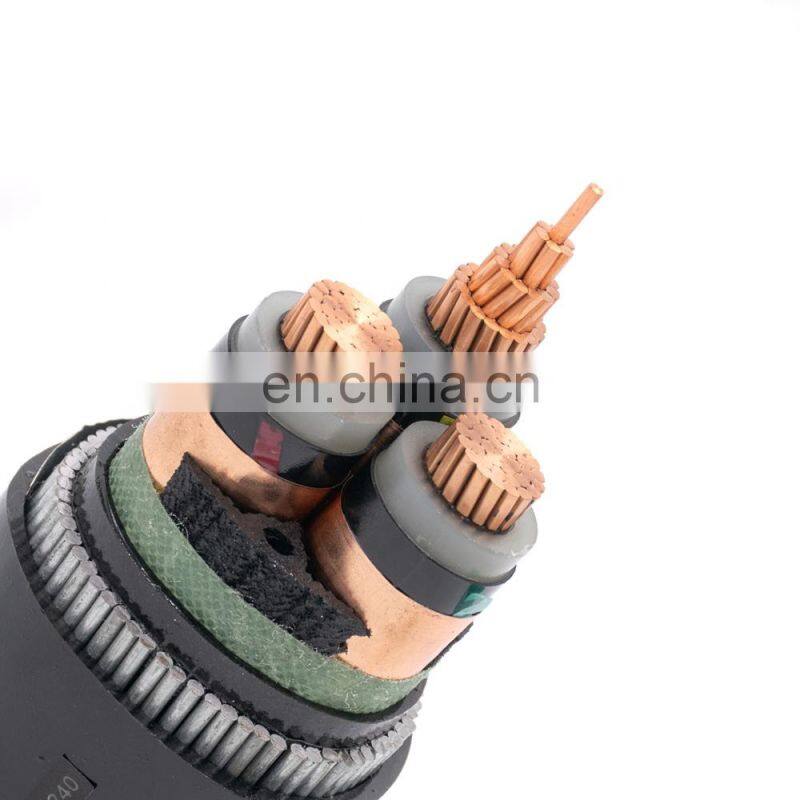

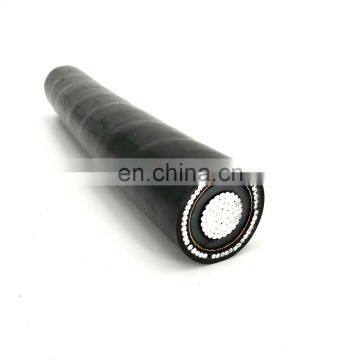

Copper or Aluminium Conductor 11kv xlpe SWA Cable
Constructions
Conductor |
Compact Stranded Copper Conductor, Class 2 as per IEC 60228 |
Circular solid Copper Conductor, Class 1 as per IEC 60228 | |
Flexible Stranded Copper Conductor, Class 5 as per IEC 60228 | |
Conductor Screen |
Semi-conductor (MV only) |
Insulation |
XLPE(Cross-linked polyethylene) |
Insulation Screen |
Semi-conductor (MV only) |
Separate Screen |
Copper Tape (MV must, LV optional) |
Filler |
PP Yarn, or Paper |
Wrapping Tape |
PP |
Inner Covering |
Extruded PVC (MV only) |
Armour |
Steel Wire, or Steel Tape, or Aluminium Tape optional |
Overall Sheath |
PVC or PE |
Applications
Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV
Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables
15 x cable O.D for single-core armoured cables
15 x cable O.D for multi-core non-armoured cables
12 x cable O.D for multi-core armoured cables
Certificates
ISO9001 ISO14001 OHSAS18001, CCC and more others at request
specification
| China Type | Description | Application | |
| Cu | Al | ||
| YJV | YJLV | XLPE insulation PVC sheath power cable (Cu/XLPE/PVC) | To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
| YJV22 | YJLV22 | XLPE insulation, steel tape armor, PVC sheath power cable | To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
| (Cu/XLPE/PVC/STA/PVC) | |||
| YJV23 | YJLV23 | XLPE insulation, steel tape armor, PE sheath power cable | |
| (Cu/XLPE/PVC/STA/PE) | |||
| YJV32 | YJLV32 | XLPE insulation, thin steel-wire armor, PVC sheath power cable | Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint |
| (Cu/XLPE/PVC/SWA/PVC) | . | ||
xlpe cable 11kv

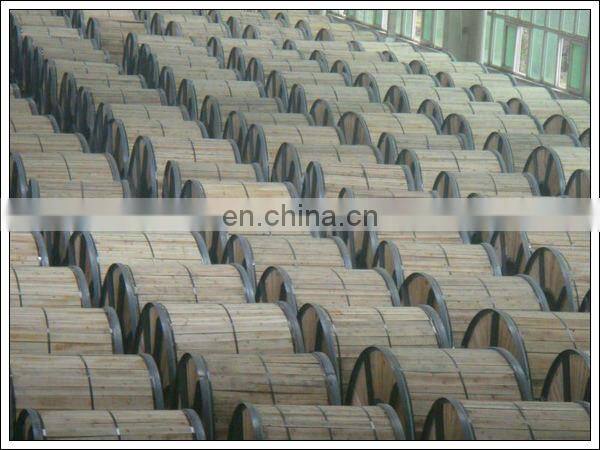

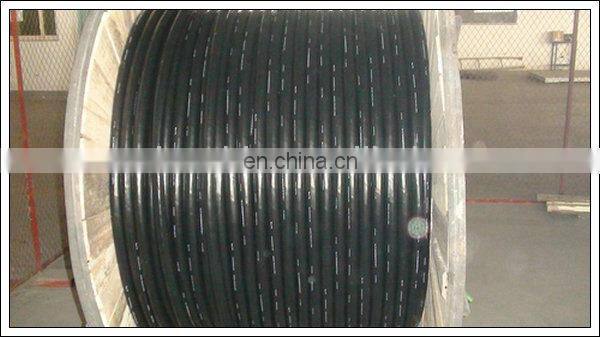

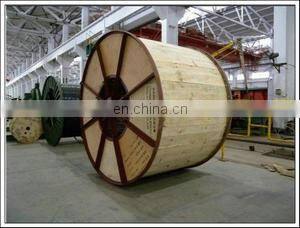

package in wooden drums or iron-wooden drums for xlpe cable 11kv
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. We have 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than more than USD 10 million , with total 630 staff members, 65 of which are professional and technical experts. Zhitian factory is mainly specialized in PVC Insulated Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable,Control cable and Welding Cables. And the Zhulin factory is mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as All Aluminum Conductor(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). And Galvanized steel wire(GSW). Our products meet standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST and also supply according to customers’ unique requirements and specifications.
As one of top rank cables manufacturers in China, our Zhitian factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And the Zhulin factory is mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as All Aluminum Conductor(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR).
Our Service
1.The advantages of our company:
1) Our company is a professional supplier of various kinds of cables for over 20 years.
2) The quality of our products are guaranteed. They are all with CCC, ISO9001 ISO14001 OHSAS18001;
3) The price is averagely 10%~20% lower than the other competitors. Because our factory is located in a small town. The labor and raw materials cost are relatively low there.
4) Huge Inventory Allows Us To Ship Your Order Immediately
5)Our employees are all capable and professional. They can offer you the Prompt Courteous Service.
6) We ship worldwide.
2.Pre-sales Service Offering comprehensive technical and business consultation services; Designing and fabricating targeted products according to the special requirements of clients; Sample can be send as customer's requirement
3.After-sales Service Highly inspecting in every working procedure, quality comes first; Fast & Safe Delivery; Providing life-long maintenance service;Providing technical exchanging
FAQ:
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
