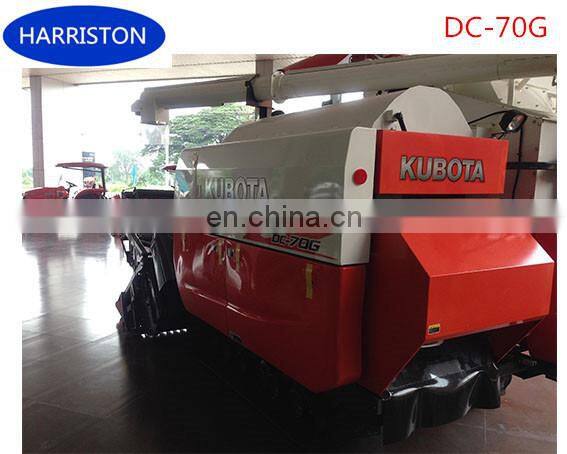

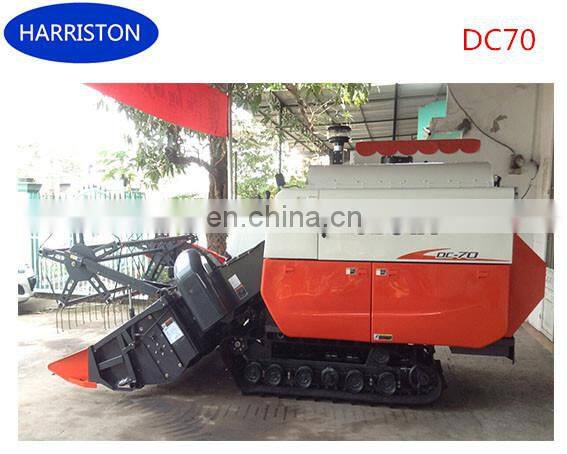

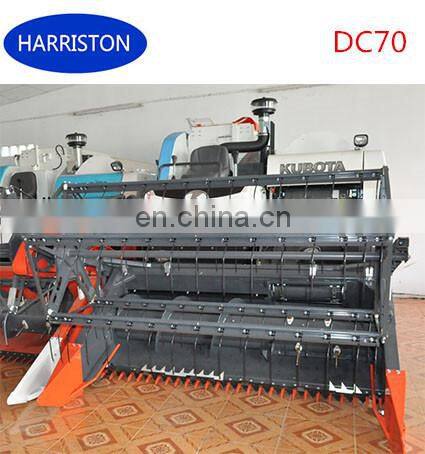

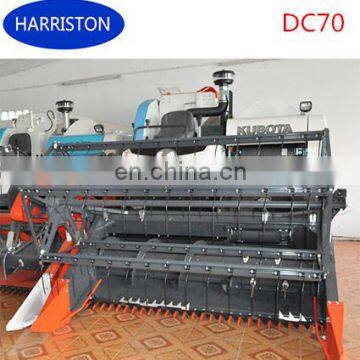

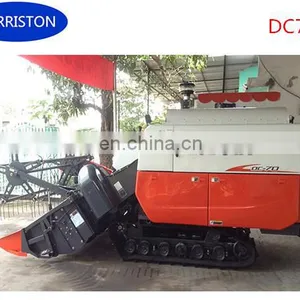

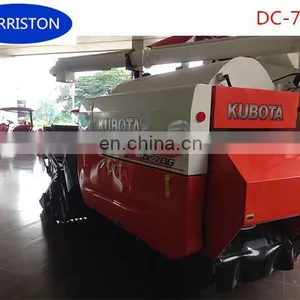

Help CenterKubota Rice Combine Harvester Machine DC70
Related Products
-
988Q Kubota Rice Combine Harvester MachineUS$ 25,000 - 28,000MOQ: 1 Piece -
Kubotian DC60 400 * 90 *47 High Quality CrawlerUS$ 5 - 50MOQ: 100 Pieces
-
High Quality Mitsuboshi Belt LC79 For Kubota HarvesterUS$ 10 - 20MOQ: 3 Pieces
-
Kubota Original V Belt LC100 For Combine HarvesterUS$ 8 - 10MOQ: 3 Pieces
-
Kubota Tractor M704KQ For Farm AgricultureUS$ 19,000 - 20,000MOQ: 1 Piece
| SPECIFICATION OF KUBOTA DC70/DC70G COMBINE HARVESTER | |||||
| MODEL | DC70/DC70G | ||||
| Dimension | Overall length(mm) | 4860 | |||
| Overall width(mm) | 2295 | ||||
| Overall height(mm) | 2765 | ||||
| Weight (kg) | 2815 | ||||
| Engine | Model | V2403-M-DI-TE2-CKMS6 | |||
| Pattern | vertical 4 cylinder 4 stroke water-cooleddirect injection turbo diesle | ||||
| Cylinder capacity (L(cc)) | 2.434(2434) | ||||
| Rated output/speed(ps(kw)/rpm) | 68(50)/2700 | ||||
| Burnt oil | 0 # diesel | ||||
| Fuel tank capacity(L) | 60 | ||||
| Starting method | starter motor | ||||
| Storage battery(V.Ah) | 12·52 | ||||
| Travel unit | Track |
Width*contact length(mm) |
450×1680 | ||
| Centre distance(mm) | 1150 | ||||
|
Average ground pressure (kpa(kgf)/cm2) |
18.1 (0.19) | ||||
| Minimum ground clearance(mm) | 275 | ||||
| Transmission mode |
hytrostatic stepless change(HST) |
||||
| Speed grade | stepless vice-speed 3files | ||||
| Running speed (m/s) | low speed:0~0.97; cruising speed:0~1.37;hign speed:0~1.85 | ||||
| Harvest unit | Pull-grain methold | pull-grain machine | |||
| Harvesting width(mm) | 2000 | ||||
| Cutter width(mm) | 1905 | ||||
| Harvest height(mm) | 40 (tool nose) | ||||
| Lodging adaptive(degree) | < 85 degeree, < 70 degree | ||||
|
Threshing unit |
Threshing system | axial-flow type | |||
| Threshing cylinder | Threshing teeth type | rob teeth | |||
| Diameter × width(mm) | Φ620×1790 | ||||
| Rotational speed(rpm) | 560 | ||||
| Second transmission mode | auger | ||||
| Screening method | vibration sieve.air seperating | ||||
| Concavity net area (4) (m2) | 1.621 | ||||
|
Uereal discharge unit |
Cereal collection tank | Capacity (L) | 1000 | ||
|
Cereal ejection port number(piece) |
1 | ||||
|
Warning lights and equipments |
Second screening and vertical transmission |
||||
| Cerealcollection fill up | |||||
| Water temprature | |||||
|
Charging of accumulator |
|||||
| Engine oil pressure | |||||
| Suitable crops | rice / wheat | ||||
| Operational efficiency (A unit of area/hour) |
38 ( change according to the type of crop) |
||||
Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:
1, all independent and non independent refrigeration unit sales, installation, training and customer service service for 9.6meters van truck. Supplying front, top and chassis types to meet the needs of various types of vehicles;
2, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
3, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
4, Cummings full range of engine accessories ‘sales and service, with the East, north, Kang Kang Kang, Xikang and Meikang models;
5, various types of farm implements’ sales and service, including rotary machine, strapping machine, mixing machine, grinder, disc plough, glass mower, seeder, harvester etc.;
6, all kinds of domestic agricultural machinery and equipment ‘s customization and sales, can install nameplate as custom’s request. Including Harvesters, tractors, transplanter, weeding machine, plant protection machinery etc.;
7, Russia MTZ, Romania UTB tractor’s full range of accessories sales;
8, We are as the overseas agent of Japan's mitsuboshi agricultural belt . including SC52 SC59 SC54 SB58 SB59 toothed belt, reliable quality and reasonable price;
9,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
For more please contact me via Skype:0086-13961932335 Whatsapp:0086-13961932335
