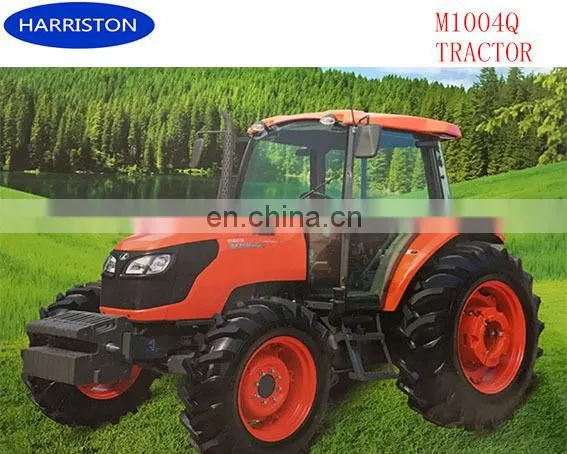

Kubota Tractor M1004Q For Farm Agriculture

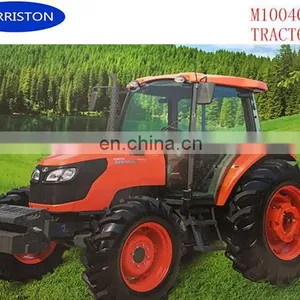

Kubota Tractor M1004Q For Farm Agriculture thumbnail-1
Kubota Tractor M1004Q For Farm Agriculture photo-1
US$ 150,000 - 180,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
kubota
Place of Origin:
Jiangsu, China
Model Number:
M1004Q
Contact Supplier Request Quote Chat Now
Yancheng Harriston Int\'l Co.,ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China main ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kubota
Place of Origin Jiangsu, China
Model Number M1004Q
Type Wheel Tractor
After-sales Service Provided No overseas service provided
Certificate CE
Usage Farm Tractor
Condition New
By wheel 4WD

Kubota Tractor M1004Q For Farm Agriculture

Product ModelUnitKUBOTA-M1004Q
MachineStructure type -4 wheel drive (4 × 4)
Dimensions

Length

 (front counterweight)

mm4200


Width

 (with post weight)

mm2130
 Height

Safety frame

 type

mm -


Cab

type

mm2670
TreadFront wheel mm1660
 Rear wheelmm1650,1730,1770,1850
Minimum ground clearancemm

 490Bracket

(suspension mechanism)

Minimum use of masskg3135
Turn round radiusNo side brakem4.2
 Unilateral brakem3.2
Number of stalls-12F + 12R (2 × 6)
Power output shaft powerkW64
EngineModel-V3800-DI-TI-ES02
Type-

Vertical water cooled 4 - cylinder

 turbocharged diesel engine

Number of cylinders-4
Calibration speed r/min2600
Calibration power (12h)kW74.6
Battery specifications-12V,RC:160min,CCA 900A
Fuel tank volumeL105

Walking

steering

brake

system

Tire SpecificationsFront Wheel -12.4-24
Rear wheel-16.9-34
Steering type-

Independent oil, full hydraulic

front wheel steering

Driving brakes-Hydraulic, wet, disc
Parking brake- Gear lock type, handle type

Transmission

 system

Clutch type-

 Single acting, hydraulic, wet,

multi-disc

Working

 equipment

Suspension Type-Ⅱ
Power output shaft type-Independent type
Power output shaft spline number-8
Power output shaft speedr/min520/720

The maximum lifting force at 610 mm

on the frame

Kn25.4
Traction device type-Pendulum rod
OptionCounterweight (front / rear)-front:10, rear:6
Hydraulic output valve-Group 2,Group 3
High flower of paddy field-9.5-24/16.9-30
 Working lamp -Rear work light (right side)

Kubota Tractor M1004Q For Farm Agriculture
 Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural   machinery, construction machinery, engine and all kinds of accessories:

1, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:

     2, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;

     3,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.

Kubota Tractor M1004Q For Farm Agriculture

For more please contact me via Skype:0086-13961932335 Whatsapp:0086-13961932335
