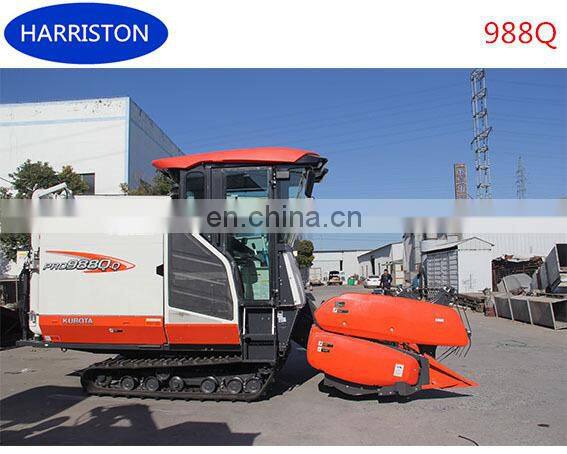

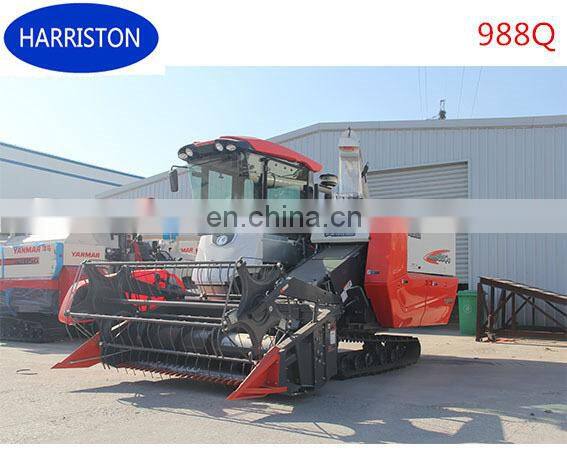

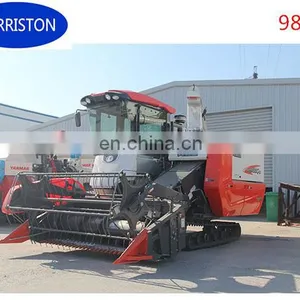

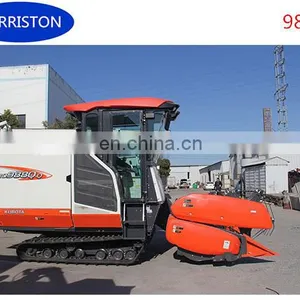

Help Center988Q Kubota Rice Combine Harvester Machine
Related Products
-
Kubotian DC60 400 * 90 *47 High Quality CrawlerUS$ 5 - 50MOQ: 100 Pieces -
High Quality Mitsuboshi Belt LC79 For Kubota HarvesterUS$ 10 - 20MOQ: 3 Pieces
-
Kubota Original V Belt LC100 For Combine HarvesterUS$ 8 - 10MOQ: 3 Pieces
-
Kubota Tractor M704KQ For Farm AgricultureUS$ 19,000 - 20,000MOQ: 1 Piece
-
Kubota Tractor M854KQ For Farm AgricultureUS$ 24,000 - 25,000MOQ: 1 Piece
| 4LZ-4(PRO988Q) | |||
| Project | Specification | ||
| Product number | 4LZ-4(PRO988Q) | ||
| Classification | No cab | ||
| Dimensions | Length (mm) (transport status / working status) | 5570/5730 | |
| Width (mm) (transport status / working status) | 2650/2730 | ||
| Height (mm) (transport status / working status) | 2710/2940 | ||
| Structure quality (kg) / quality of use (kg) | 3670/3890 | ||
| Matching engine | Model (China second stage) | V3800-DI-T-ET02 | |
| Structure type | Vertical water cooled 4 - cylinder turbocharged diesel engine | ||
| Total Displacement (L) | 3.769 | ||
| Calibration power (kW) | 72.9 | ||
| Calibration speed (r / min) | 2600 | ||
| Fuel | High quality diesel (0 #) | ||
| Fuel tank capacity (L) | 140 | ||
| Walking part | Crawler | Grounding length(mm) | 1890 |
| Width(mm) | 500 | ||
| Ground pressure(kPa) | 19 | ||
| Gearbox type | Mechanical speed change + hydraulic stepless speed change (HST) | ||
| Variable speed series | Forward stepless·Back stealth Vice shift of the three gears | ||
Minimum ground clearance (mm) | 290 | ||

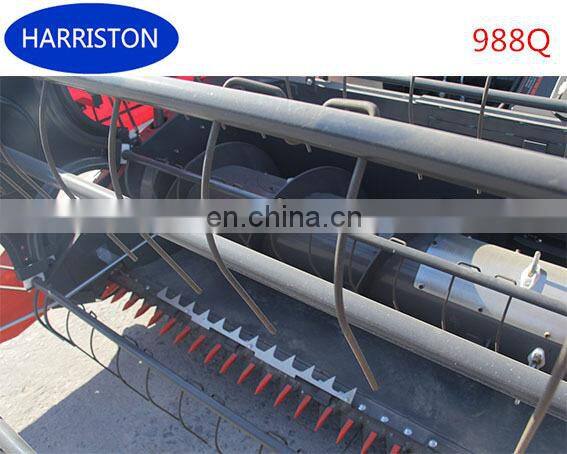

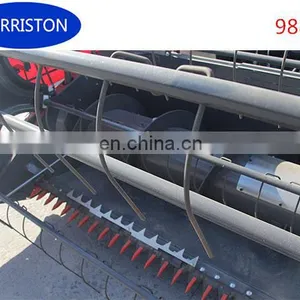

| Cutting table | Cutting table width (mm) | 2300 | |
| Minimum cutting height (mm) | 40 (cutter tip) | ||
| Adapt to crops | Rice, wheat | ||
| Feed (kg / s) | 4 | ||
| Threshing part | Threshing method | Sprue axial flow | |
| Threshing drum | Size(mm)(outer diameter×length) | Φ620 × 2210 | |
| Screening method | Vibrating screen, wind selection (3 air separation) | ||
Grain processing department | Way of food | Automatic unloading (auger conveyor) | |
| Granary capacity (L) | 1400 | ||
| Unloading grain | Unloading mouth rotation range (degrees), rotation mode | 255 (left rotation), electric motor | |
Unloading grain mouth lift range (degrees),lifting mode | 0 (horizontal) ~ 47.6, hydraulic type | ||
Unloading grain unloading height range (mm) (working state) | 2290 ~ 4955 | ||
Unloading mouth out of the distance range (mm) (working state) | 2560 ~ 3580 | ||
| Alarm system | Water temperature, charge, oil, gluten full, 2 snuff plug, reverse fan | ||
| Operating hours productivity (hm² / h) | wheat: 0.4 ~ 0.64 rice: 0.3 ~ 0.5 | ||
Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:
1, all independent and non independent refrigeration unit sales, installation, training and customer service service for 9.6meters van truck. Supplying front, top and chassis types to meet the needs of various types of vehicles;
2, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
3, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
4, Cummings full range of engine accessories ‘sales and service, with the East, north, Kang Kang Kang, Xikang and Meikang models;
5, various types of farm implements’ sales and service, including rotary machine, strapping machine, mixing machine, grinder, disc plough, glass mower, seeder, harvester etc.;
6, all kinds of domestic agricultural machinery and equipment ‘s customization and sales, can install nameplate as custom’s request. Including Harvesters, tractors, transplanter, weeding machine, plant protection machinery etc.;
7, Russia MTZ, Romania UTB tractor’s full range of accessories sales;
8, We are as the overseas agent of Japan's mitsuboshi agricultural belt . including SC52 SC59 SC54 SB58 SB59 toothed belt, reliable quality and reasonable price;
9,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
For more please contact me via Skype:0086-13961932335 Whatsapp:0086-13961932335
