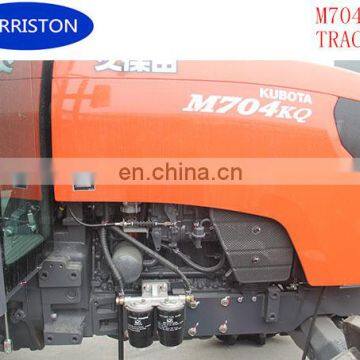

Kubota Tractor M704KQ For Farm Agriculture
| Product Model | Unit | KUBOTA-M704KQ | |||
| Machine | Structure type | 4 wheel drive (4 × 4) | |||
| Dimensions |
Length (front counterweight) |
mm | 4110 | ||
|
Width (with post weight) |
mm | 1950 | |||
| Height |
Safety frame type |
mm | - | ||
|
Cab type |
mm | 2560 | |||
| Tread | Front wheel | mm | 1520 | ||
| Rear wheel | mm | 1520,1620,1720 | |||
| Wheelbase | mm | 2150 | |||
| Minimum ground clearance | mm | 490 (bottom of front axle) | |||
| Minimum use of mass | kg | 2620 | |||
|
Turn round radius |
No side brake | m | 4.2 | ||
| Unilateral brake | m | 3.3 | |||
| Number of stalls | 8F + 8R (2 × 4) | ||||
| Power output shaft power | kW | 45.6 | |||
| Engine | Model | V3800-DI-T-ET19 | |||
| Type |
Vertical water cooled 4 - cylinder turbocharged diesel engine |
||||
| Number of cylinders | 4 | ||||
| Calibration speed | r/min | 2500 | |||
| Calibration power (12h) | kW | 53.6 | |||
| Battery specifications | 12V,RC:160min,CCA 900A | ||||
| Fuel tank volume | L | 85 | |||
|
Walking steering brake system |
Tire Specifications |
Front Wheel | 9.5-24 | ||
| Rear wheel | 16.9-30 | ||||
| Steering type |
Independent oil, full hydraulic front wheel steering |
||||
| Driving brakes | Mechanical, wet, disc type | ||||
| Parking brake | Pedal lock type, handle type | ||||
|
Transmission system |
Clutch type | Single acting, dry, single plate | |||
|
Working equipment |
Suspension Type | Ⅱ | |||
|
The maximum lifting force at 610 mm on the frame |
Kn | 12.9 | |||
| Traction device type | Bracket type (height adjustable) | ||||
| Power output | Type | Independence, 8 splines | |||
| Speed | r / min | 540r/720min | |||
| Option | Hydraulic output valve | Group 2 | |||
| High flower of paddy field | 8.3-24 / 14.9-30 | ||||
| Awning | - | ||||
Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:
1, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
2, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
3,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
For more please contact me via Skype:0086-13961932335 Whatsapp:0086-13961932335
