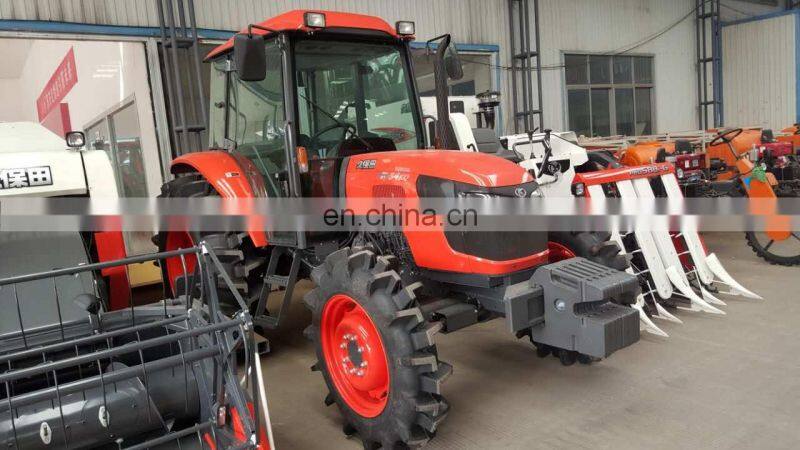

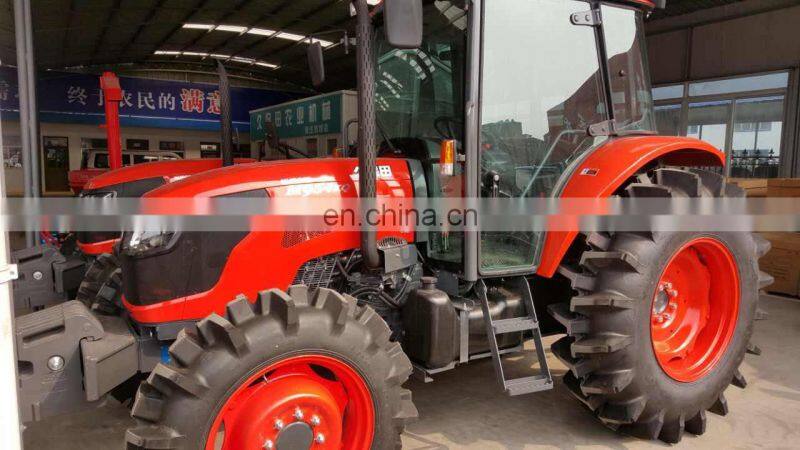

High Quality Kubota Tractor M954
PRODUCT INFORMATION
| Product Model | Unit | KUBOTA-M954K | KUBOTA-M954KQ | ||||
| Fan type | Air conditioning type | ||||||
| Machine | Structure type | 4 wheel drive (4 × 4) | 4 wheel drive (4 × 4) | ||||
| Dimensions | Length (front counterweight) | mm | 4445 | 4445 | |||
| Width (with post weight) | mm | 2215 | 2215 | ||||
| Height | Safety frame type | mm | 2620 | - | |||
| Cab type | mm | - | 2620 | 2695 | |||
| Tread | Front wheel | mm | 1660,1760 | 1660,1760 | |||
| Rear wheel | mm | 1600,1620,1720 | 1600,1720,1800,1920 | ||||
| Wheelbase | mm | 2350 | 2350 | ||||
| Minimum ground clearance | mm | 500[Bracket (suspension mechanism)] | 500[Bracket (suspension mechanism)] | ||||
| Minimum use of mass | kg | 3045 | 3245 | 3270 | |||
| Turn round radius | No side brake | m | 4.5 | 4.5 | |||
| Unilateral brake | m | 3.5 | 3.5 | ||||
| Number of stalls | 12F+12R(2×6) | 12F + 12R (2 × 6) | |||||
| Power output shaft power | kW | 60.2 | 60.2 | ||||
| Engine | Model | V3800-DI-T-ET21 | V3800-DI-T-ET20 | ||||
| Type | Vertical water cooled 4 - cylinder turbocharged diesel engine | Vertical water cooled 4 - cylinder turbocharged diesel engine | |||||
| Number of cylinders | 4 | 4 | |||||
| Calibration speed | r/min | 2600 | 2600 | ||||
| Calibration power (12h) | kW | 70.8 | 70.8 | ||||
| Battery specifications | 12V,RC:160min,CCA 900A | 12V,RC:160min,CCA 900A | |||||
| Fuel tank volume | L | 105 | 105 | ||||
| Walking steering brake system | Tire Specifications | Front Wheel | 12.4-24 | 12.4-24 | |||
| Rear wheel | 16.9-34 | 16.9-34 | |||||
| Steering type | Independent oil, full hydraulic front wheel steering | Independent oil, full hydraulic front wheel steering | |||||
| Driving brakes | Mechanical, wet, disc type | Mechanical, wet, disc type | |||||
| Parking brake | Pedal lock type, handle type | Pedal lock type, handle type | |||||
| Transmission system | Clutch type | Single acting, dry, single plate | Single acting, dry, single plate | ||||
| Working equipment | Suspension Type | Ⅱ | Ⅱ | ||||
| The maximum lifting force at 610 mm on the frame | Kn | 18 | 18 | ||||
| Traction device type | Bracket type (height adjustable) / traction rod type (optional) | Bracket type (height adjustable) / traction rod type (optional) | |||||
| Power output | Type | Independence, 8 splines | Independence, 8 splines | ||||
| Speed | r / min | 540/720 | 540/720 | ||||
| Option | Hydraulic output valve | Group 2,Group 3 | Group 2,Group 3 | ||||
| High flower of paddy field | 9.5-24/16.9-30 | 9.5-24/16.9-30 | |||||
Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:
1, all independent and non independent refrigeration unit sales, installation, training and customer service service for 9.6meters van truck. Supplying front, top and chassis types to meet the needs of various types of vehicles;
2, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
3, various types of farm implements’ sales and service, including rotary machine, strapping machine, mixing machine, grinder, disc plough, glass mower, seeder, harvester etc.;
4, all kinds of domestic agricultural machinery and equipment ‘s customization and sales, can install nameplate as custom’s request. Including Harvesters, tractors, transplanter, weeding machine, plant protection machinery etc.;
5, Russia MTZ, Romania UTB tractor’s full range of accessories sales;
6, We are as the overseas agent of Japan's mitsuboshi agricultural belt . including SC52 SC59 SC54 SB58 SB59 toothed belt, reliable quality and reasonable price;
7,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
