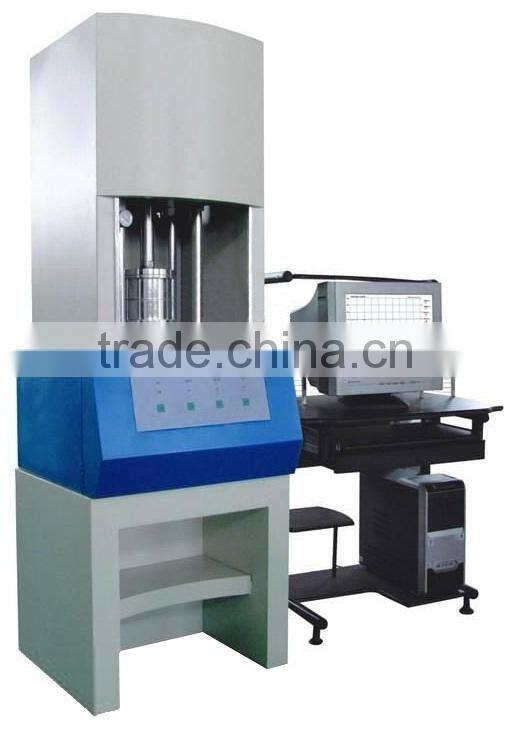

HST-6019 Rotational rheometers for measuring viscosity and viscoelasticity.
Contact : Sunny Tel/whatsapp:+86-15866777590
Application:
The machine is applied to determine the characteristics of vulcanized rubber,widely used in rubber processing industry, rubber quality control and basic research rubber.
Features:
1. This non rotor rheometer is really confined mold cavity, and the United States Alpha (formerly Monsanto) has done. Repeatability, and test data comparable with the Alpha. At the international leading position in the same industry.
2.The non rotor rheometer development platform based on large databases, temperature control devices using the software to directly control and collection and processing. Instrument to overcome the general curing temperature of the shortcomings of using temperature controller (accuracy poor).
3. This instrument has statistics, analysis, storage and comparison functions. Humanized design, easy to operate
4.Have the function of comparison and amplification carve
5.Computer controlled,application WINDOWS series operating system platform.
Corresponding standards:
Accord with GB/T16584"rubber-no rotor rheometer to measure the characteristics of vulcanized"ISO6502
Technical parameters:
Model | HST-6019 |
Temperature | room temperature to 200 Centigrade |
Heating rate | in 10 minutes from room temperature to 200°C |
Temperature fluctuation | ±0.1°C |
Temperature resolution | 0.1°C |
Time setting | 2-120min |
Torque range | 5N.M-10N.M |
Rotor swing angle | ±0.5 |
Consumed power | 800W |
Power | 50HZ, 220V±10% |
Out size | 640mm×580mm×1300mm |
Weight | 210kg |

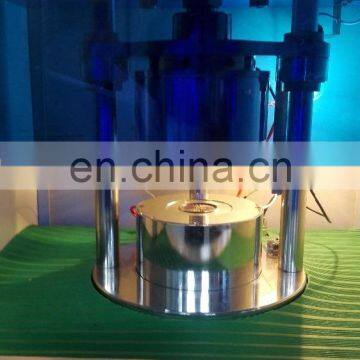

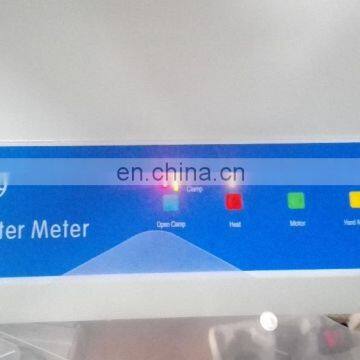

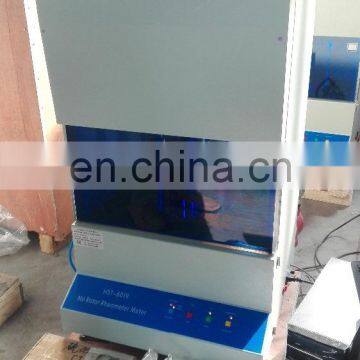

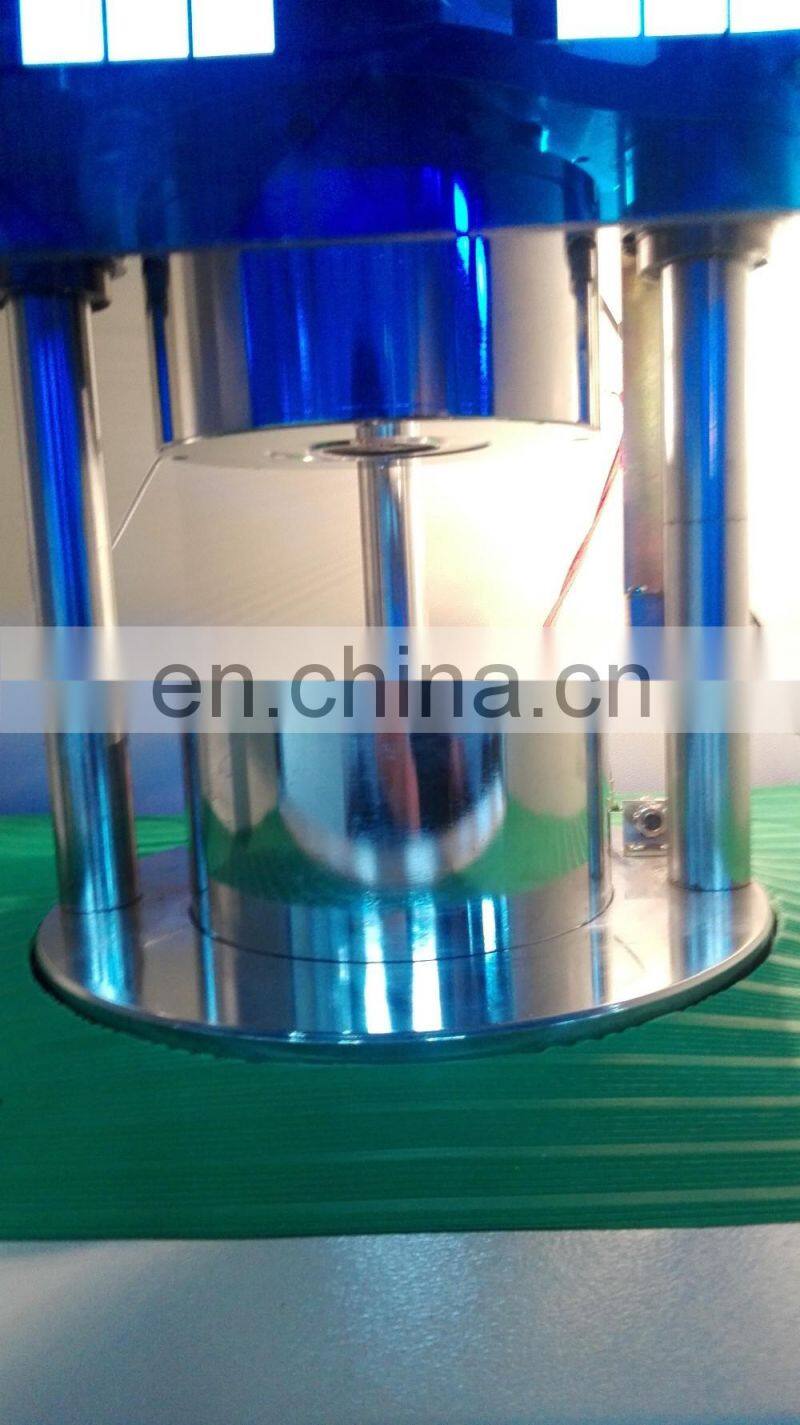

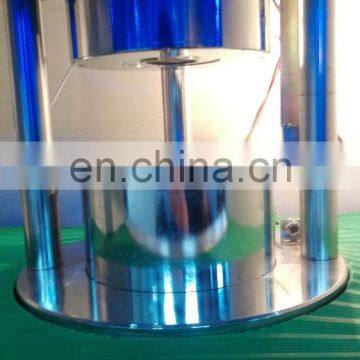

Detailed pictures:

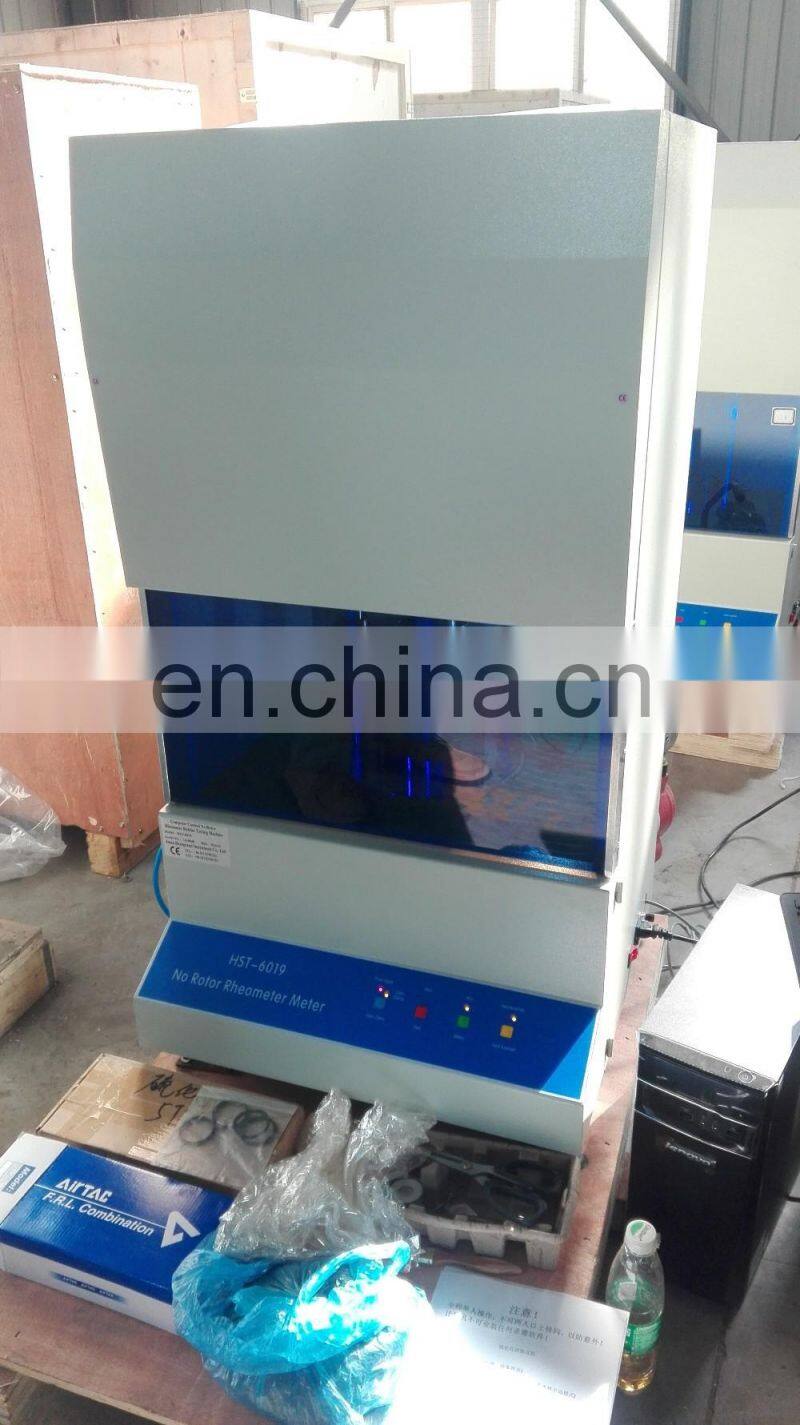

HST-6019 Rotational rheometers for measuring viscosity and viscoelasticity.
HST-6019 Rotational rheometers for measuring viscosity and viscoelasticity.
