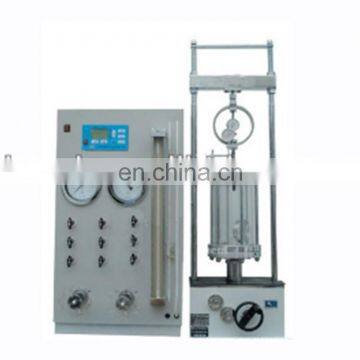

Soil Triaxial Test Machine, Soil Laboratory Testing Equipment
Application:
The Apparatus is used to determine the resisting shear strength of the soil specimen with maximum confining pressure of 2.0MPa and specimen dimension is of Φ61.8x125mm,Φ101x200mm. The apparatus can perform unconsolidated-undrained shear test (UU),consolidated-undrained shear test (CU), and consolidated-drained (CD) shear test. It consists of frame, test control device,pressure chamber and specimen tools etc.
Technical Parameters:
Specimen: |
Φ39.1mm x 80mm,Φ61.8mm x 125mm,Φ101mm x 200mm |
Capacity: |
60KN |
Strain rate: |
0.0024-4.5mm/min. mechanical speed with 16 gears |
Platen travel: |
0-100mm |
Confining pressure:(σ3) |
0-2MPa Digital control and display |
Back pressure:(σb) |
0-1MPa Digital control and display |
Pore pressure:(u) |
0-2MPa |
Volume deformation: |
0-100ml,minimum resolution:0.1ml |
Power supply: |
220V±10% 50Hz |
Weight: |
240Kg (including main unit,controller,measuring,equipment etc.) |
Strain Control Soil Triaxial Test Machine, Soil Lab Testing Equipment
CE Certificate:
