STSJ-5A Digital Soil Direct Shear Testing Machine,Tetragenous Direct Shear Testing Apparatus
US$ 2,000 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST or OEM
Place of Origin:
Shandong, China
Model Number:
STSJ-5A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HS-7049 O Type Ring Trimming MachineUS$ 4,000 - 7,000MOQ: 1 Set -
XNR-400C Computer Control Plastic Melt Flow Index Tester+plastic Melting Point TesterUS$ 1,000 - 4,000MOQ: 1 Set
-
Automatic Dumbbell Die Cutter, Rubber Sample Making MachineUS$ 500 - 1,500MOQ: 1 Set
-
HST-6009 Akron Rubber Abrasion Testing Machine/rubber TesterUS$ 500 - 5,000MOQ: 1 Set
-
Direct Shear Apparatus/Soil Lab Testing EquipmentUS$ 1,000 - 10,000MOQ: 1 Set
Brand Name
HST or OEM
Place of Origin
Shandong, China
Model Number
STSJ-5A
Power
Electronic
Product Description

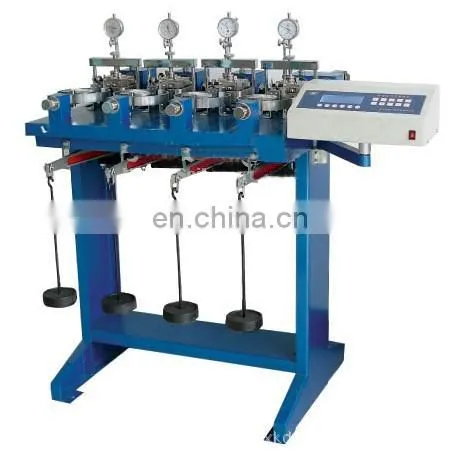

STSJ-5A Intelligent Electric Tetragenous Direct Shear Testing Apparatus
1. To test the shearing resistance of soil specimens with optional speed.
2. patent product, approved on the provincal level
3. Manufacturing License for China industrial products(xk07-003-0014)
1. Application:
The apparatus is a kind of strain controlled direct shear apparatus used to test the shearing resistance of soil specimen.
It carries on shearing test by using four specimens in different vertical pressure, to work out the final shearing force as a result when the specimen is broken. According to Coulomb’s law to determine the shearing resistance coefficient, internal fictional angle and cohesion of the soil
Convenient operation, stable shearing rate.
It also has a limit device to protect the apparatus.
2. Characteristic:
- Stainless steel working table with stepper motor
- High precision, low noisy
- Single-chip computer control
- Speed can be set and displayed as required
- Convenient operation
- ABS vertical control cabinet
3. Technical Parameter:
- Max.vertical loading capacity: 400Kpa
- Pressure grading: 50Kpa, 100Kpa, 200Kpa, 400Kpa
- Lever ratio: 1:12
- Shear box: 4 units
- Shear specimen: 30 cm2 Height: 2cm
- Max.horizontal shearing force: 1.2KN
- Speed of the pushing shaft: 5mm/min, 2.4mm.min, 1.5mm/min, 0.8mm/min, 0.02mm/min, 0.01mm/min (Speed can be adjusted freely according to requirement).
- Power: AC220V, 50Hz
4. Components:
- Weights
- MF lever
- Latch hook
- Top
- Binging nut
- Estimate collar bearing
- Protective frame of the estimate collar bearing
- upper top
- container
- hangwheel
- pushing rod
- lever tracking assembly
- limit switch
- balance hammer
5. Full Packages:
- Main frame: 1 unit
- Shear box: 4 sets
- Weights: 1.275 Latch hook: 4units / 1.275 Weights: 4 unis / 2.55 Weights: 12units
- Steel balls 10mm: 52units
- Chute board: 8 units
- Porous stome: 61.8 12:4 units / 61.8 10:4 units
- Cutting ring 61.8 20:4units
- Balance hammer: 4units
- Estimate collar bearing 1.2KN: 4 units
- Manual: 1 piece
- Certificate: 1 piece
- Dial gauge: 5units (prepared by user)
