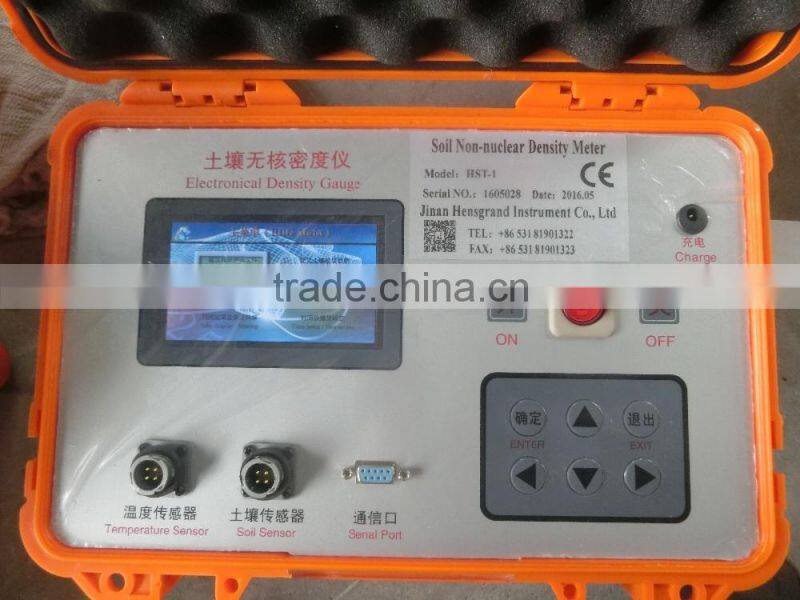

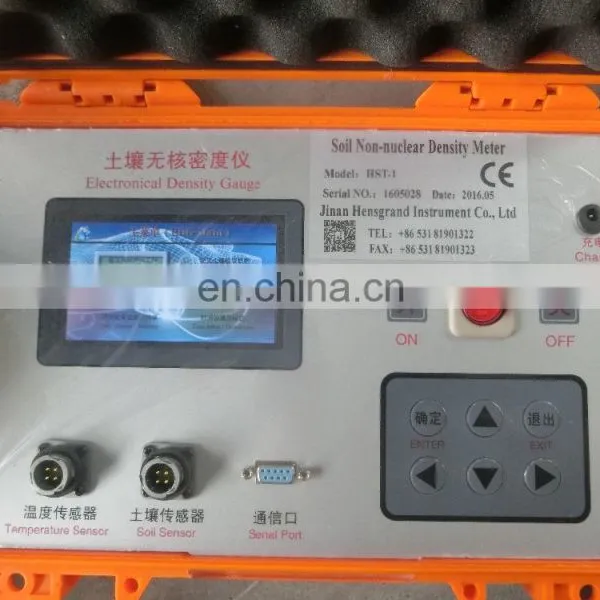

HST-2 Soil Non-nuclear Density Gauge
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
Equipment description:
Soil non-nuclear density gauge is used to measure road foundation soil to get the soil humidity, density and compactedness. This machine operate simply , easy to carry, fast and accurate.
Operating principle:
Soil non-nuclear density gauhe through between the high frequency radio electrode to measure soil compaction material dielectric properties and density. After that, using mathematical algorithms to calculate wet/dry density moisture content, and the percentage of the enclosed the compaction temperature detector can also increase the accuracy of the measurement.
Scope of application:
The density of compaction materials humidity; Buildings carry and filler; underpass, basement and foundation; Backfill the ditch;rubbish.
Features:
- Ø It can instead of a nuclear density, measurement method, sand filling method, as well as drying, absolute non-nuclear source.
- Ø No longer need all kinds of nuclear instruments license.
- Ø Operator does not need special training/certificate and radiation monitoring.
- Ø Transportation and storage requires no special requirements.
- Ø Good interface easy to use, convenient cost-effective, suitable for every researchers used in the group, fast, reliable, deft, firm, accurate and repeatability good real-time readings.
- Ø Using high quality reliable point to point RF technology to ensure signal accurate and reliable;
- Ø 2-3 minutes display measured results.
- Ø English user interface can easily switch
Usage: Soil Non-nuclear Density Gauge
In the wild, according to template a hammer to taper electrode or standard block like a cross into soil. In the two tapered standard piece between the bottom four point-to-point measure and average the electrical characteristics process. Users can choose the metric system of SI units or imperial units show density and humidity value. Javelin insert depth affect the measurement measure directly. In addition, the standard of the taper also affect every hammering and soil in is contact. This machine’s screen can show menus procedures and save measurement results.
Technical parameters: Soil Non-nuclear Density Gauge
Humidity range: standard compaction soil field range.
Dry density precision:≤3%
Wet volume range:standard compaction soil field range.
Humidity accuracy:≤2%
Operating temperature:-10-50℃
Operating humidity:<90%
Power: Internal lithium batteries, outernal 220V AC/DC
Battery capacity:Full charge available about 8 hours.
Main unit Size: 210×149×60mm
Main unit Net weight: 1.25including the internal lithium battery
Soil Non-nuclear Density Gauge
