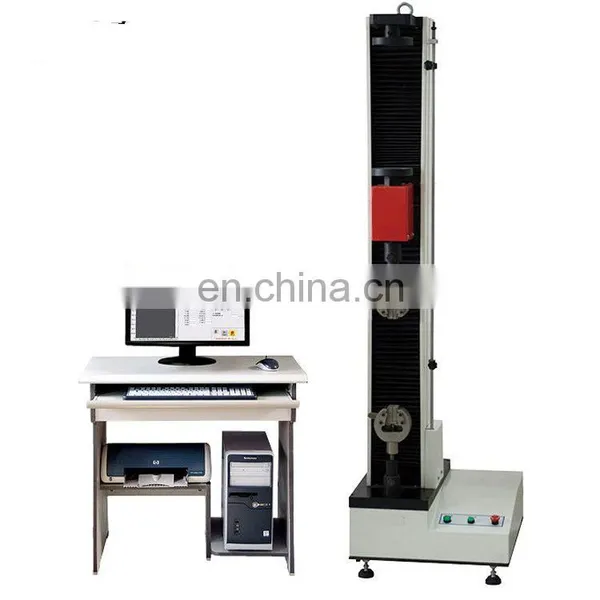

TLW Series Computer Control Spring Tensile Compression Testing Machine/Single Column
1.Application:
This machine mainly used for tension spring,compression spring,saucer reed,tower spring,leaf spring,clip
spring,flat spring,composite spring,gas spring,mould spring,deformed spring and other precision spring
tensile, compression, displacement and rigidity test and analysis.
2.Technical Parameter:
Model | TLW-100 | TLW-200 | TLW-500 | TLW-1000 | TLW-2000 |
Max Testing Force | 100 N | 200 N | 500 N | 1000 N | 2000 N |
Tester Level | 1 Class(0.5 Class Optional) | ||||
Testing Range | 2%-100% FS | ||||
Min. Resolution Of Displacement | 0.01mm | ||||
Tensile Test Distance Between Two Pressure Plate | 750mm | ||||
Compression Test Distance Between Two Pressure Plate | 700mm | ||||
Pressure Plate Diameter | Ø100mm | Ø100mm | Ø100mm | Ø100mm | Ø100mm |
Speed | 0.05mm/min~500mm/min(Arbitrary Set ) | ||||
Accuracy | ±1% | ||||
Deformation Indicate Error | ≤±(50+0.15L) | ||||
Power Supply | 220V/50Hz | ||||
3.Main Features:
3.1.Load display mode: Digital display, with indication functions at upper & lower limit.
3.2.Displacement display mode:Staff gauge & vernier indication,with micro-adjusting function.
3.3.Loading mode: Manual loading, quick and convenient, displacement control through positioning devices.
3.4.Overload protection: Digital cell glittering in case of over test load.
(auto stop in case of mechanically overload).
4.Configuration:
1.Host Machine | 1 Set |
2.Transmission (Gear Rack) | 1 Suit |
3.High Precision Weighing Transducer | 1 Piece |
4.High Precision Displacement Sensor | 1 Piece |
5.Digital Display Table | 1 Suit |
6.Printer | 1 Set |
7.Tensile Attachment | 1 Suit |
8.Compression Attachment | 1 Suit |
9.Instruction Book | 1 Piece |
10.Certification | 1 Piece |
11.Packaging List | 1 Piece |
12.Guarantee Book | 1 Piece |

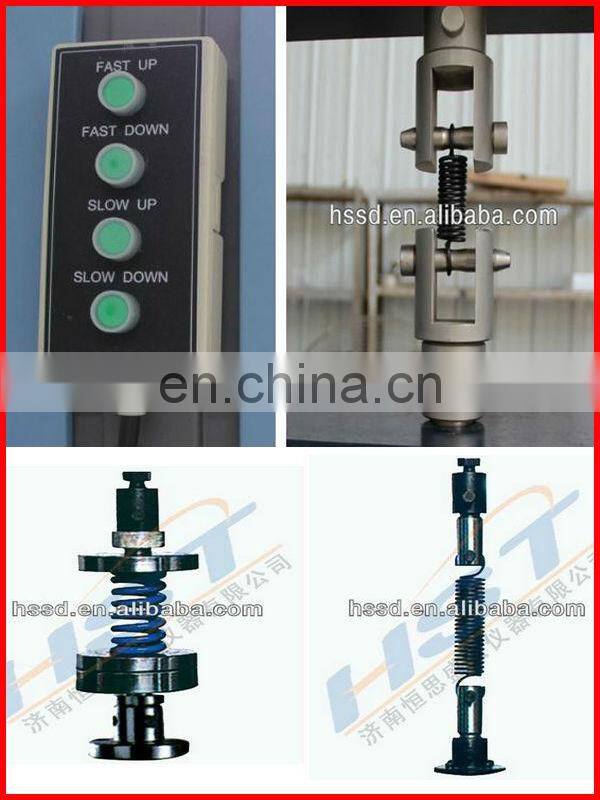

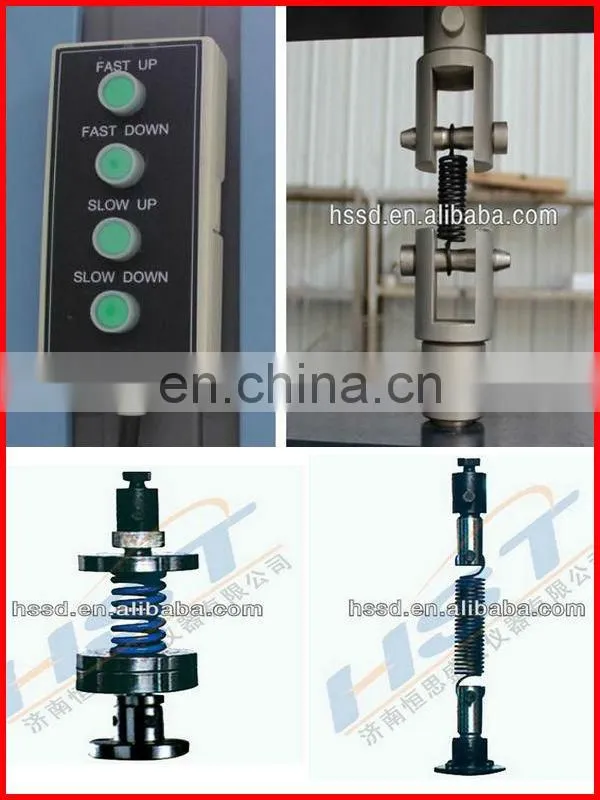

5.Pictures Of Spring Tensile Compression Tester:
6.The Packing Way Of Our Export Machines:
7.The Realistic Pictures Of Our Factory:
8.Our CE Certificate:
9.Our company can also produce the customized testing machines as clients' requirements.
Best service and the best price for you.
You can contact me in any time as the below information.
