2020 HVS-1000Z Micro Digital Display Brinell Hardness Tester

2020 HVS-1000Z Micro Digital Display Brinell Hardness Tester photo-1
2020 HVS-1000Z Micro Digital Display Brinell Hardness Tester photo-2

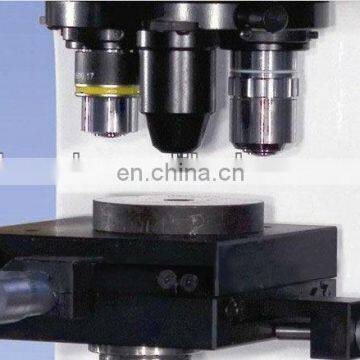

2020 HVS-1000Z Micro Digital Display Brinell Hardness Tester photo-3

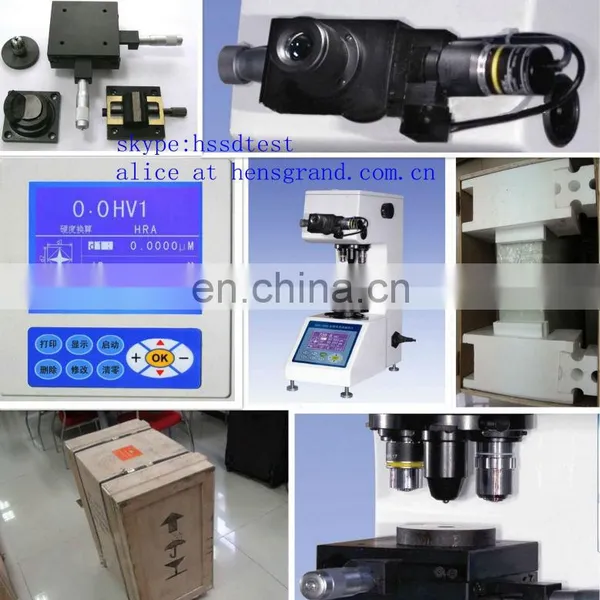

2020 HVS-1000Z Micro Digital Display Brinell Hardness Tester photo-4

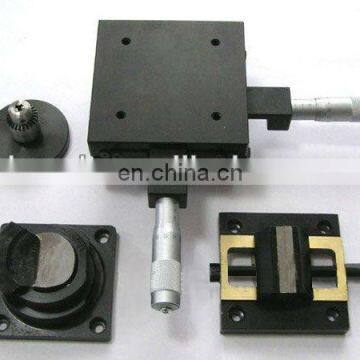

2020 HVS-1000Z Micro Digital Display Brinell Hardness Tester photo-5
2020 HVS-1000Z Micro Digital Display Brinell Hardness Tester photo-6
US$ 2,399 - 2,400 MOQ: 2 Sets
Key Specifications
Get Latest Price
Brand Name:
hensgrand HST
Place of Origin:
Shandong, China
Model Number:
HVS-1000Z
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name hensgrand HST
Place of Origin Shandong, China
Model Number HVS-1000Z

Digital Micro Hardness Tester HVS-1000Z(Auto-Turret)



It has a more faster testing speed2020 HVS-1000Z  micro Digital Display Brinell Hardness Tester than other ordinary Micro hardness tester. The hardness value can be displayed directly and not need to enter the length of the diagonal. High quality imported components ensure the instrument can stable working for a very long time; Protected by the state patent application of the lift & down system, after upgrading, the control system can provide more measuring data, and control more precise.

Main function and features:

1. Equipped with digital eyepiece and Data computing systems which accuracy can reach to 0.01um; Just click one button the hardness value will display on screen directly .

2. The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.

3. According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.

4. With Vickers hardness and Knoop hardness testing capabilities, and testing force can be extended to 2KG (HV2). Automatic measuring the indentation diagonal length, the hardness and conversion hardness will show on the screen directly, no need to check hardness table.

5. Industrial digital screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, test number and testing process; The built-in printer can print testing times, hardness value, average value, Max. Value, Min. Value, Xmax-Xmin directly,  easy for operator to save the data.

6. Equipped with data transfer software, all the testing data can be transfer to computer via RS232 port, then can edit and save the data on computer.

7. Reserved image channel, can be connected with computer, used the image analysis software to analyzing the physical and chemical properties of the material (for optional purchase).

8. Factory directly supply, we have products develop &design & produce ability, all the parts provide life-time replacement and maintenance service.
