TH 130 Handheld Leeb Hardness Tester
1.Features:
♦ Impact size, easy operation.
♦ Wide measuring range in HLD, direct display of converted hardness values in HB, HRB,HRC,HRA, HV, HS
♦ High applicability, can be used for hardness testing of most metals.
♦ Test at any angle even upside down.
♦ Optional printer TA230 available
♦ Easy measurements on large & heavy workpieces
♦ Measuring for confined spaces of large workpieces
♦ TH130: integrated with D impact device for normal hardness testing
2.Technical parameters:
Model |
TH130 |
Impact device |
D integrated |
Hardness scales |
HLD, HB, HRC, HRA, HV, HS |
Accuracy |
±6HLD(760 ±30HLD) |
Memory |
99 average readings |
Output |
RS232 to printer |
Average Surface Roughness of Work piece |
1.6μ ( Ra) |
Max. Work piece Hardness |
900HLD |
Min. radius of Work piece (convex/concave) |
Rmin = 50mm |
Min. Work piece weight |
2~5kg on stable support |
Min. Work piece thickness coupled |
5mm |
Min. Thickness of hardened layers |
0.8mm |
Indentation depth |
Impact Devices data |
Continuous working time |
60 h |
Power |
Rechargeable Li-Polymer batteries |
Operating temperature |
0~40°C |
Overall dimensions |
155×24×55mm |
Weight |
180 g |
3.Standard Configurations
1. Main unit
2. Test block with HLD value
3. Charger
4. Cleaning brush
5. Protection pocket
6. Accompany documents
Hand-Held Leeb Hardness Tester

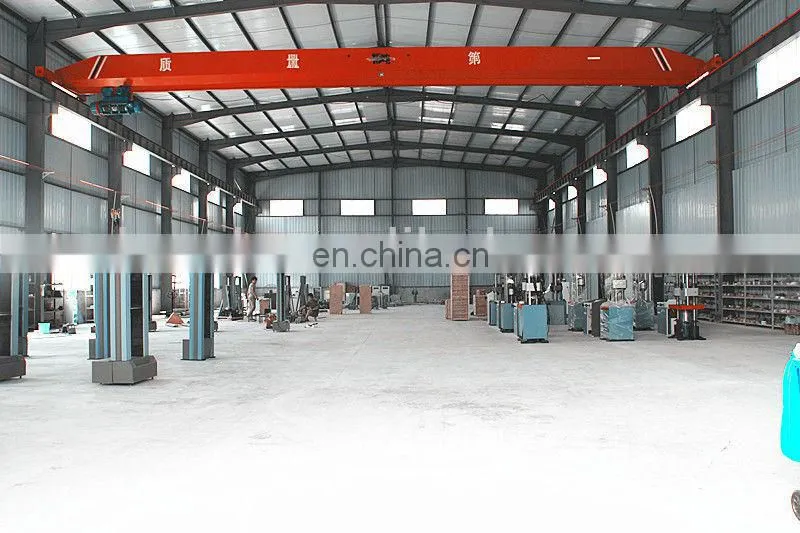

Factory Show
CE Certificate
