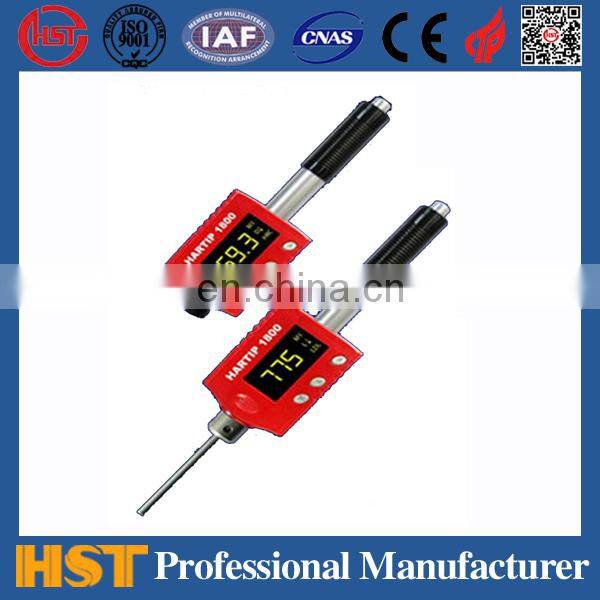

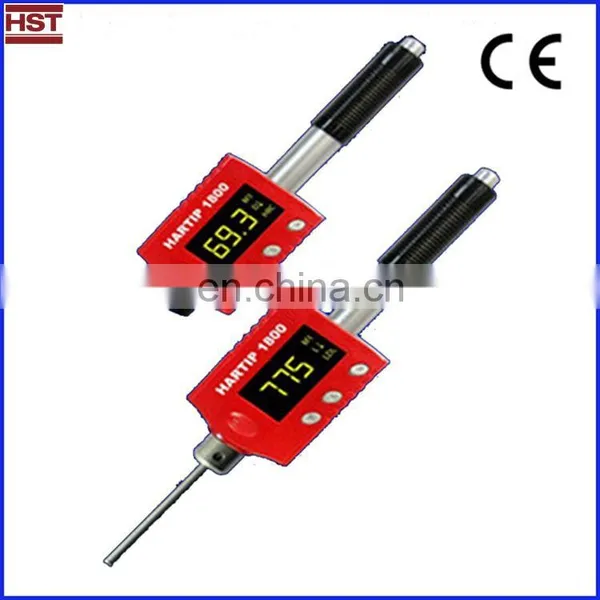

Digital Portable Hardness Tester HARTIP 1800 Leeb hardness measurement
HARTIP1800 pen type hardness tester is an advanced state-of-the-art palm sized metal hardness tester with many new features. Which is light weight, easy operation, integrated design, high contrast display, low operating temperature, auto compensating for impact direction and etc. HARTIP 1800 can be widely used for measuring hardness of almost all ferrous and non-ferrous metal materials for scale of Leeb hardness, Rockwell C & B, Brinell, Vickers, Shore and Strength. HARTIP 1800 has a memory capacity of 400 blocks and 360,000 data which can be download to computer via USB. The 3.7V Li-ion rechargeable battery inside HARTIP 1800 can be charged via USB from PC or via individual battery charger from mains wall power. With data software for PC, customers can download measuring values from HARTIP 1800 to PC and make process such as save, delete, create testing report and export them to Excel.
Specifications
| Model | HARTIP1800 |
| Principle | Leeb hardness measurement |
| Accuracy | +/-2HL(0.5%@HL=800) |
| Display | digital with high contrast LED |
| Impact direction | It can recognize impact direction automatically |
| Hardness scale | HL/HRC/HRB/HB/HV/HS/σb |
Measruing range | HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 |
| Impact device | D (Internal) D/DL 2-in-1 (Internal, optional) |
| Materials | 9 common metal materials |
| Memory | 360,000 data in 400 blocks |
| Statistics function | Average / Max. / Min. / value |
| Recalibration | Allowed by user |
| Interface | USB for data transferring to PC and charging battery |
| Indicator | Low battery |
| Power on/off | Auto |
| Power supply | 3.7v Li-ion rechargeable battery |
| Working environment | -40~+80°C |
| Standard | ASTM A956 |
| Dimension (mm) | 148x44x22 |
| Net weight (g) | 110 |
Key Features
1.Palm sized and easy operation
2.High contrast OLED display
3.Wide operating temperature:-40°C~+60°C
4.Auto switch on & off
5.It can recognize impact direction automatically
6.Duplex readings on display: HLD value and correspond scale
7.Large digits and more readings alternatively
8.Four display orientations
9.Vast memory capacity: 400K data can be saved
10.USB/RS232 interface
11.Micro-printer can be used on site
12.Recalibration allowed by user
13.Liner compensate for angle measurement
14.LI-ion rechargeable battery charged by USB port or mains power
15.Statics value calculated automatically
