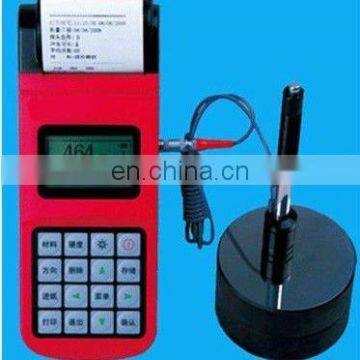

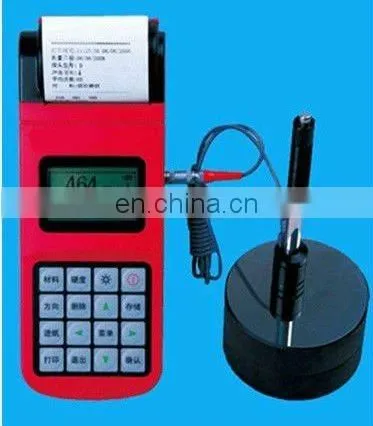

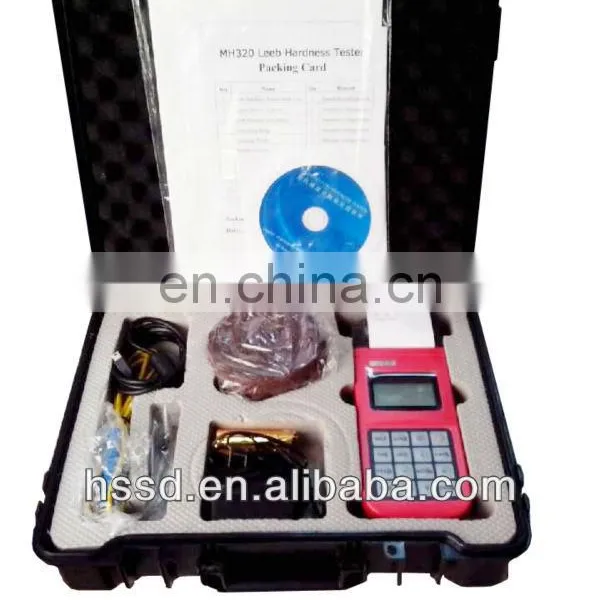

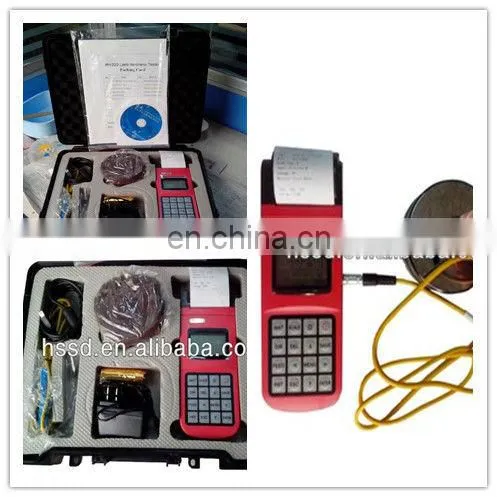

MH320 Portable Metal Leeb Hardness Tester
Application:
Die cavity of molds
Bearings and other parts
Failure analysis of pressure vessel, steam generator and other equipment
Heavy work piece
The installed machinery and permanently assembled parts
Testing surface of a small hollow space
Material identification in the warehouse of metallic materials
Rapid testing in large range and multi-measuring areas for large-scale work piece
Features:
Wide measuring range. Based on the principle of Leeb hardness testing theory. It can measure the Leeb hardness of all metallic materials.
Large screen LCD, showing all functions and parameters. With EL background light.
Seven impact devices are available for special application. Automatically identify the type of impact devices.
Test at any angle, even upside down.
Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.
Large memory could store 100 groups (Relative to average times 32~1 ) information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.
Battery information showing the rest capacity of the battery and the charge status.
User calibration function.
Software to connect to PC via USB port.
Thermal printer integrated, convenient for in field printing.
NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).
Auto power off to save energy.
Outline dimensions:212mm×80mm×32mm
Specification:
Measuring range:HLD170~960 HLD
Measuring direction :360°
Hardness Scale: HL HB HRB HRC HRA HV HS
Display segment :LCD
Data memory :100 groups max. relative to impact times 32~1
Printing paper: width is 57.5±0.5 mm, diameter is 30mm
Battery pack: 6V NI-MH
Battery charger: 9V/500mA
Continuous working period about 150 hours With backlight off, no printing
Communication interface USB1.1
Outline dimensions 212mm×80mm×32mm
