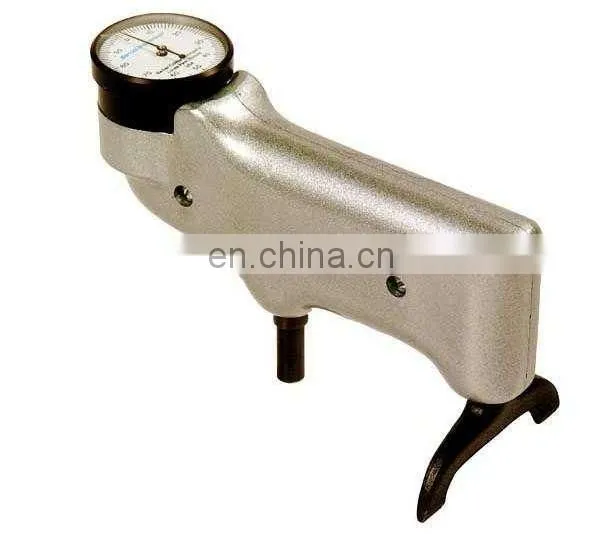

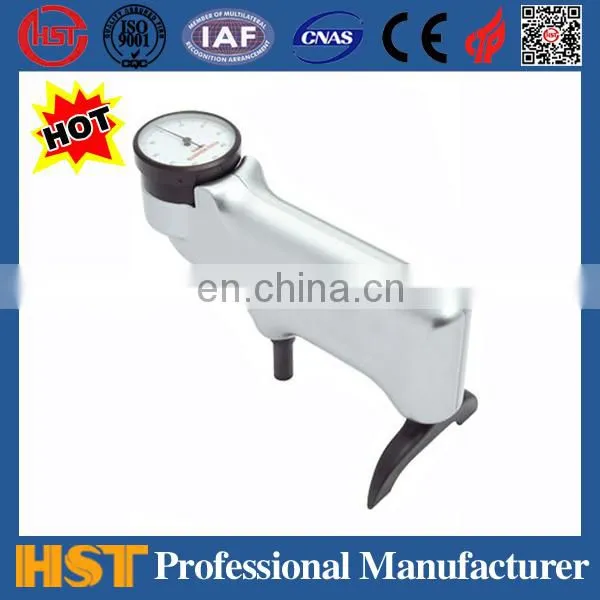

Hba-1 Portable Barcol Impressor/Indentation Hardness Tester/Barcol Hardness Tester
1.Application:
The Barcol Impressor is an indentation hardness tester.
The operation is easy, quick and almost non-destructive. The test is as simple as one press.
It is a convenient tool for testing the hardness of aluminum, aluminum alloys and fiber reinforced plastics,
which conforms to American Standard ASTM B648.
Barcol Hardness Tester is mainly used to test the hardness of aluminum and aluminum alloys, to test the
hardness of other soft metals and glass fibre reinforced plastic products.
It can also be used to test the hardness of extra large, extra wide, extra thick work pieces, and to test the
hardness of boards, belt materials, section materials, forgings and castings etc.
Barcol Hardness Tester is commonly used as supplement of Webster Hardness Testers. It is usually used
when test the hardness of pure aluminum, low hard aluminum alloys and extra large, extra thick materials.
2.Specification:
Testing Range |
0~100HBa (25~150HBW) |
Resolution |
0.5HBa |
Indenter |
26° pan head cone, head face diameter 0.176mm |
Error |
≤±1~2HBa |
Indication Error |
Hardness range: 45~55HBa ±2HBa, Hardness range 84~88HBa ±1HBa |
Repeatability Error |
Hardness range 45~55HBa ±2HBa, Hardness range 84~88HBa ±1HBa |
Weight |
0.50kg |
3.Features:
3.1.Barcol Impressor is a portable indentation hardness tester.
3.2.Single hand operation, operating experience required can test any operating experience whitch is
reachable in any site.
3.3.Wide valid testing range equivalent to Brinell hardness 25-150HBW, used to test the hardness of all
kinds of aluminum from very soft aluminum to very hard alloys.
3.4.Barcol Impressor has a wide range of application. Model 934-1 can be used to test aluminum and
aluminum alloys, copper and copper alloys, glass fiber reinforced plastics, rigid plastics, etc.
The improved type can be used to test lead, tin and other soft metal, and flexible plastics, rubber, felt,
leather, and so on.
3.5.With 100 scales, our Barcol Impressor is of higher sensitivity than commonly used Webster hardness
testers in aluminum alloy industry.

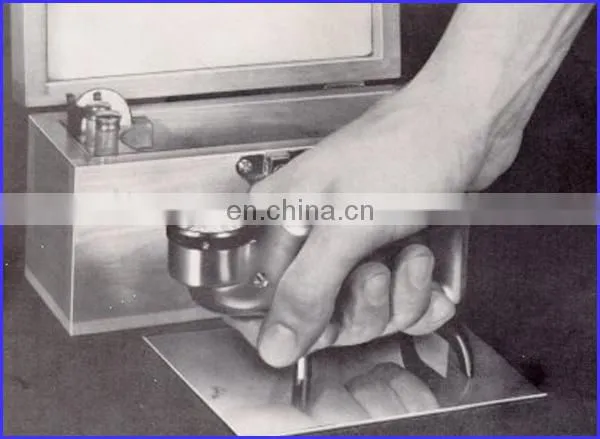

3.6.It could finish the testing work on one side of the workpiece, without trouble of moving or supporting
the workpiece. Due to this feature, the hardness tester can be used to test extra large, extra thick
workpieces and assembly parts.
3.7.By use of the conversion table, the test results can be easily converted to HB, HR, HV and HW.
3.8.It meets the requirement of ASTM B648-2000 standard.

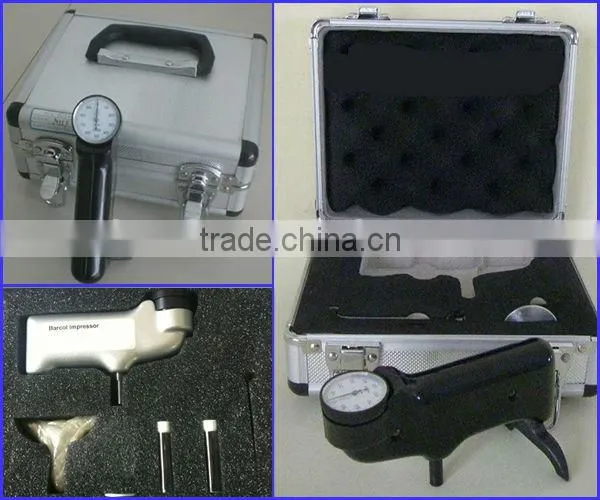

4.Standard Package:
4.1. Tester.
4.2. Standard testing blocks.
4.3. Calibration wrench.
4.4. Spare penetrators.
5.Optional Accessories:
Standard testing block
High: 87-89
Low: 43-45
Spare penetrators
6.The Packing Way Of Our Export Machines:
7.The Realistic Pictures Of Our Factory:
