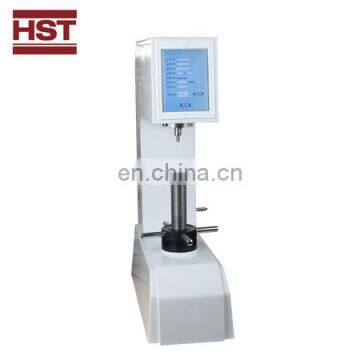

Electric Rockwell Hardness Tester;Durometer Tester;Hardness Testing Machine;portable hardness tester;metal hardness tester
1.Application:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating. Sheet metal, thin-walled pipe, hardened steel, and small parts of hardness. Widely used in machinery manufacturing, metallurgy plants, universities, laboratories, etc.
2.Main Technical Parameters
Conversion Scale | Rockwell ,Brinell,Vickers |
Application | Applied for repeatedly testing large quantity of specimens |
Preload for Rockwell hardness | 98.1N (10kgf) |
Main Force for Rockwell hardness | 60kgf(588.4N)100kgf(980.7N)150kgf(1471N) |
Force error | ≤0.5% |
Preload for Superficial Rockwell hardness | 29.4N(3kgf) |
Main Force for Superficial Rockwell hardness | 15kgf(147.1N)30kgf(294.2N)45kgf(441.3N) |
Superficial Rockwell test range | HR15N:70-94 HR30N:42-86 HR45N:20-77 HR15T:67-93 HR30T:29-82 HR45T:10-72 |
Dwelling Time | 0~60s |
Rockwell Scales | HRA:20-96 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-100 HRF:60-100 HR G 30-94HRH:80-100 HRK:40-100 HRL:50-115 HRM:50-115 HRR:50-115 |
Carry Out Standard | Chinese Standard GB/T230.1, GB/T230.2, JJG112 Inspection Rule, ASTM Standard |
Max Height of Specimen | 175mm, Added Height: 400mm |
Distance between Indenter to outer wall | 160mm |
Specimen Rising Speed | 3mm/s |
Specimen Rising Up | Automatically |
Apply Initial Test Force | Automatically |
Apply Main Test Force | Automatically |
Specimen moving in X or Y Axis | Automatically Move |
Moving Precision in X or Y Axis | 0.003mm |
Travels in X or Y Axis Direction | 100mm |
Hardness Value Display | Automatically |
Hardness Value Exchange | Automatically |
Hardness Values Output | Built-in Printer, RS232 Interface, Normal Printer |
Hardness Statistic and Analysis | With |
Hardness Test Database Inquiry | With |
User’s Stipulated Inspection Report | Automatically Form |
Exchange Scales | Superficial Rockwell, Brinell, Vickers |
Readout Hardness Value | Large Digital Display Screen |
Overall Dimension (mm) | 520x240x720mm |
Power Supply | AC220V |
Net Weight of Main Tester | About 65kg |
3.Standard accessories:
Digital Rockwell Hardness Tester
XY Precision Motorized Moving Test Table
XY Precision Moving Controller
Brand Computer
Control Software of Hardness Tester
1. Delivery Packaging
Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
2.Shipping & Delivery
It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
