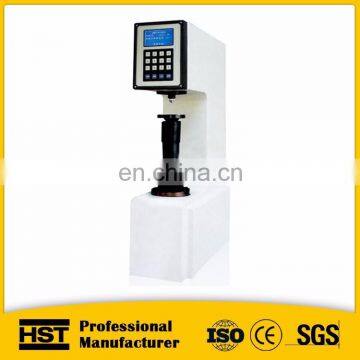

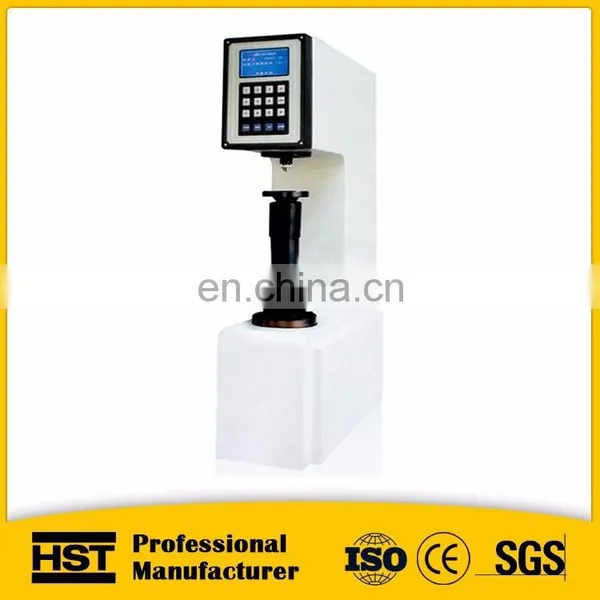

HB-3000C HARDNESS TESTER BRINELL
Feature:
* Automatic testing process, no human operating error
* High travel, large size work table
* Large LCD screen displaying for parameters setup, easy operation
* Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10
It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non- ferrous metals and soft bearing alloys, etc.
Specifications
Measuring range: 8-650HBW
Test force: 612.9, 980.7, 1225.9, 1838.8, 2451.8, 7355.3, 9807, 14710.5, 29421N
(62.5, 100, 125, 187.5, 250, 750, 1000, 1500, 3000kgf)
Diameter of tungsten carbide ball: 2.5, 5, 10mm
Dwelling time of test force: 2-99s
Max. height of test piece: 390mm
Depth of throat: 200mm
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 860 x 680 x 1250mm
Height of base: 400mm
Weight: Approx. 400kg
Hardnesss Tester Series:
