MH310 Portable Hardness Testers/Metal Hardness Tester With Printer
US$ 400 - 700
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HS or OEM
Place of Origin:
Shandong, China
Model Number:
MH310
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HB-3000C Digital Display Hardness Tester BrinellUS$ 999 - 5,999MOQ: 1 Set -
HVS-1000 Digital Micro Vicker Hardness Testing MachineUS$ 1,920 - 2,000MOQ: 1 Set
-
HLN160 Portable Leeb Hardness Testing InstrumentUS$ 700 - 800MOQ: 1 Set
-
W-B75 Copper Portable Webster Hardness Tester for Hard BrassUS$ 499 - 799MOQ: 1 Set
-
HV-50 50kgf Manual Turrent Vicker Hardness Testing MachineUS$ 1,500 - 1,800MOQ: 1 Set
Brand Name
HS or OEM
Place of Origin
Shandong, China
Model Number
MH310
MH310 Portable Hardness Tester
Advantages
1. Wide measuring range. Based on the principle of Leeb hardness testing theory. It can measure the Leeb hardness of all metallic materials.
2. Large screen LCD, showing all functions and parameters. With EL background light.
3. Seven impact devices are available for special application. Automatically identify the type of impact devices.
4. Test at any angle, even upside down.
5. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.
6. Large memory could store 100 groups (Relative to average times 32~1 ) information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.
7. Battery information showing the rest capacity of the battery and the charge status. User calibration function.
8. Software to connect to PC via USB port.
9. Thermal printer integrated, convenient for in field printing.
10. NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous 11. working period of no less than 150 hours (EL off and no printing). Auto power off to save energy.
12. Outline dimensions;212mm×80mm×32mm
2. Large screen LCD, showing all functions and parameters. With EL background light.
3. Seven impact devices are available for special application. Automatically identify the type of impact devices.
4. Test at any angle, even upside down.
5. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.
6. Large memory could store 100 groups (Relative to average times 32~1 ) information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.
7. Battery information showing the rest capacity of the battery and the charge status. User calibration function.
8. Software to connect to PC via USB port.
9. Thermal printer integrated, convenient for in field printing.
10. NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous 11. working period of no less than 150 hours (EL off and no printing). Auto power off to save energy.
12. Outline dimensions;212mm×80mm×32mm
Main Application
1. Die cavity of molds
2. Bearings and other parts
3. Failure analysis of pressure vessel, steam generator and other equipment
4. Heavy work piece
5. The installed machinery and permanently assembled parts
6. Testing surface of a small hollow space
7. Material identification in the warehouse of metallic materials
8. Rapid testing in large range and multi-measuring areas for large-scale work piece
Technical Specifications
Error and repeatability of displayed value:
| No. | Type of impact device | Hardness value of Leeb standard hardness block | Erro of displyed value | Reapeatability |
1 |
D |
760±30HLD 530±40HLD |
±6 HLD ±10 HLD |
6HLD 10HLD |
2 |
DC |
760±30HLD 530±40HLD |
±6 HLDC ±10 HLDC |
6HLD 10HLD |
3 |
DL |
878±30HLD 736±40HLD |
±12 HLDL |
12HLDL |
4 |
D+15 |
766±30HLD 544±40HLD |
±12 HLD+15 |
12HLD+15 |
5 |
G |
590±40HLD 500±40HLD |
±12 HLG |
12HLG |
6 |
E |
725±30HLD 508±40HLD |
±12 HLE |
12HLE |
7 |
C |
822±30HLD 590±40HLD |
±12 HLC |
12HLC |
1. Measuring range HLD 170^960 HLD
2. Measuring direction 360°
3. Hardness Scale HL HB HRB HRC HRA HV HS
4. Display segment LCD
5. Data memory 100 groups max relative to impact times 32^1
6. Printing paper: width is 57.5±0.5 mm, diameter is 30mm
7. Battery pack: 6V NI-MH
8. Battery charger: 9V/500mA
9. Continuous working period about 150 hours with backlight off, no printing
10. Communication interface USB1.1
11. Outline dimensions 212mm×80mm×32mm
2. Measuring direction 360°
3. Hardness Scale HL HB HRB HRC HRA HV HS
4. Display segment LCD
5. Data memory 100 groups max relative to impact times 32^1
6. Printing paper: width is 57.5±0.5 mm, diameter is 30mm
7. Battery pack: 6V NI-MH
8. Battery charger: 9V/500mA
9. Continuous working period about 150 hours with backlight off, no printing
10. Communication interface USB1.1
11. Outline dimensions 212mm×80mm×32mm

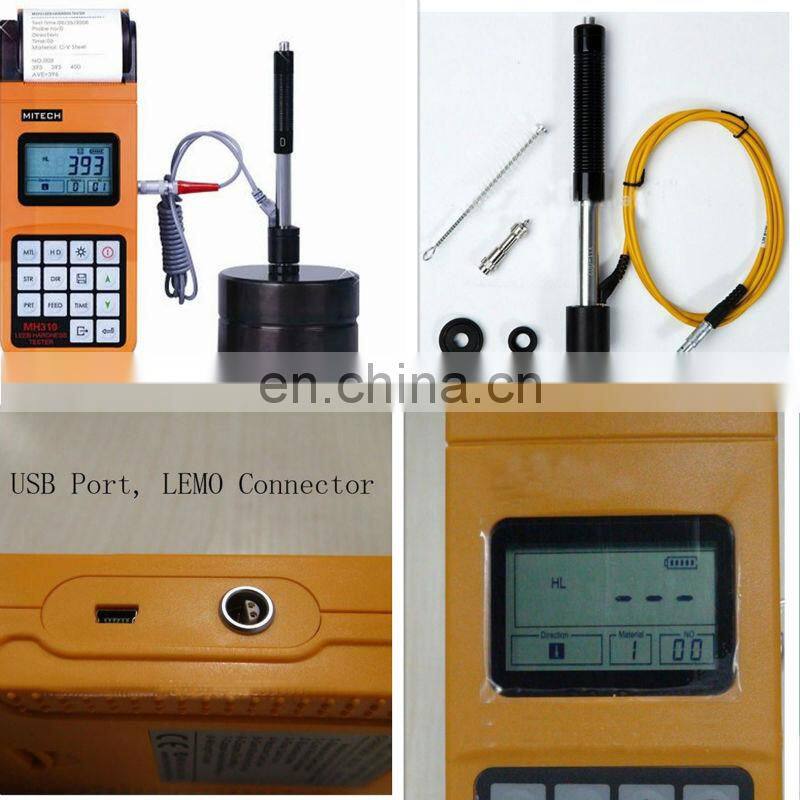

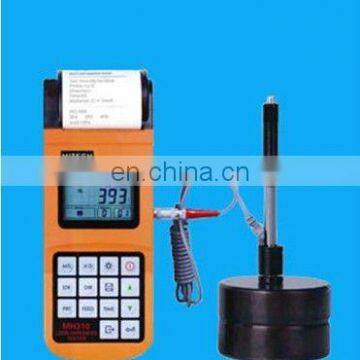

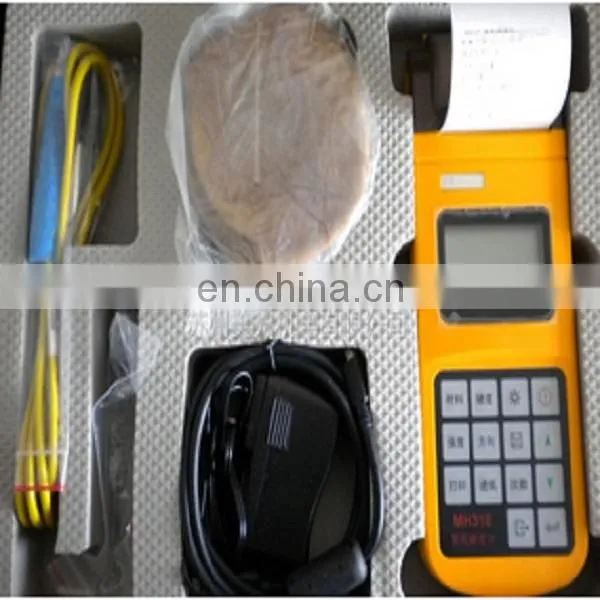

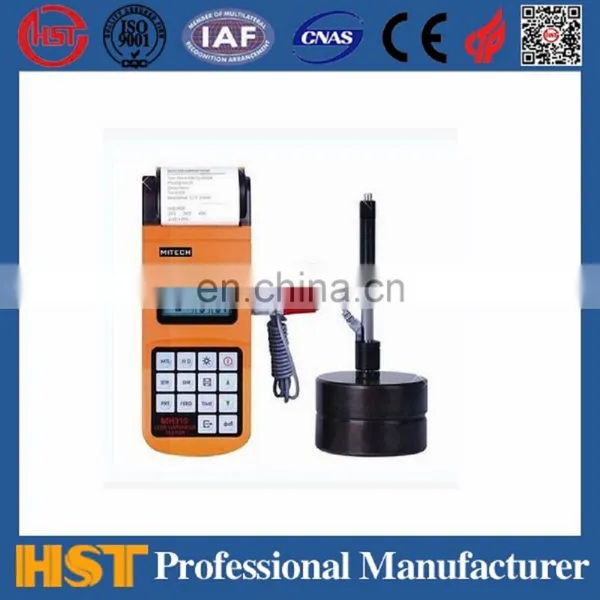

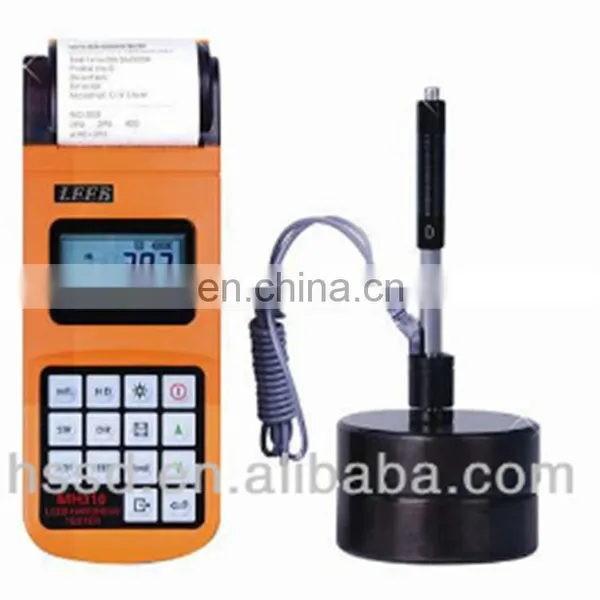

MH310 Portable Hardness Tester Detailed Pics:
