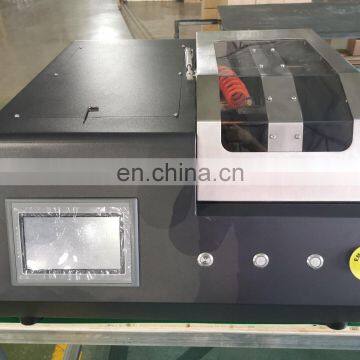

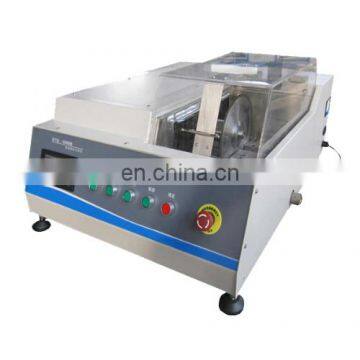

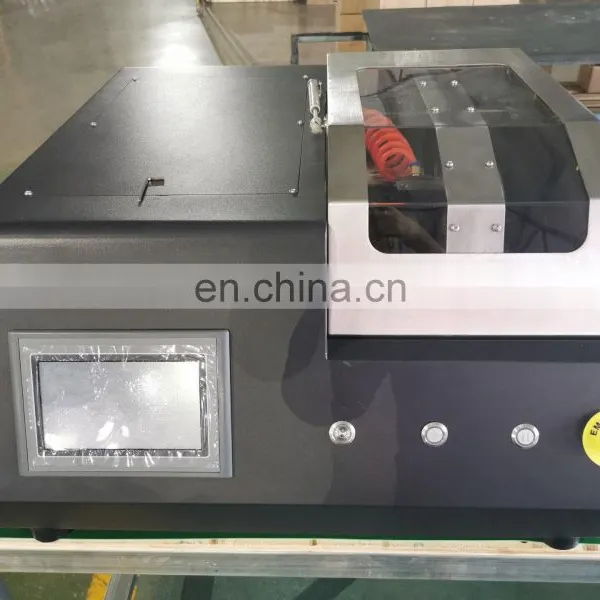

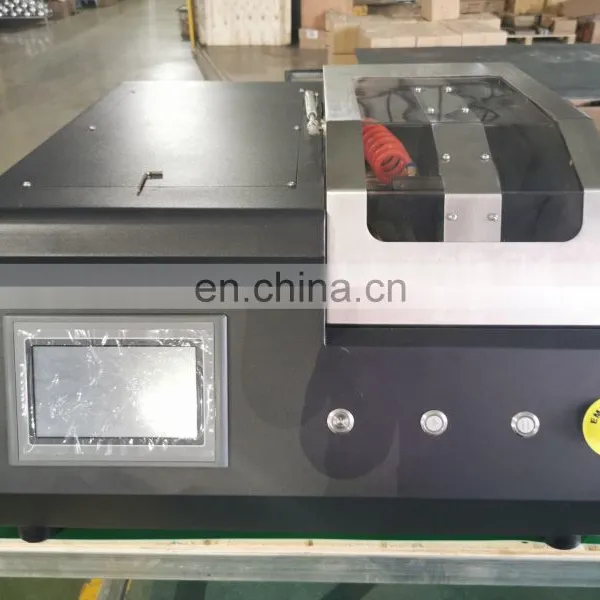

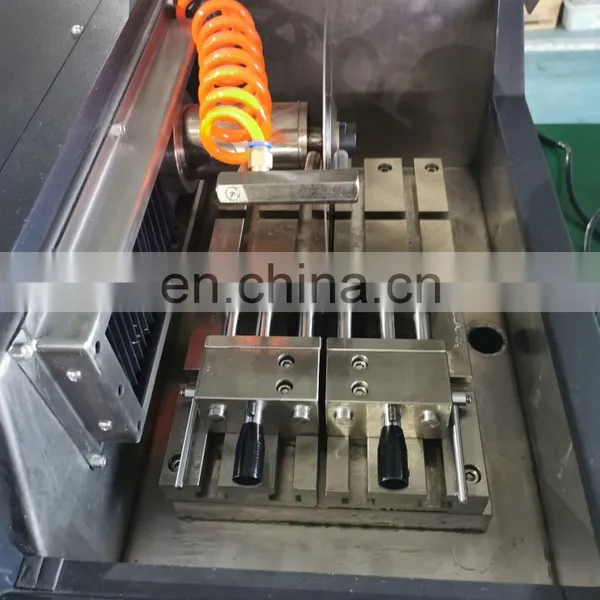

GTQ-5000B Metallographic Specimen Precision Cutting Machine
1. Application:
GTQ-5000B Precision cutting machine is suitable for metal, electronic components, ceramics,
crystal, alloy, rock samples, ore, concrete, organic materials, bio-materials (tooth, bone) and other
materials for precise cutting without distortion . The device positioning accuracy; speed range; strong
cutting ability; strong circulation cooling system; can be preset feed rate; menu-driven control; LCD;
easy to operate control; automatic cutting reduces operator fatigue, to ensure that the test sample
production consistency; large, bright room with a safety switch cut. Grinding wheel can be adjusted up
and down the distance, in order to facilitate subsequent loss cutting wheel. Is one of the ideal
equipment and mining enterprises, scientific research institutes to prepare high-quality specimens.
2. Main specifications:
Model |
GTQ-5000B |
Feed speed |
0.01-3.00 mm/s (adjusted step length 0.01mm) |
Grinding wheel speed |
500-5000rpm |
The largest travel |
Y-axis 200mm |
cutting sheet size |
200 x 32 x 1mm |
Cutting power |
1000W |
Power supply |
220V 50HZ |
Dimension |
820 x 735 x 435 mm |
Specimen Cutting Machine
