Model Q-80Z metallographic specimen cutting machine
Contact : Sunny Skype:jessica-hssd Whatsapp/Tel:+86-15866777590
1. Application:
Model Q-80Z manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces. Various cutting data can be displayed on high definition backlight type LCD screen. Manual cutting and automatic cutting means can be switched at will. Large cutting chamber, tempered glass observing window and it is equipped with 60L cooling liquid water tank. Non-burning loss swing type cutting means which improved the cutting quality Automatic withdraw function after cutting is finished, bidirectional feeding means increase the length of deep cutting.
2. Main specifications:
Model |
Q-80Z |
Display |
LCD with high resolution back lit dot matrix |
|
Cutting disc rotating speed (Sand wheel rotating speed) |
2100rpm |
Max. Cutting diameter |
80mm |
Cutting disc specification |
350 X2.5 X32mm |
MAX moving travel |
125mm |
MAX working table travel |
275mm |
power supply |
three phases 380V, 50Hz |
Motor |
2.5kw |
Dimension |
835 x 850 x 620mm |
Weight |
25kg |
IF you want to know other types, please click here:
M-2 Metallographic Specimen Pre Grinding and Polishing Machine BG-30 BELT SURFACE GRINDING SPECIMEN MACHINE
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case. They not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Lifelong after-sales service & maintenance;
24 hours’ consult pre-sale on line or by Phone;
Overseas training, installation is avaliable.
Jinan Hensgrand Instrument Co., Ltd. was established in 2001, is specialized in developing and manufacturing of testing equipments. The machiens are designed to test mechanical property of metal, non-metal and composite materials.

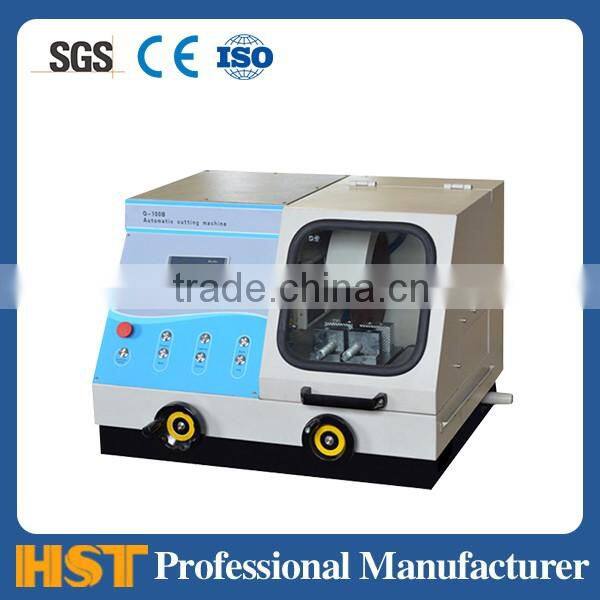

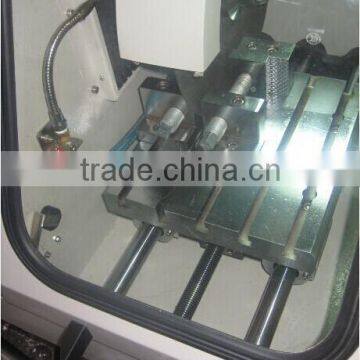

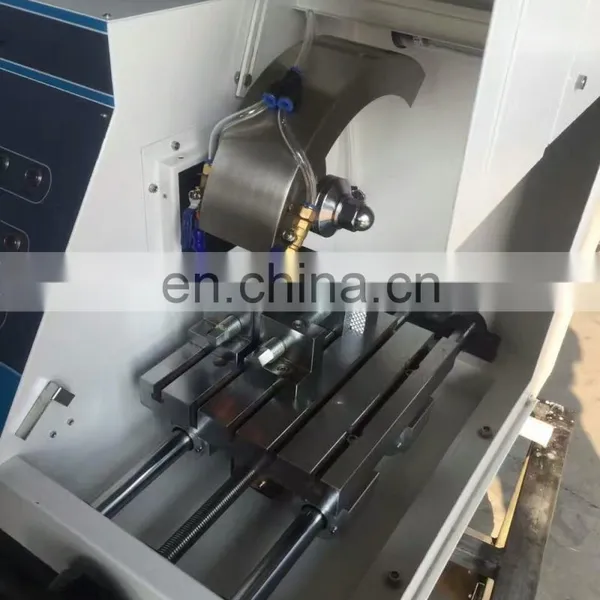

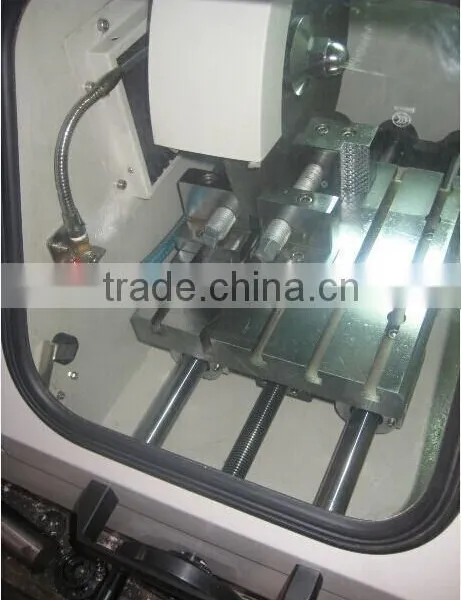

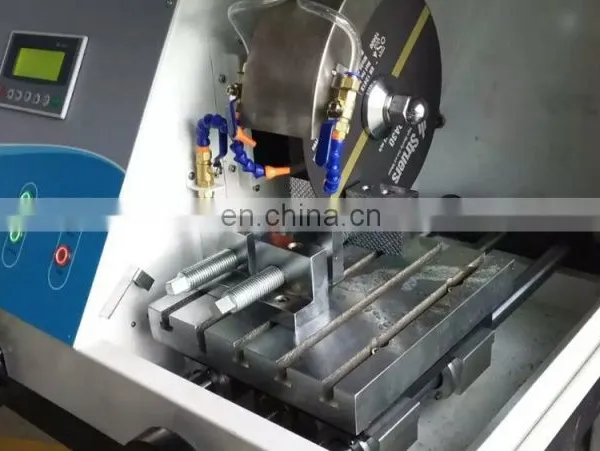

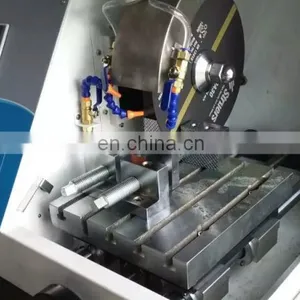

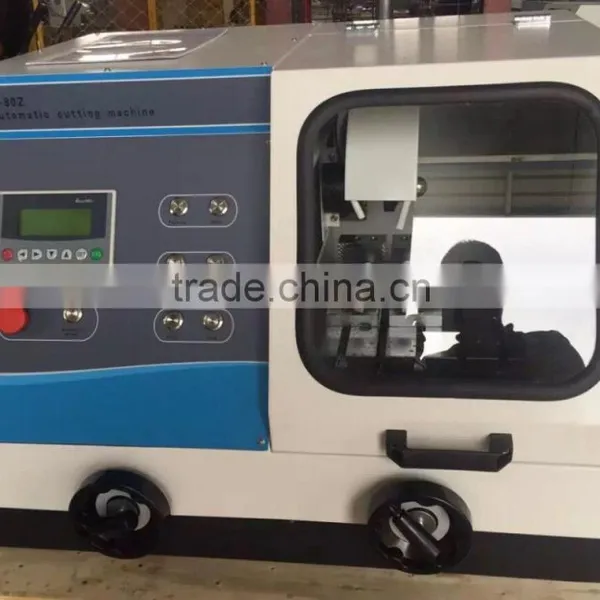

Model Q-80Z metallographic specimen cutting machine
Model Q-80Z metallographic specimen cutting machine
Model Q-80Z metallographic specimen cutting machine
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
♥ More information welcome to contact us now!
And welcome to our company! We display more new design in our showroom.
♥ Main web site: : http://www.
Tel: 86 531-86113769| Fax: 86 531 86113759
