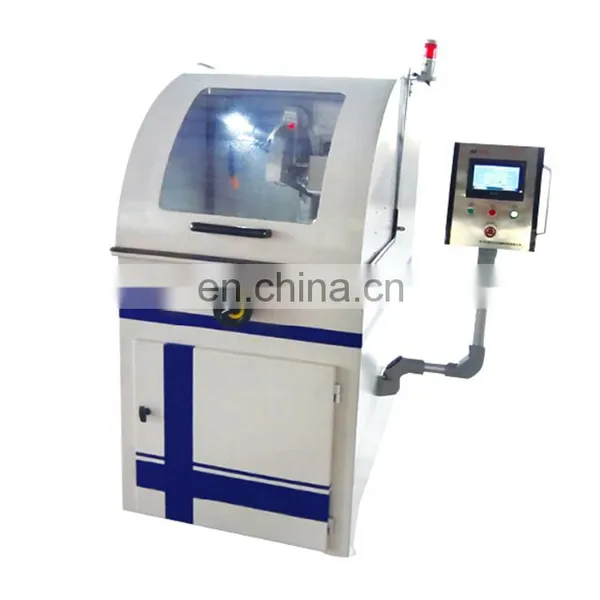

LDQ-350 Metallographic Sample Cutting Machine
Contact information: Skype:hssdtest What's app: +86-15098778967
1. Application:
Model LDQ-350A manual / automatic cutting machine is designed and manufactured according to an introduced and advanced technology of cutting actions, the health and safety of European Economic Community standard. This machine includes cutting system, lighting system, cooling system and cleaning system. Super cooling system can avoid specimen from burning while cutting. Imported gate style safety switch and explosion proof hood afford the safe guarantee for operators. LDQ-350A applies extensively with manual or automatic cutting features. It combines new cutting technology, high ability and convenience in one. It is the ideal option for colleges, car manufacturing, steel manufactories, material research institutes and so on.
2. Features
1.Three cutting type: Abrasive chop cutting, to-and-fro cutting, layer-to-layer cutting
2.Y-axis controllable handle
3.Large LCD interface to display various cutting data
4.Wide T-slot Bed, special clamping for large samples
5.Coolant tank with 80L capacity
6.Water-jet type cleaning system
7.Isolated lighting system
8. Maximum distance of 200 mm in Y axis
9. 80L circulating cooling with magnetic filte
10.Three different cutting patterns:chop-cutting,pulse cutting and reciprocating cutting(note:according to different material,different diameter,different hardness)
3. Main specifications:
Model |
LDQ-350A |
Motor power |
4KW |
Max. cutting diameter |
110mm |
Move capacity of Y-axis |
200mm |
Cooling method |
water cooling |
cutting speed |
0.005-10 mm/s is adjustable |
Power supply |
three phases, 380V, 50Hz |
Dimension |
1420×1040×1680mm |
Contact : Alice Zhang
Email: alice at hssdtest dot com
Mobile/whatapp/wechat: 008617853101076
Skype: hssdtest
Send Inquiry to This Supplier
