High resolution metallographic microscope 5000x magnification can photographed/stored
1.Application:
2 The main technical indicators of apparatus
2.1. Eyepiece
Category |
magnification |
view diameter (mm) |
Flat-field eyepiece |
10X |
18 |
12.5X |
15 |
2.2. Objective
Category |
magnification |
numerical aperture (NA) |
system |
working distance (mm) |
Achromatic objective lens |
10X |
0.25 |
Dry |
7.31 |
Semi-flat-field achromatic objective lens |
40X |
0.65 |
Dry |
0.66 |
Achromatic lens |
100X |
1.25 |
Oil |
0.37 |
2.3. The total optical magnification: 100X-1250X
2.4. Mechanical tube length: 160 mm
2.5. Rough focusing fretting institutions: Focus Range: 7 mm
Lattice-valued scale: 0.002 mm
2.6. Rough dynamic focusing range: 7 mm
2.7. Machinery table: 75 * 50 mm
2.8. Lighting bulb: 6v 12w bromine tungsten lamp
2.9. Containing object (diameter): 10,20,42
2.10. Instrument Weight: 5 kg
2.11. Packing box size: 360 * 246 * 360 millimeters
3 The complete sets of equipment
3.1. The main microscope: one
3.2. Eyepiece 10X, 12.5X: per two
3.3. objective lens 10X, 40X (flat-field), 100 (oil): per one
3.4. binocular tub: one
3.5. 10 X eyepiece micrometer : one
3.6. micrometer-foot (0.01) : one
3.7. contents pressure spring: one
3.8. slide φ10, φ20, φ42 : per one
3.9. filter (yellow, green, gray and frosted glass):per one
3.10. fir oil : one bottle
3.11. light bulb (bromine tungsten lamp) (standby): two
3.12. fuse: one

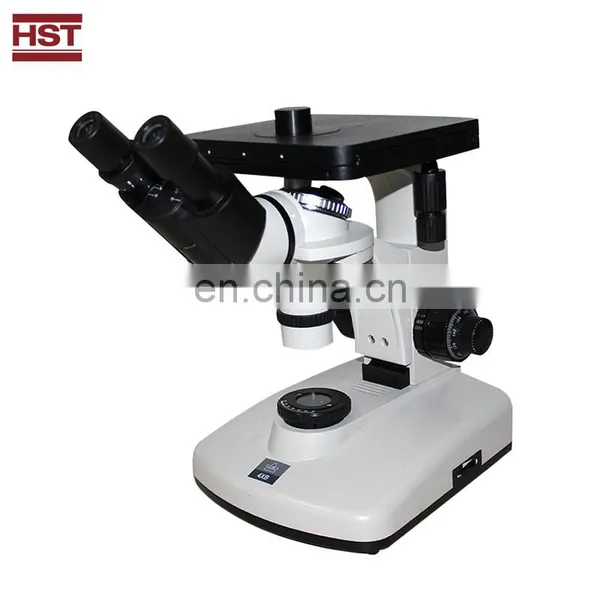

4XB Binocular Inverted Portable Metallurgical Microscope

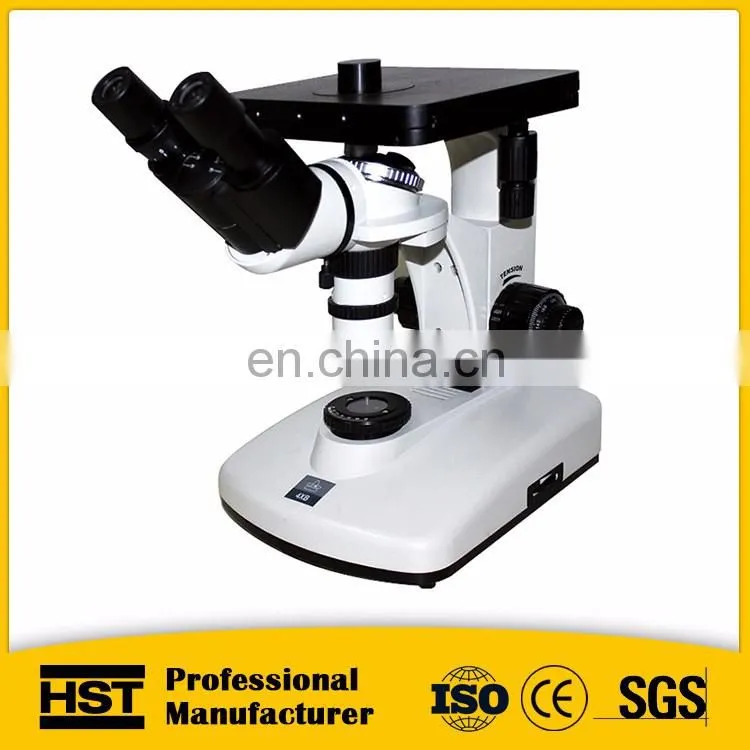

4XB Binocular Inverted Portable Metallurgical Microscope
CE Certificate
We sincerely welcome friends at home and abroad to cooperate with us.
We would like to offer you our best products and service.
