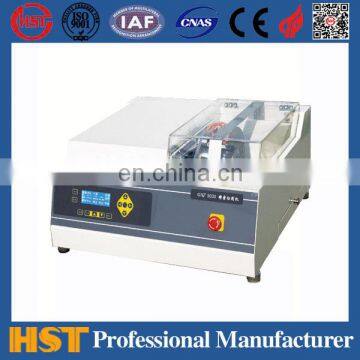

GTQ-5000 Metallographic Specimen prepare equipment / Metallographic Sample Cutting Machine

GTQ-5000 metallographic sample cutting machine/ metallographic equipment

This machine is designed according to investigation and researches on the market and customers’ requirements. It is used for cutting various types of materials with minimal sample deformation, especially cutting large scale specimen. It represents the advanced level in our country. This machine is suitable for wide hardness range of specimen. It is easy-to-use and on the safe side. It is an ideal option for the lab of factories, science and research institutions and universities.

Features:

Set up feed rate in advance (0-30mm)

Serial precision cut

Program control and Liquid Crystal Display (LCD) with backlighting

User defined cutting data-base

Two clamp

Large and close cutting compartment with imported gate style safety switch

Positioning to 2um

Built-in Recirculating cooling System

Serial cuts to a desired length and thicknes

Technical specifications :

1. Feed rate: 0-30mm/min (0.1 increments)

2. Abrasive blade diameters: 100mm,125mm,150mm, 200mm

3. Maximum work length: X-axis 90mm; Y-axis 200mm

4. Rotating speed: 300-5000rpm

5. Max. cutting diameter: Φ60mm

6. Cutting power: 1100 W

7. Power: 220V 50HZ
