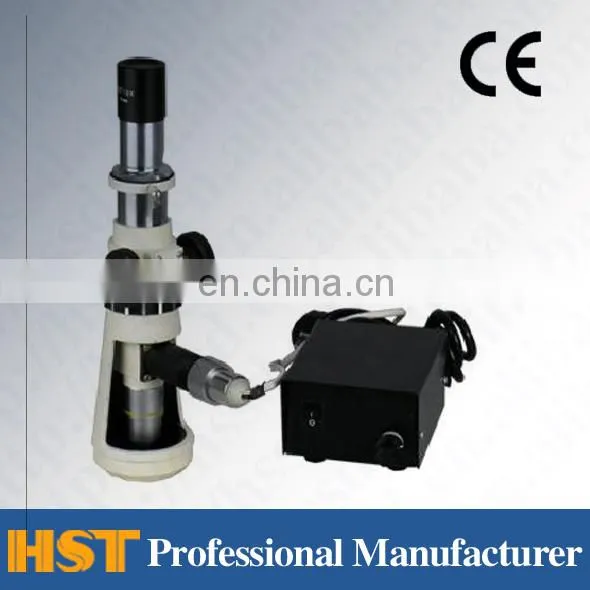

BX-J Portable Metallurgical Microscopes
Application:
BX_J portable metallurgical microscopes has vertical illumination light source. Applicable to metallographic inspection of various workpiece which is large or unable to make sample. No need to cut sampling and can directly grinding and polishing, in order to ensure the integrity of the workpiece. This machine can identify different metal and alloy organization structure. Widely used in Casting quality appraisal , raw material inspection or organization analysis after handling the materials by factory, laboratory.
Main technical indicators of apparatus
* Eyepiece
Category |
Magnification |
View diameter (mm) |
Objective Eyepiece |
10X |
18 |
* Objective
Achromatic objective lens |
Numerical aperture(NA) |
Working distance(mm) |
10X |
0.25 |
7.3 |
40X |
0.65 |
0.5 |
Total magnification:100X,400X
Mechanical length :160mm
Focusing distance:36mm
Adjustable light power supply:6V 2.1W
Optional accessories
Eyepiece:20X
Objective: 16X 20X
Digital Camera
