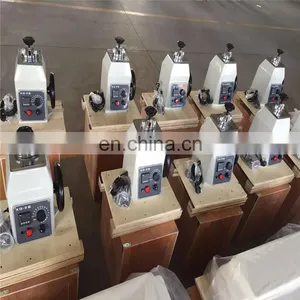

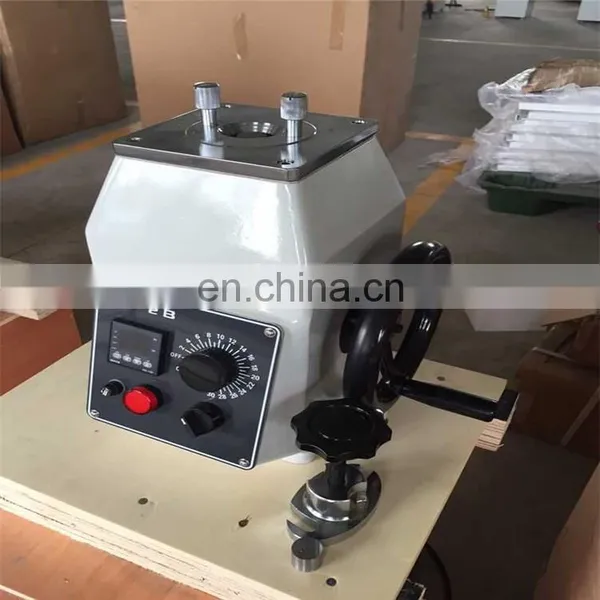

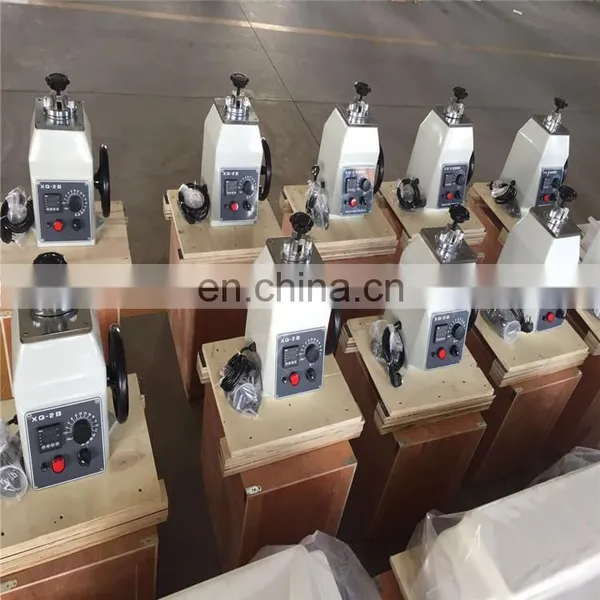

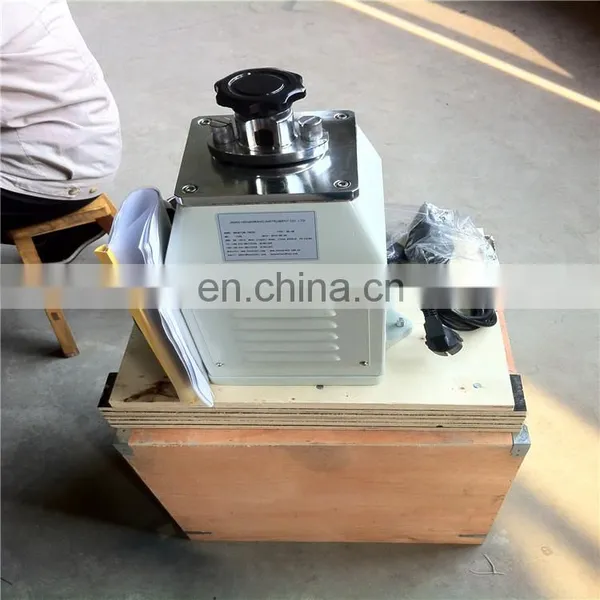

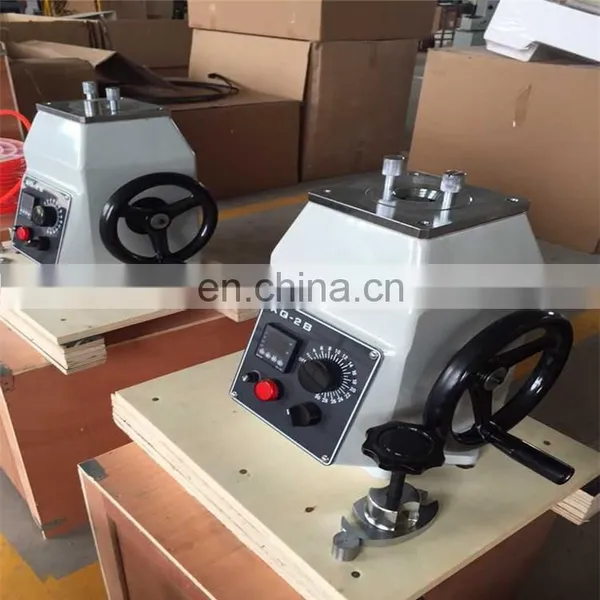

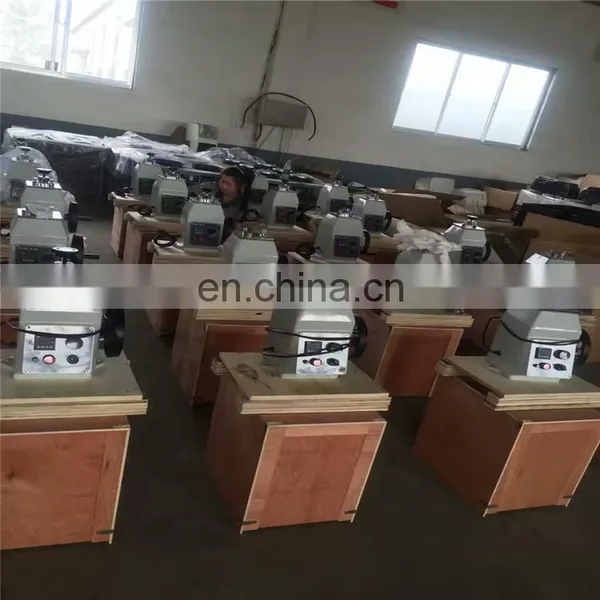

XQ-2B Metallographic Specimen Hot Mounting Presse
Model XQ-2B Metallographic specimen mounting pressis suitable for the thermo-hardening plastic pressing of the small metallographic specimen which is not idiomorphic or hard to take.After forming, it will be very easy to process the grinding, polishing of the specimen and it is also convenient to process measuring of metallographic structure under metallographic microscope. The machine may work stablely under the following working condition:
1. The temperature of surrounding mediumcan not be less than 10 °C and more than 40 °C
2. The relative humidity of air should be no more than 85% (20 °C)
3. The voltage fluctuation should be no more than 15%
4. There should be no obvious vibration source around
5. There should be no current conducting dust, explosiveand corrosive air.
Technical specifications
Model |
XQ-2B |
The sample diameter(mm) |
22, 30, 45 |
Heater specifications |
650W 220V 50Hz |
Dimension |
400*290*400 |
Weight(Kg) |
33KG |
