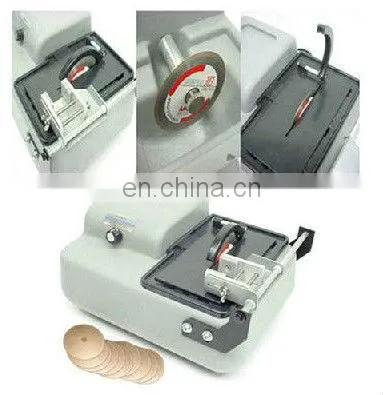

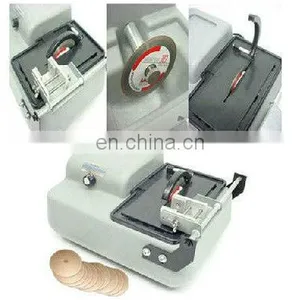

High Speed Diamond Cut off Saw with Vise and 5 pcs 4" diamond blades
Features
4" Manual Cut-off Saw is the perfect tool for quickly cutting valuable materials, such as rough crystal, ceramic, metal rod and almost any material before lapping and polishing.
The saw table is flat so it is easy to trim oversized slabs and removable so clean up is easy. The sturdy table measures 6" X 10", easy to operate.
The saw housing is made of unbreakable cross-linked polyethylene - no rusting, no messy oil, uses water only.
The 1/4 HP equivalent variable speed ball bearing direct drive motor allows the saw to run fast enough to use ultra thin diamond blades and it is powerful enough for impregnated diamond blades. Speed varies from 400 to 3250 RPM.
Max. cutting depth: 1" (25.4 mm).
Comes with 5 pcs of impregnated diamond blade of 4" Dia x 0.014" (0.35 mm) thickness x 1/2" arbor, as well as a vise which allows you to handle the sample smoothly. If you try to cut soft material, such as Ni, Cu or plastic, choose the 4" SiC blade, please click here to order.
Voltage: 110V AC (in order to use at 220-240V, you need a transformer 240V-110V, please click here to order separately.
Shipping dimension: 16" x 13" x 11"
Shipping weight :16lbs
