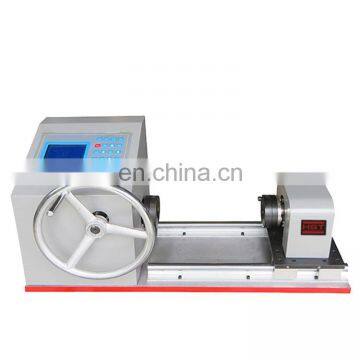

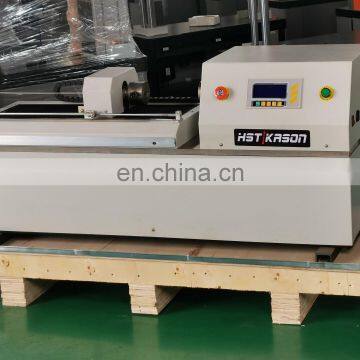

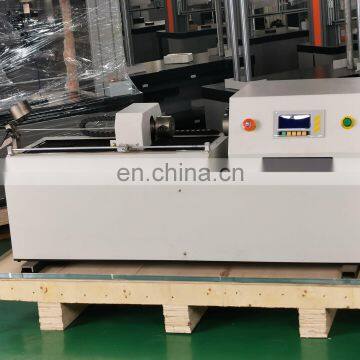

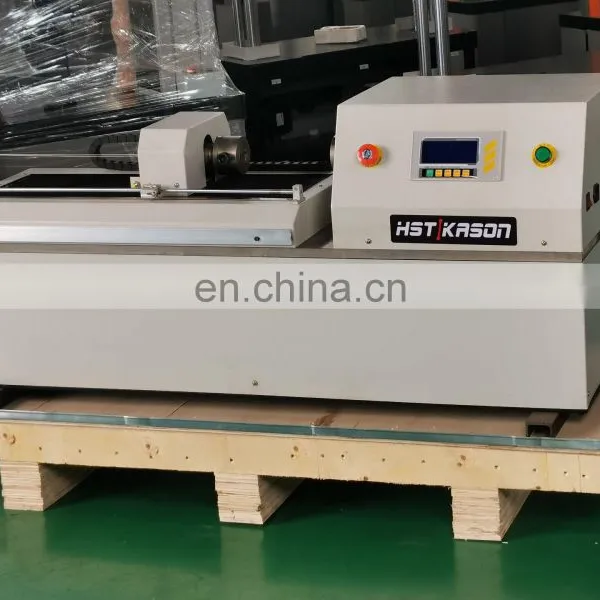

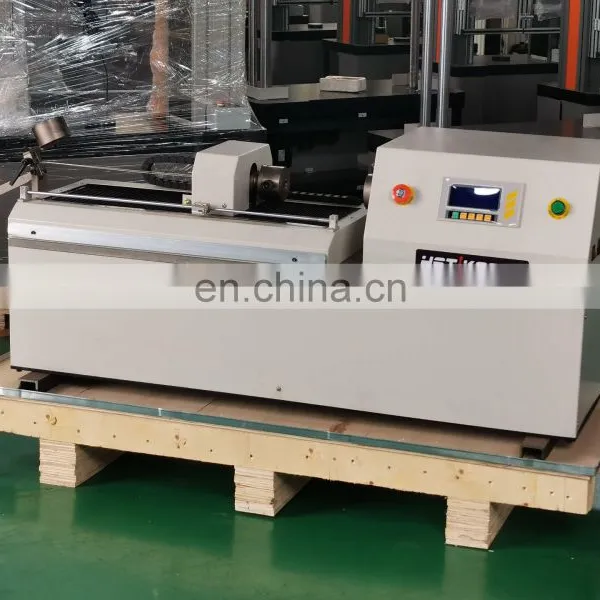

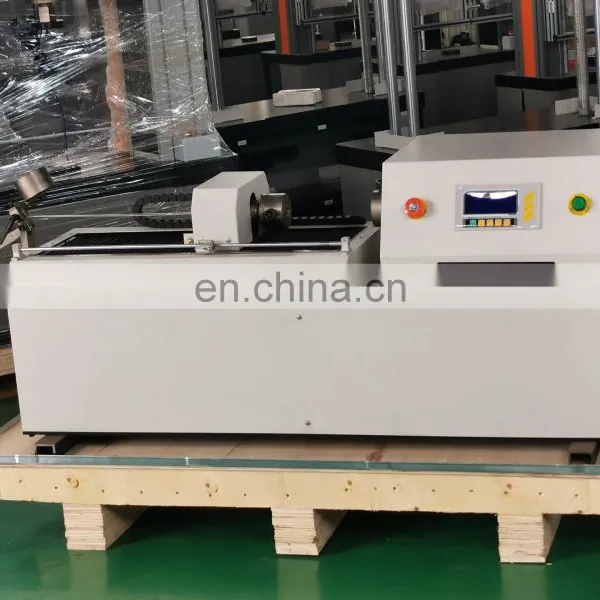

Metal Torsion Testing Machine wire torque test machine
Application:
Wire torsion testing machine applies to determine the ability of diameter(or feature size) of 0.1-20.0 mm wire for bearing plastic deformation in one way or two way torsion test, display the surface and internal defects of the wire. Provide reliable data for production of wire and wire rod company. Widely used in aerospace, metal material processing, tire manufacturing industries, and institutions of higher learning, scientific research institutions, technical supervision, quality inspection departments and so on.
Standard:
GB/T2611-2007 General requirements for testing machines
GB/T 239-1999 Metal wire twisting test method
ISO 7800:1984 Metal wire one-way torsion test method
ISO 9649:1990 Metal wire two-way torsion test method
Model | HEZ-1 | HEZ-3 | HEZ-6 | HEZ-10 |
Work Method | Auto-loading | |||
Max. Clamp metal wire diameter (mm) | 0.2-1.0 | 0.1-3 | 0.1-6 | 1-10 |
Parallelism of the full moving guide | ≤0.2 | |||
Distance between the grips (mm) | 200 | 320 | 500 | 500 |
Rotation speed adjusting range (r/min) | 60/90/120/180/300 | 60/90/120/180/300 | 60/90/120/180 | 60/90/120/180 |
Torsion speed error (%) | <±10% | |||
Min. number of circle values | 0.1 | |||
Two chuck alignment(mm) | <0.4 | |||
Jaw hardness(HRC) | 50-65 | |||
Weights error (%) | ±0.5 | |||
Work Noise (dB) | ≤70 | |||
Min. revolutions reading values(r) | 1 | |||
Power Supply | AC 220V±10%,50Hz | |||
