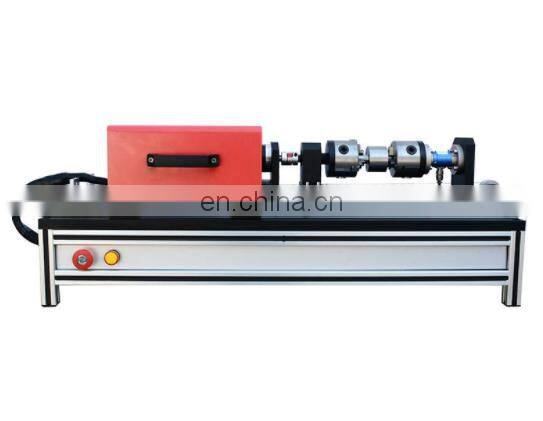

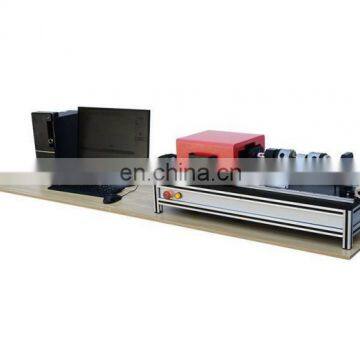

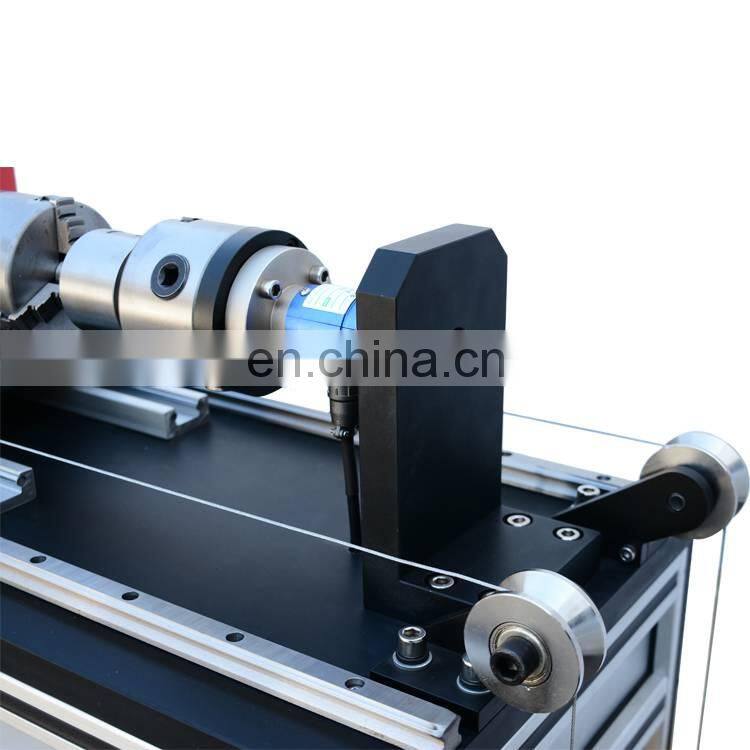

50 N.m Computer control Bone Screw Torque Testing equipment
Features:
1. High rigidity and high stability horizontal rack. Frame size can be customized.
2. Load control, automatic hold, cycle control and self-programming control.
3. High-precision symmetrical torque sensor with wide linearity and good stability to ensure the accuracy of torque testing.
4. High-speed, low-vibration, maintenance-free, silent AC servo motor drive system.
5. Built-in Ethernet interface; stop-and-go function; flexible operation and free switch.
6. The circuit board adopts photoelectric isolation design and has strong anti-interference ability.
7. Have a variety of perfect test fixtures for quick replacement.
8. Wide torsion angle test speed, arbitrarily selected within 1r / min ~ 10r / min.
9. Full digital closed-loop, multi-channel, multi-functional, easy-to-control HST-test measurement and control software; a variety of test methods and standards (ASTM, ISO, DIN, EN, BS, etc.) are stored in the database; test data can be saved at any time, Query, call
9.1 Automatic control of the test process, full closed-loop control and display of torque and torsion angle, full keyboard input operation, and intelligent setting system of control mode; the control mode is arbitrarily set, no impact, smooth switching, and smooth loading and unloading.
9.2 Flexible Excel or Word report format, default format and self-editing format; multiple sorts, multiple types of output.
9.3 Re-reading has completed the test, simulation reproduction, data re-analysis, multi-curve superposition, comparison, traversal.
9.4 The test curve can choose any coordinate axis, which can be enlarged and reduced freely; multiple curves (torque-time curve, torque-torque curve, angle-time curve, etc.) can be displayed at the same time. The required coordinates can be set and the full scale can be adjusted automatically.
9.5 Modular and open programming to meet individual requirements. With prompt and guide functions.
9.6 Automatically return after the test, intelligent, efficient and fast.
9.7 Torque and twist angle are automatically tracked and measured, and the test curve is displayed. The test torque value, twist angle and twist speed are displayed.
10. Multiple protection functions: overload, over-current, over-voltage protection; safety protection when the sample breaks; emergency shutdown protection.
Parameters
1 | Maximum Torque | 50N.m; |
2 | Torque Test Range(F·S) | 2%-100%F.S |
3 | Torsional Angle value relative error (%) | ≤±1%;/ ≤±0.5% |
4 | Torsion Angle | 0°~100000°(Or infinite angle) |
5 | Torsion angle resolution | 0.01°/ 0.0001° |
6 | Torsional speed | 1-1000°/min adjust |
7 | Torsional speed relative error (%) | Within ±1% |
8 | Chuck spacing effectively (mm) | 0-300mm(could be customized) |
9 | Spindle center height | 170mm |
