Home > Instruments & Meters > Test Instrument > Test Machine > HST KASON HENSGRAND EZ Series Metal Wire Torsion Tester

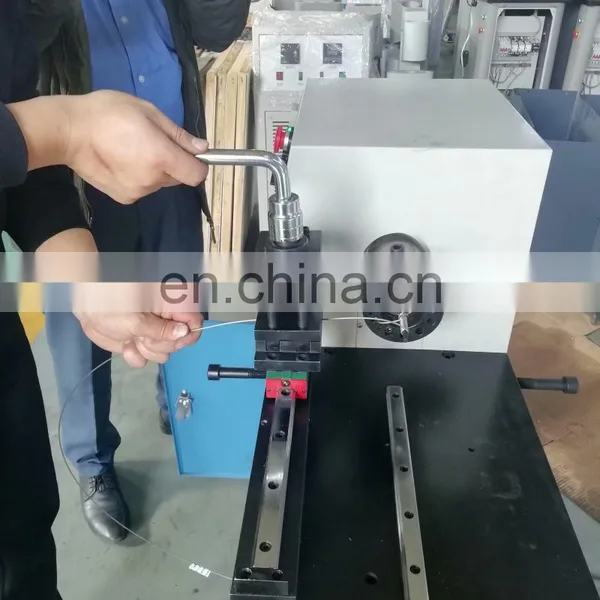

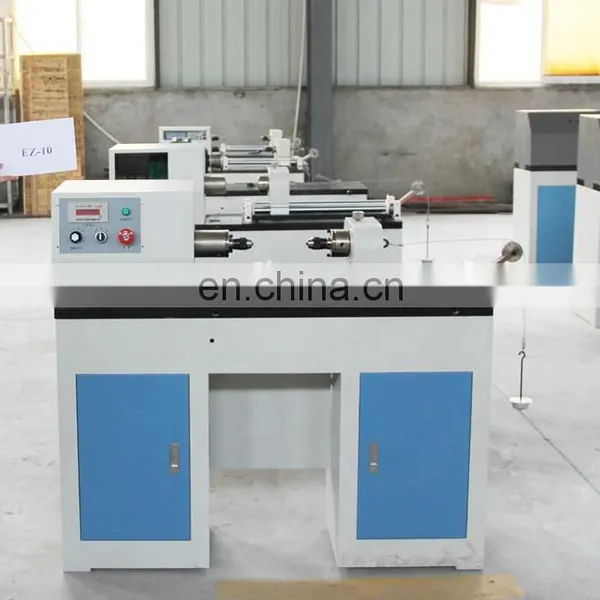

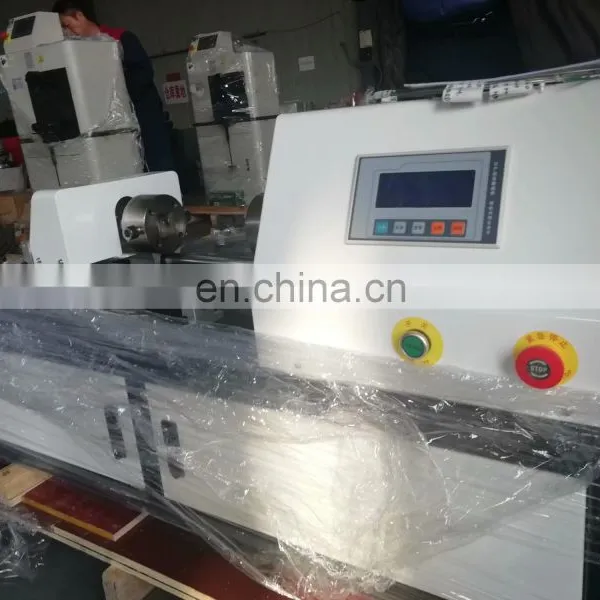

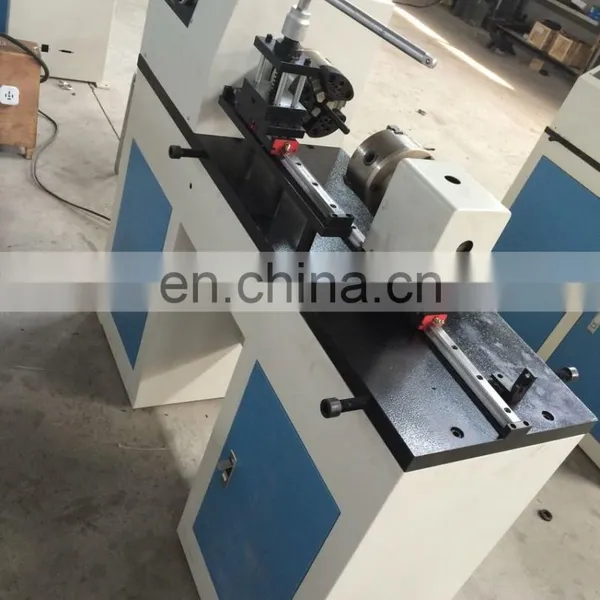

HST KASON HENSGRAND EZ Series Metal Wire Torsion Tester
US$ 2,590 - 2,600
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST
Place of Origin:
Shandong, China
Model Number:
EZ-6
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao China main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EZ Series Metal Wire Torsion Tester Metal Wire Torsion Testing MachineUS$ 2,590 - 2,600MOQ: 1 Set -
XCR-6 Metal Wire Wrap Testing MachineUS$ 4,100 - 4,200MOQ: 1 Set
-
HST EZ Series Metal Wire Torsion Testing MachineUS$ 2,590 - 2,600MOQ: 1 Set
-
NDW-5000G High Temperature Material Torsion Testing MachineUS$ 15,000 - 15,000MOQ: 1 Set
-
50 N.m Computer Control Bone Screw Torque Testing EquipmentUS$ 1,800 - 2,000MOQ: 1 Set
Brand Name
HST
Place of Origin
Shandong, China
Model Number
EZ-6
Power
Hydraulic
Application:
EZ Series Metal Wire Torsion Tester is mainly used to test the plasticity of metal wires and ropes under
torsion condition. Surface flaws of steel wires may be shown during the testing process. It is most suitable for
quality inspection of departments related to steel wire. The revolution is displayed on a 4-digit LED. Max.
displayed revolution is 999.9. The revolution value is automatically held at the break of specimens. It
conforms to standards of ASTM A938, ISO7800.
Specifications:
|
Model |
EZ-3 |
EZ-3 |
EZ-6 |
EZ-10 |
|
Work Method |
Auto-loading |
|||
|
Max. Clamp metal wire diameter (mm) |
0.1-1.0 |
1-3 |
1-6 |
3-10 |
|
Parallelism of the full moving guide |
≤0.2 |
|||
|
Distance between the grips (mm) |
200 |
320 |
500 |
500 |
|
Rotation speed adjusting range (r/min) |
60/90/120/180/300 |
60/90/120/180/300 |
60/90/120/180 |
60/90/120/180 |
|
Torsion speed error (%) |
<±10% |
|||
|
Min. number of circle values |
0.1 |
|||
|
Two chuck alignment(mm) |
<0.4 |
|||
|
Jaw hardness(HRC) |
50-65 |
|||
|
Weights error (%) |
±0.5 |
|||
|
Work Noise (dB) |
≤70 |
|||
|
Min. revolutions reading values(r) |
1 |
|||
|
Power Supply |
AC 220V±10%,50Hz |
|||
