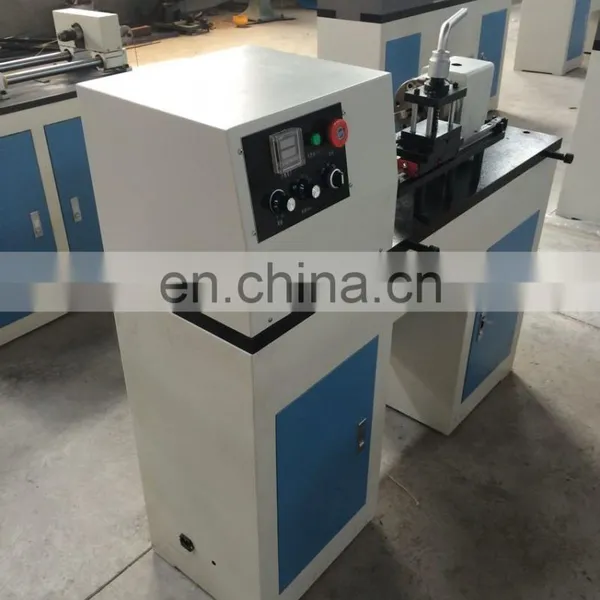

Help CenterXCR-6 Metal Wire Wrap Testing Machine
Related Products
-
HST EZ Series Metal Wire Torsion Testing MachineUS$ 2,590 - 2,600MOQ: 1 Set -
NDW-5000G High Temperature Material Torsion Testing MachineUS$ 15,000 - 15,000MOQ: 1 Set
-
50 N.m Computer Control Bone Screw Torque Testing EquipmentUS$ 1,800 - 2,000MOQ: 1 Set
-
XCR-6 Wire Wrap Testing MachineUS$ 1,800 - 2,000MOQ: 1 Set
-
YJZ-1000E Computer Controlled Bolt Torsion Test MachineUS$ 1,800 - 2,000MOQ: 1 Set
1. Scope of application

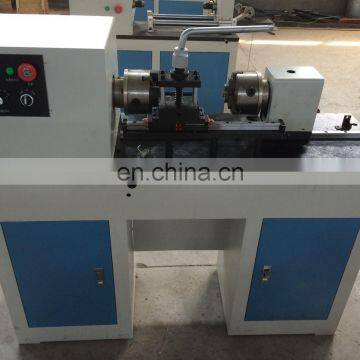

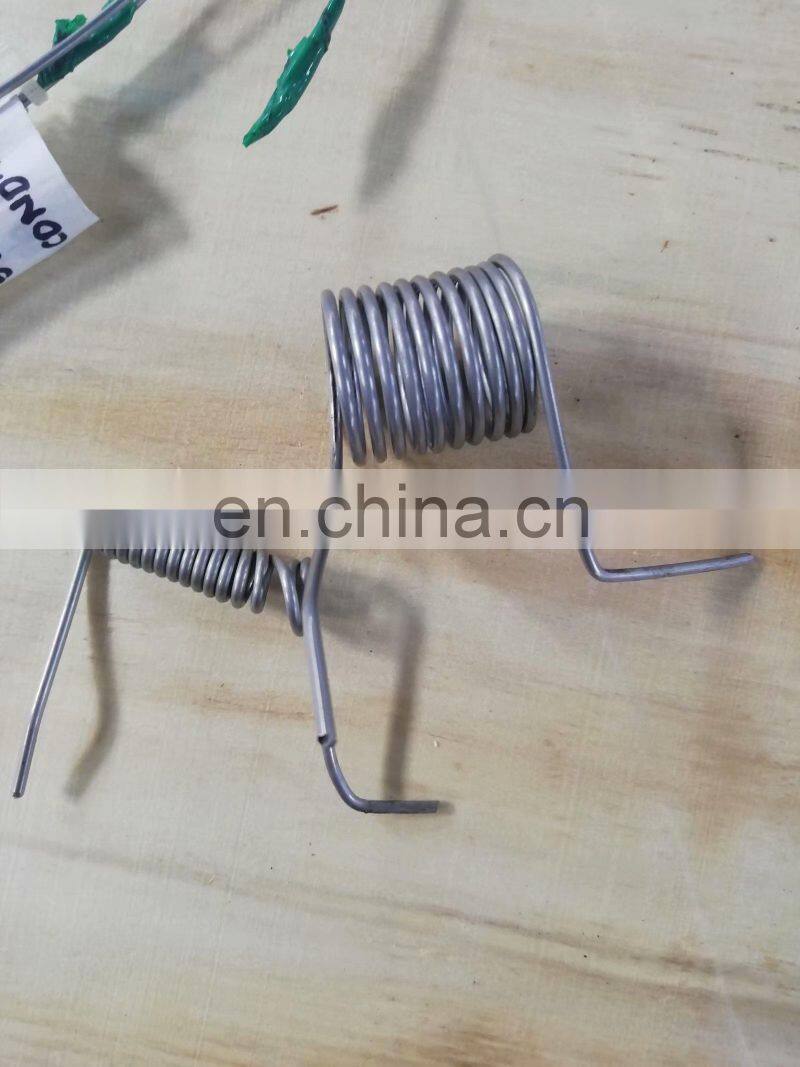

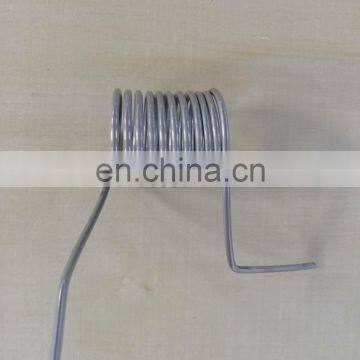

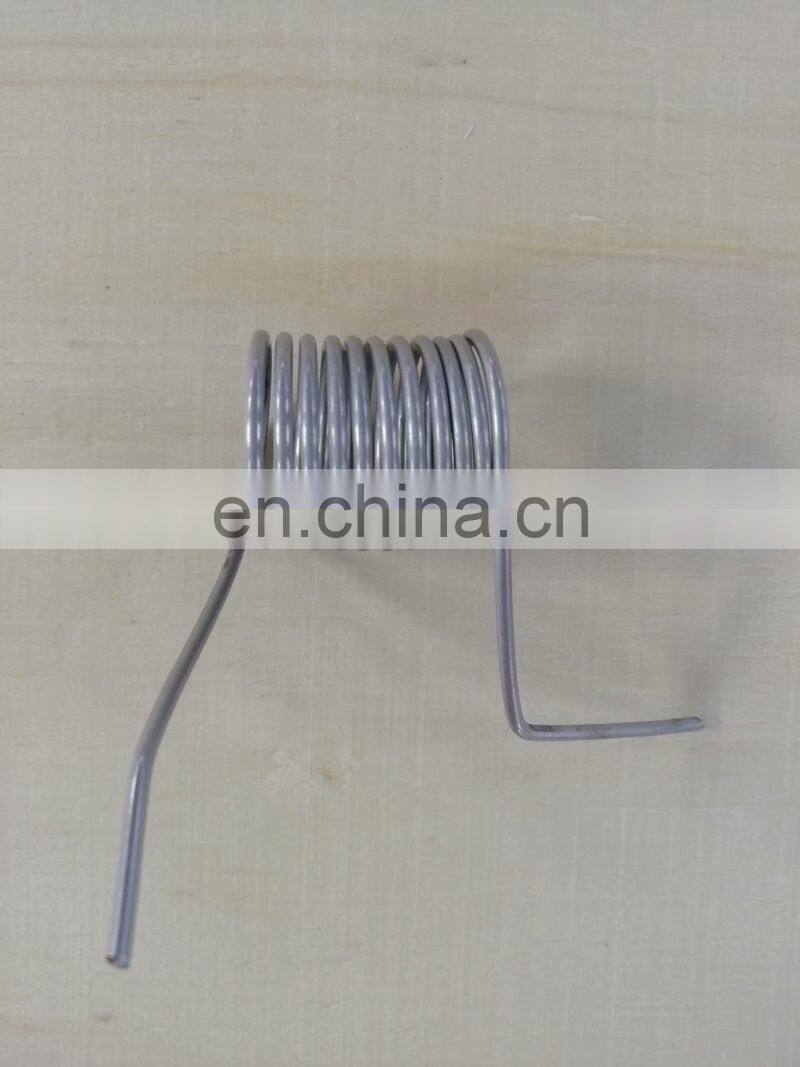

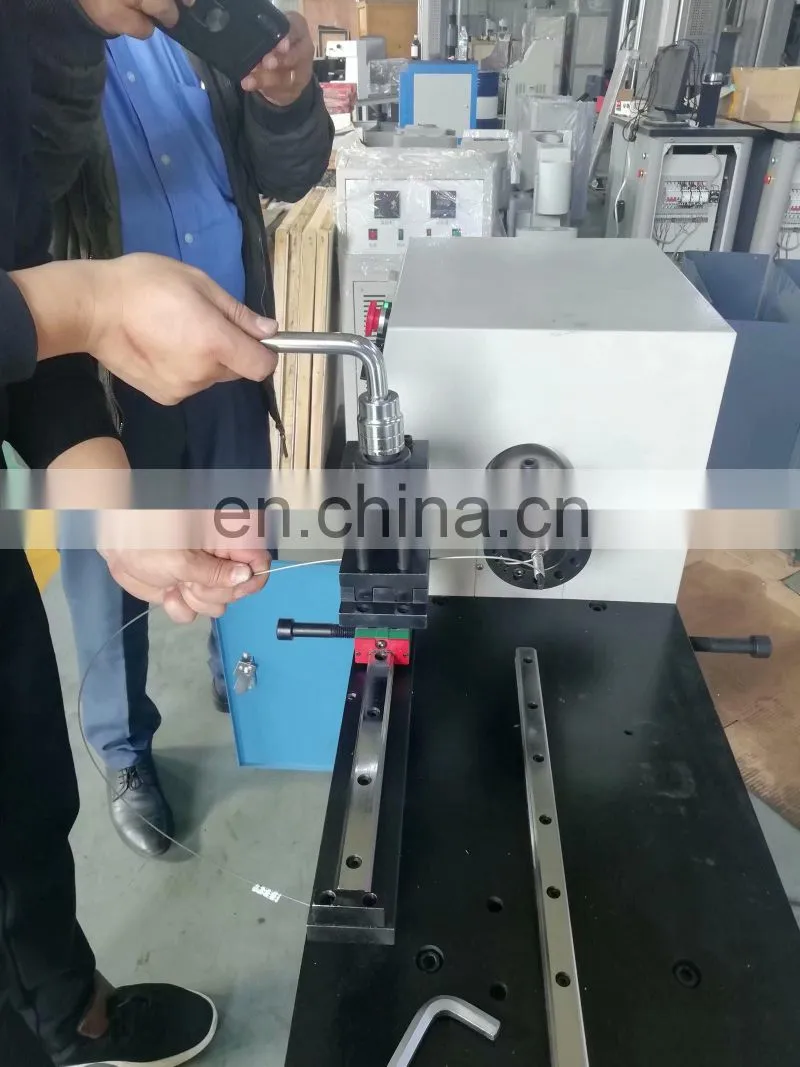

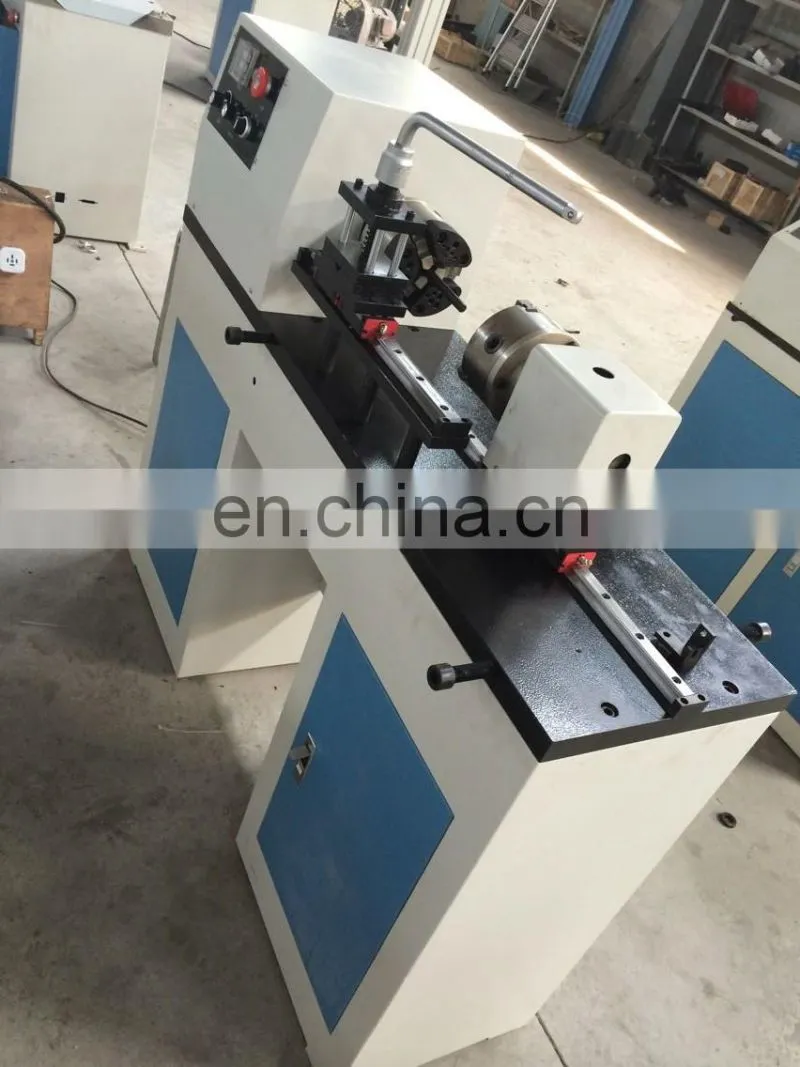

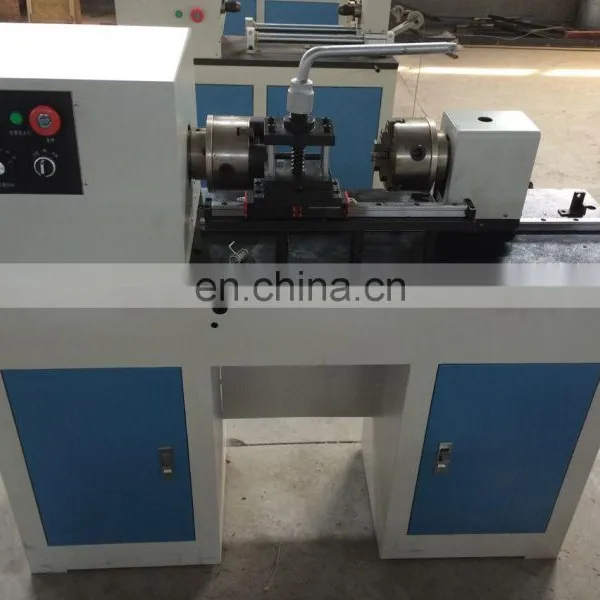

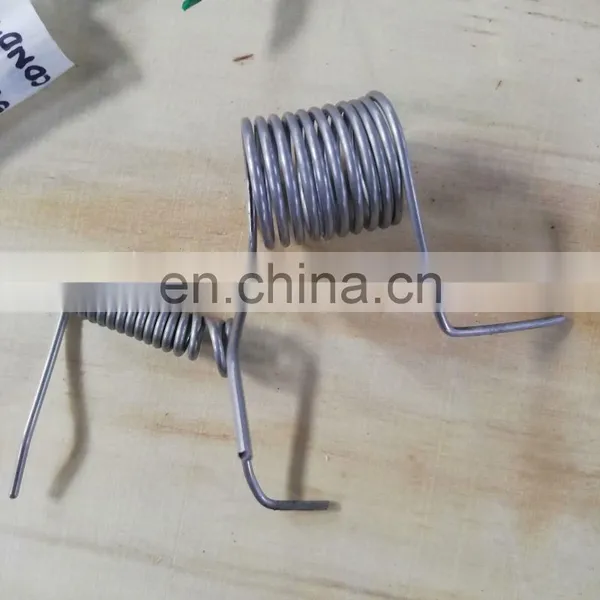

XCR-6 wire wrap testing machine is a new type of wire Wrap testing machine developed by our factory. It is mainly used for the Wrap test of 0.8mm~5mm metal wire. It is mainly used to detect the bonding strength and surface defects of the surface coatings which have been coated and uncoated, and provide a reliable measuring method for the production of wires and units using wires.
2. Main technical parameters and working conditions
2.1 Two collets coaxiality <0.4
2.2 Straightness of the moving rail in the full length range <0.2
2.3 The maximum distance between two chucks ≥ 520
2.4 Rotation speed 15, 20, 30, 60r / min or any setting
2.5 jaw hardness HRC 55 ~ 65
2.6 test machine working noise <70db
2.7 Environment and working conditions
a. Temperature 10 ° C ~ 35 ° C
b. Placed on a stable basis with a level <0.2‰
c. In a vibration-free environment
d. Non-corrosive media around
e. Power supply 220V 50HZ
|
|
|
|
