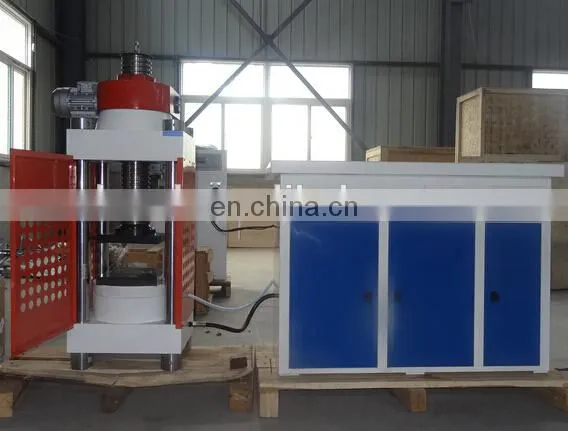

YAW-D 2000KN 200T Computer Automatic Concrete Compression concrete block testing machine
1. Application
Computer Concrete Cube Test Machine mainly used for concrete rupture strength testing ,
cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features

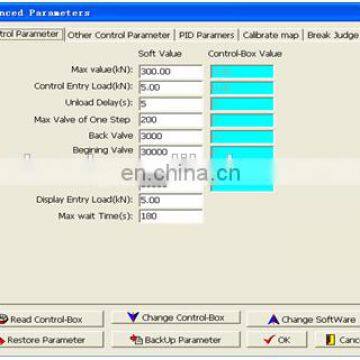

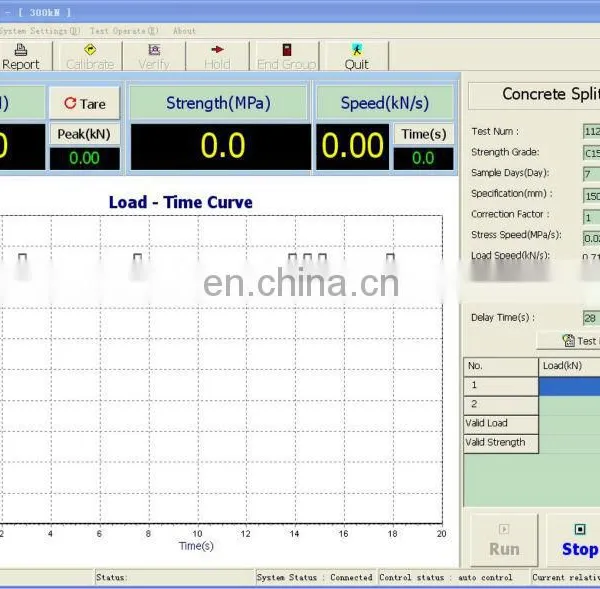

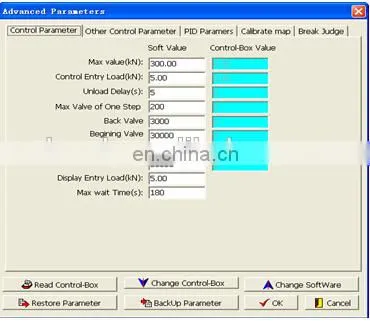

2.1 Computer control up, down, test, stop and loading progress
2.2 Electric screw ball adjust test space

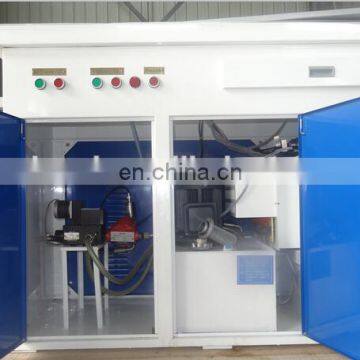

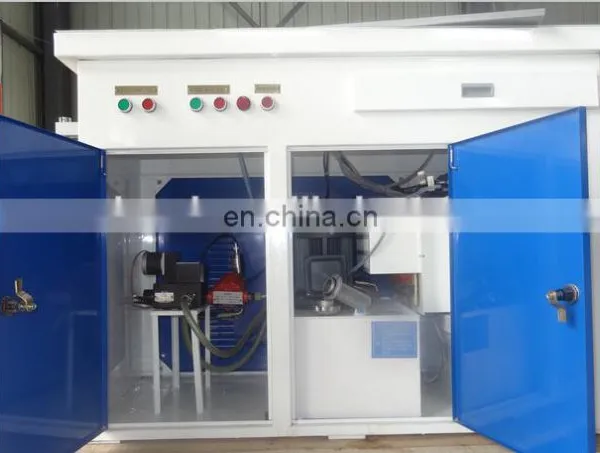

2.3 Unibody desktop oil source control cabinet

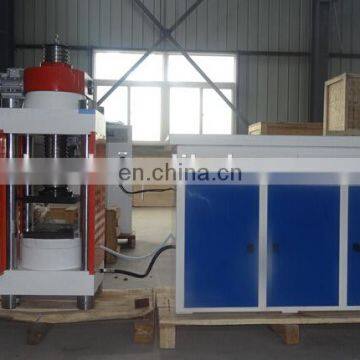

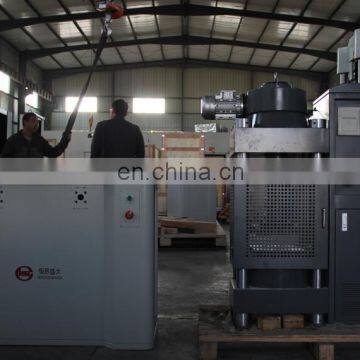

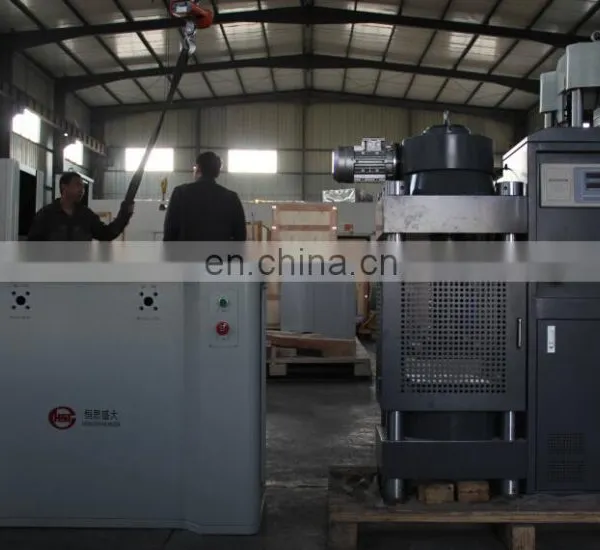

2.4 This machine consist of the host machine, oil source and control system.
2.5 Can realize the load rate, such as load or stress rate loading
2.6 Can auto printing
3. Technical parameters
Model | YAW-2000D | YAW-3000D | |
Max. Load | 2000kN | 3000kN | |
Control method | Computer auto control loading process | ||
Test space adjustment mode | Electric ball screw adjust | ||
Oil source control cabinet structure | One-piece oil source control cabinet | ||
Test class | 1 class | ||
Testing range | 4%-100%FS | ||
Load display accuracy | Better than ±1% | ||
Piston stroke | 50mm | 80mm | |
Distance between upper and lower plate | 320mm | 340mm | |
Max space between two columns | 280mm | 280mm | |
Size of upper and lower platen | 250×250mm | 260×260mm | |
Power supply | 2.1Kw/AC380V | 2.3Kw/AC380V | |
YES-2000 YAW-2000D YES-300 YAW-300D
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
