30T YES-300 Digital Display used asphalt testing equipment
1. Application
Digital display compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Product description:
* Structure: mainly composed by main unit, oil source and measuring control system.

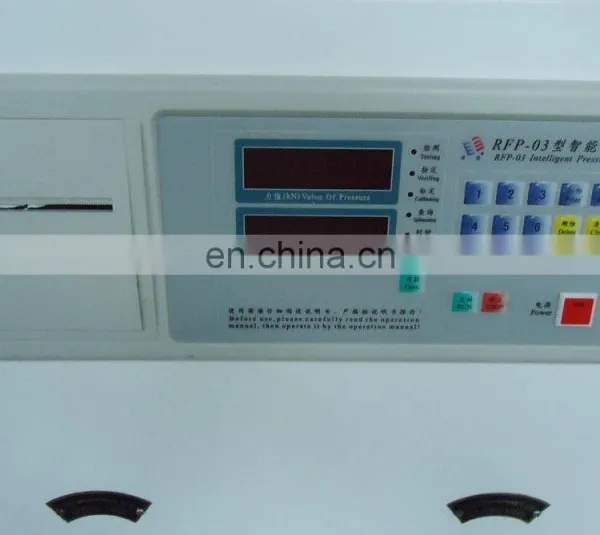

* Measuring control system:The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device: When the test force exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
3. Main Specifications
Model |
YES-100 |
YES-200 |
YES-300 |
Max. Load |
100kN |
200kN |
300kN |
Range of test force |
10-100kN |
20-200kN |
30-300kN |
Test space adjusting mode |
Block adjustment test space |
||
Oil source control structure |
With the host integration design |
||
Control mode |
Manual control loading process |
||
Test class |
1 class |
1 class |
1 class |
Load display accuracy |
±1% |
±1% |
±1% |
Force resolution |
1/10000 |
1/10000 |
1/10000 |
Piston stroke |
80mm |
80mm |
80mm |
Max piston speed |
50mm/min |
50mm/min |
50mm/min |
Max compression space between two plates |
210mm |
210mm |
210mm |
Max distance between two columns |
180mm |
180mm |
180mm |
Working table size |
φ120 mm |
φ120 mm |
φ120 mm |
Dimension |
900×450×1400mm |
||
Power supply |
0.75Kw/AC380V |
||
YES-1000/2000/3000 YAW-1000/2000/3000D YES-100/200/300 YES-1000/2000/3000D
Manual Compressive Strength Tester for cement
Manual Concrete Compression Testing Machine
