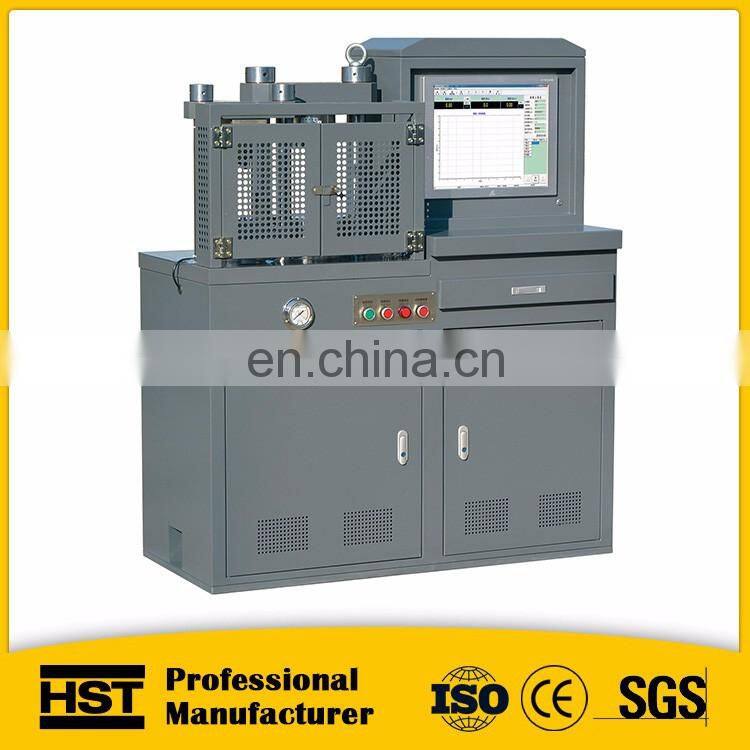

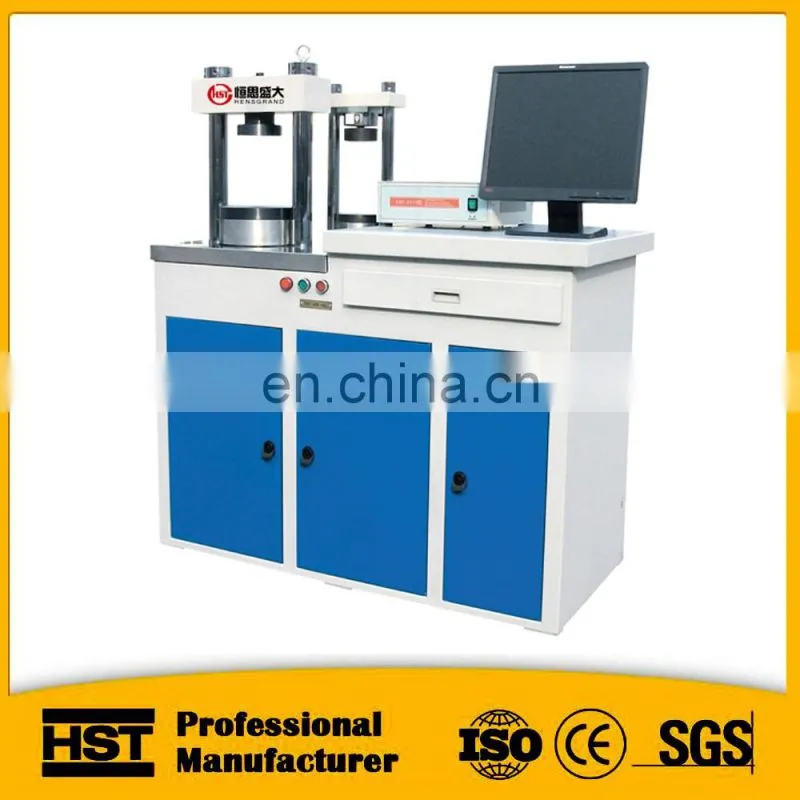

YAW-300C 300KN 30 TON cement mortar compression testing machine
1. Applications:
YAW-300B Computerized Automatic Brick Compression Testing Equipment/ Concrete Building Material
Testing Equipment is mainly designed for testing the compression strength of cement and mortar. It can fulfill the test automatically according to the requirements, which lists in the inspection method for the strength of cement and mortar, also possess the below advantages, such as: realizing screen display of test data and test curves. It is ideal inspection equipment for factories, laboratory and education, etc.
2. Features:
2.1 Computer control up, down, test, stop and loading progress
2.2 Computer automatically control the loading progress
2.3 This machine consist of the host machine, oil source and control system.
2.4 High precision digital servo valve with closed-loop control function
2.5 Can realize the load rate, such as load or stress rate loading
2.6 Can auto printing
3. Specifications
Model | YAW-300B | YAW-300C |
Max. load | 300kN | 300kN |
Max flexture test load | / | 10KN |
Test class | 1 class | |
Test measurement range | 4%-100%FS | |
Load accuracy | Better than ±1% | |
Control way | Computer control auto loading progress | |
Piston stroke | 80mm | |
Distance between upper and lower platen | 180mm | |
Test space adjustment method | Block adjustment test space | |
Max distance between the right and left columns | 190mm | |
Size of upper and lower platen | 180mm | |
The distance between the upper and lower anti rupture fixture | / | 180mm |
Anti rupture oil cylinder stroke | / | 50mm |
Size | 1200×550×1400mm | |
YES-1000 Digital Display Compression Testing Machine YES-2000D Digital Display Compression Testing Machine
YAW-300C 300KN 30 TON cement mortar compression testing machine
YAW-300C 300KN 30 TON cement mortar compression testing machine
YAW-300C 300KN 30 TON cement mortar compression testing machine
One year guarantee of the whole machine
24 hours techonical support by e-mail
calling or door-to-door service
