Iron Ore Pellet Compressive Strength Testing Machine 100KN 10Ton
US$ 1,000 - 7,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST
Place of Origin:
Shandong, China
Model Number:
YES-100
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao / Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Compressive Strength Test Machine for Iron Ore PelletUS$ 1,000 - 2,000MOQ: 1 Set -
Masonry Cement Concrete Compressive Strength Testing Machine | Compressive Strength Testing MachineUS$ 1,800 - 2,500MOQ: 1 Set
-
Computer Control Auto Concrete Compression Machine With ceUS$ 1,800 - 2,500MOQ: 1 Set
-
YAW-2000D Concrete Compression Tester Engine and ProcedureUS$ 5,300 - 5,900MOQ: 1 Set
-
200 Ton Concrete Cube Testing Machine Price Used for Measuring Press StrengthUS$ 1,800 - 2,500MOQ: 1 Set
Brand Name
HST
Place of Origin
Shandong, China
Model Number
YES-100
Power
Hydraulic
Usage
Compression Testing Machine
iron ore pellet compressive strength testing machine 100KN 10Ton
Product Application
Compression testing machine application:
This Series machine adopts loading hydraulically with accurate and reliable test data. In order to guarantee the accuracy of test load readout, it adopts oil pressure transducer to measure the load, after amplifying, the test load, peak value and loading speed can be displayed digitally. The oil source is installed at the bottom of control cabinet in which there is a double-flow high-pressure piston pump driven by the motor. The hydraulic system is controlled manually with the functions of easy operation, safety and reliability. It is widely used for building material compression test.
Specification Data
Main Specifications:
Model | YES-100 | YES-300 |
Max. Load | 100kN | 300kN |
Range of test force | 4% ~100%FS | 4% ~100%FS |
Load display accuracy | ±1% | ±1% |
Piston stroke | 120mm | 120mm |
Max piston speed | 50mm/min | 50mm/min |
Max compression space | 210mm | 210mm |
Distance between upper and lower platen | 340mm | 340mm |
Working table size | φ160mm | φ160mm |
Machine photos

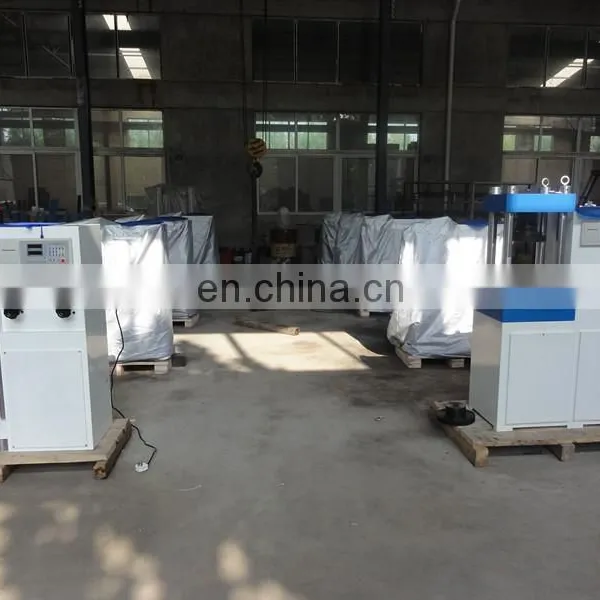

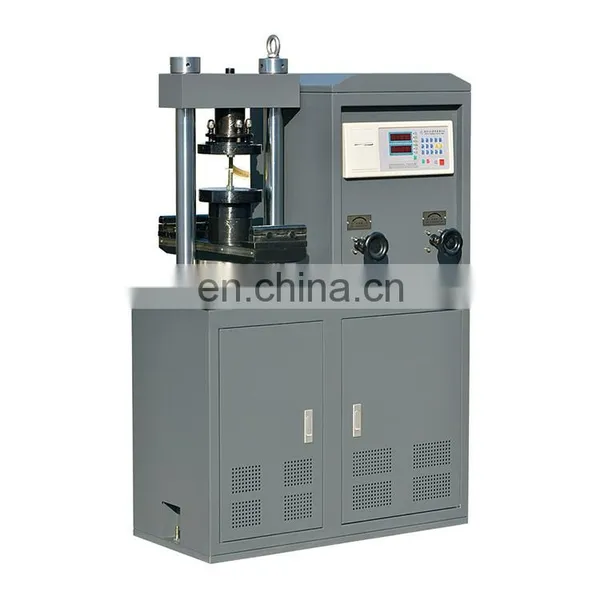

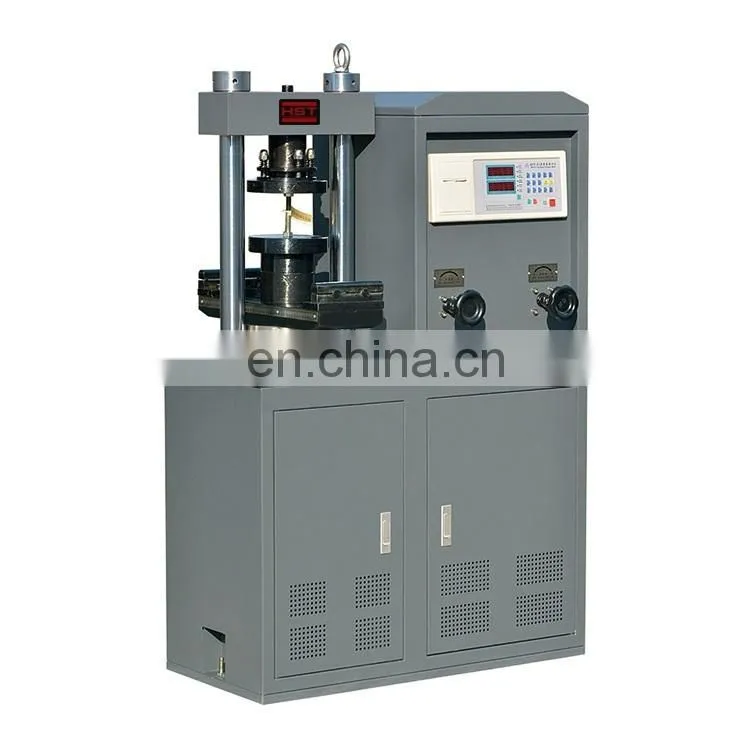

Compression testing machine YES-100KN:

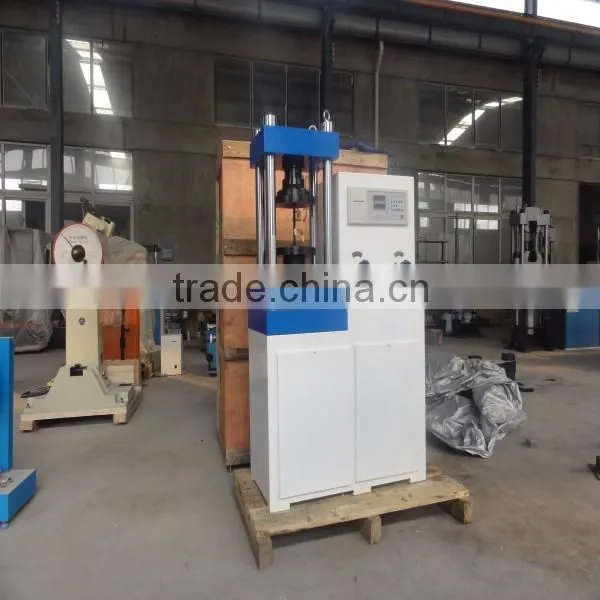

compression testing machine:

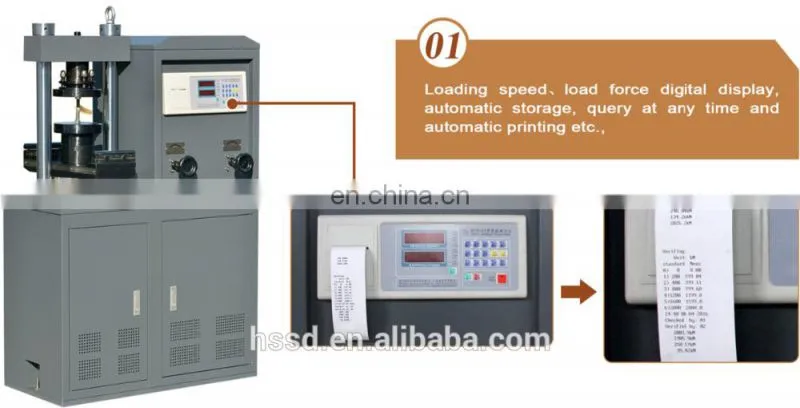

English language display control pannel:
English Test Report:
Certifications
CE certificate:
Delivery method
Our compression testing machines can be delivery within 3 working days --5 working days after receiving payment, the products can be shipped by air, by sea or by express delivery !
Package: Wooden Package
Shippment: ship by sea
