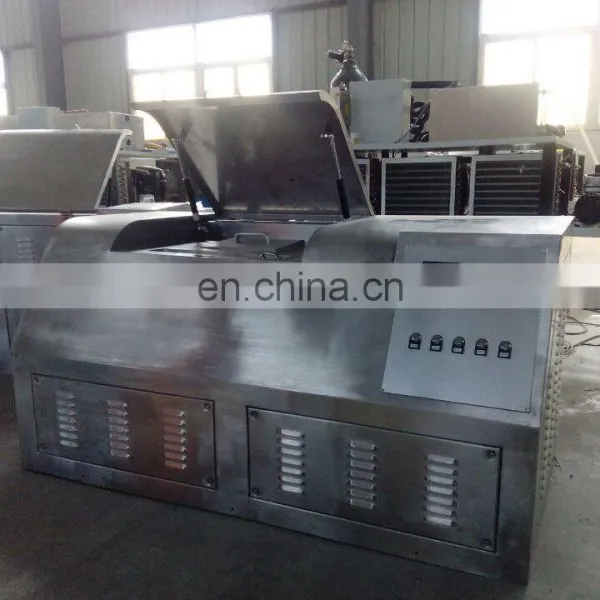

DWC -196 Factory Impact Test Refriger Liquid Nitrogen Freezing Chamber
- Qingdao China
- T/T Credit Card
You May Like
-
Wholesale JBS 300J 500J 750J Charpy Impact Test Equipment Price
-
Impact Test Manual Cutting Mode Broaching Machine
-
Impact Sample UV Notch Profile Projector
-
Factory Price ! DWTT Drop Wear Tear Impact Test Machine for Lab
-
DWTT-10000 Pipeline Steel Drop Ball Testing Machine
-
JBW-H Computer Automatic Instrumented Oscilloscope Izod Impact Test Machine
Product Details
| Brand Name | HST | Place of Origin | Shandong, China | |
| Model Number | DWC-196 | Power | Electronic |
Product Description

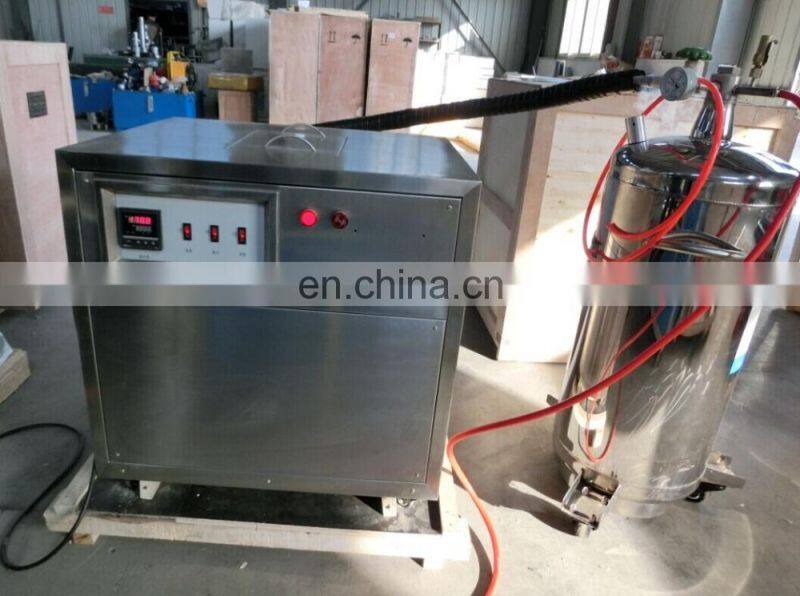

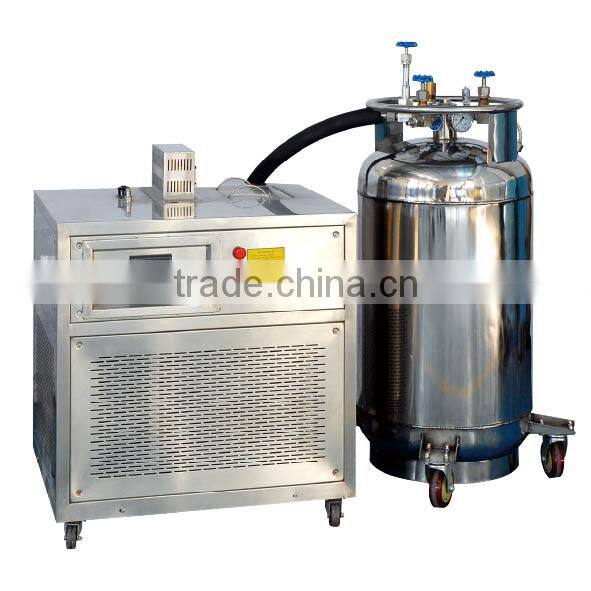

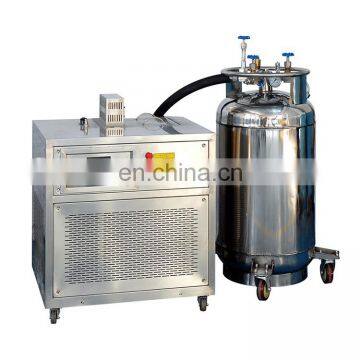

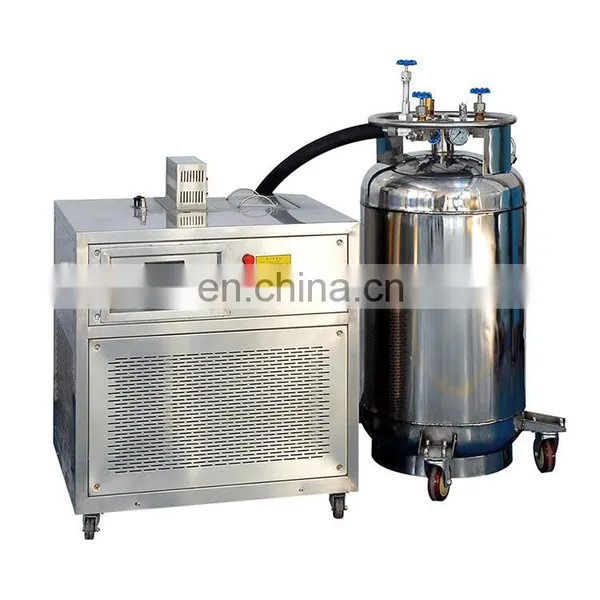

Impact Test Liquid Nitrogen Ultra Cooling freezing chamber
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
1. Application
Liquid Nitrogen Ultra Cooling Low Temperature Chamber equipment used liquid nitrogen refrigeration technology, the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB229-2007 of the provisions. The equipment is simple, convenient and efficient for working, which is theideal equipment of specimen cooling and insulation for low-temperature impact testing. At the same time, it can also be used for other low-temperature detection and testing.
2. Standards:
ASTM, E23-02a, En10045, ISO83,GB/T229-2009
3.Features:
3.1 It uses liquid nitrogen cooling technology and high-precision intelligent instrument to control ultra-low temperature test
3.2 It can achieve automatic uniform cooling and constant temperature for specimen
4. Main Specifications:
Model | DWC-100 | DWC-196 |
Cooling range | +30°C ~-100°C | +30°C ~-196°C |
Constant temperature accuracy | ±2°C | |
Temperature dropping speed | 2°C ~5°C / min | |
Max. Dimension | 900×660×650 mm | |
Dimension of the liquid nitrogen tank | 1000×600×600 mm | |
Effective working space | 240×150×150mm(huge stainless steel refrigerator) | |
Specimens amount | 60 (Impact Specimens Size: 10×10×55mm) | |
Digital timer | 1min~9999min(Resolution:1min) | |
Cooling medium | Liquid nitrogen | |
Power supply | 220V~240V, 50HZ, 2.5KW | |

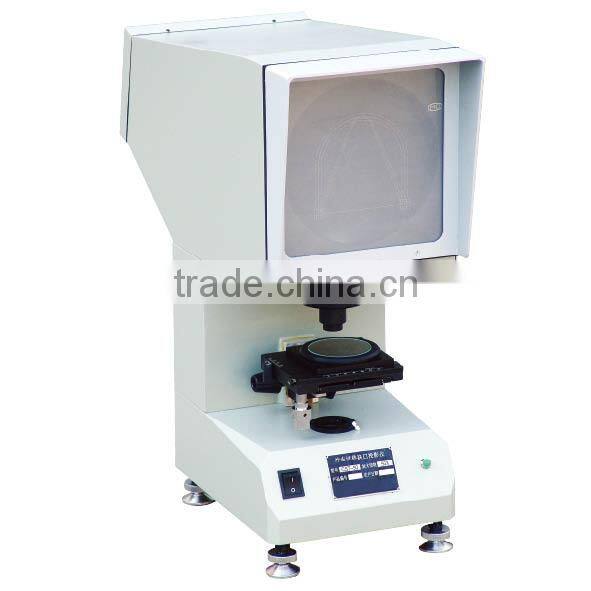

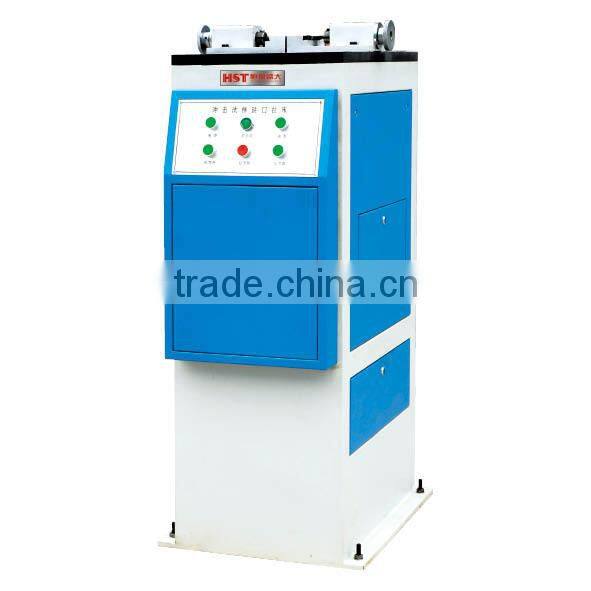

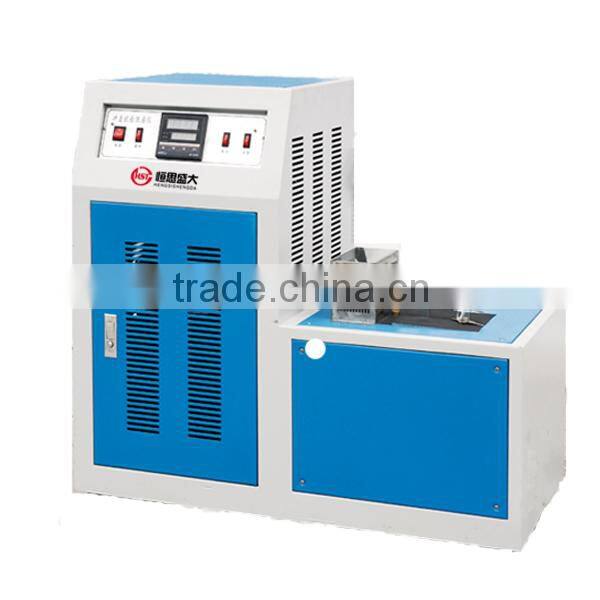

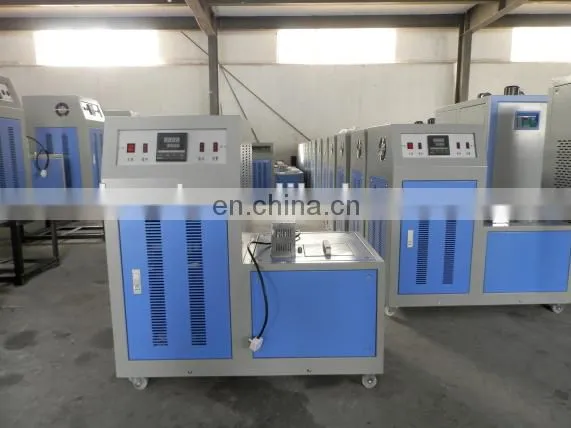

VU-2Y DWC-40/60/100 DWC-196 CST-50
