Jinan Hensgrand Instrument Co., Ltd has the self-management import and
export right.All of our testing machines through the EU CE Certificate.

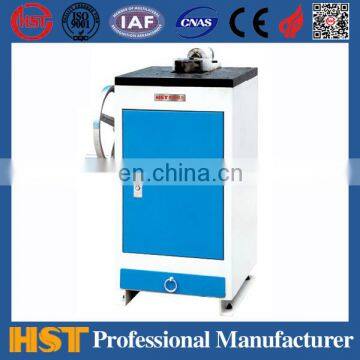

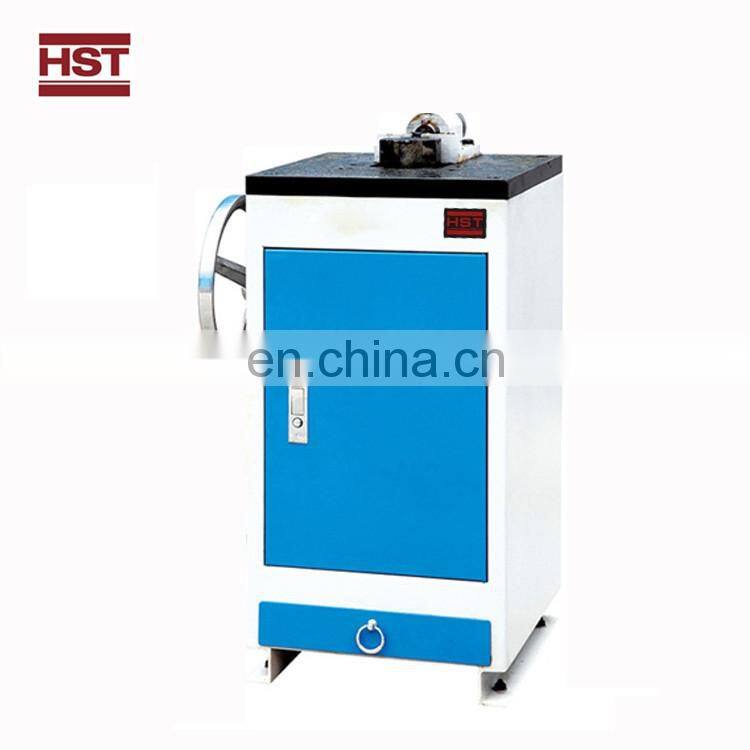

Manual Impact Specimen Notch Broaching Machine Price
/U V Notch Making Machine/Gap Cutting Machine
1.Application:
Impact sample gap/notch broaching machine is the only facility to process regular
sample gap/notch except for optical curve grinder in China.
Due to one time form processing principle, the identity of machining gap/notch is

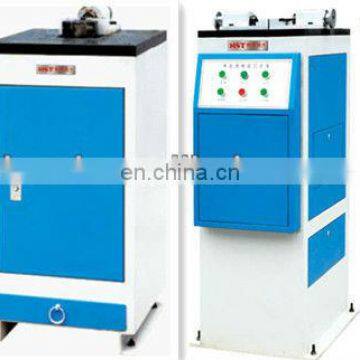

very good.The series of machine can be divided into two kinds,manual mode and
electric hydraulic mode.U type and V type are all made with W18Cr4V material to
assure its high rigidity, good wearable. Each broach can be used for about more
than 20000 times.
2.Technical Parameters:
Model |
HST |
Cut Mode |
Manual Mode |
Shape Of Sample Gap |
V Type (GB229-94 ISO148)U Type (2mm GB229-94) |
Sample Size |
10×10×55 mm |
Broach Moving Distance |
350 mm |
Broaching Speed |
2.5 m/min |
Machine Size(L*W*H) |
350×510×1280 mm |
Net Weight |
100 KG |
3.Standards:
The series machines comply with GB2106-80 “Metal Charpy (V type) Gap Impact
Test Method” and GB229-94 “Metal Charpy (U type) Gap Impact Test Method”.
It can also meet American standard, European standard ASTM,E23-02a,EN10045,
ISO148,ISO083, and so on.
4.Our CE Certificate:
5.The Packing Way Of Our Export Machines:
6.Different Kinds Of Impact Testing Machines:
7.The Realistic Pictures Of Our Factory:
8.Our company can also produce the customized testing
machines as clients' requirements.Best service and the
best price for you.
