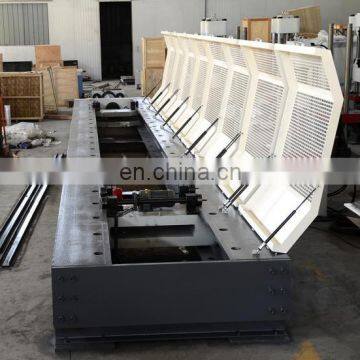

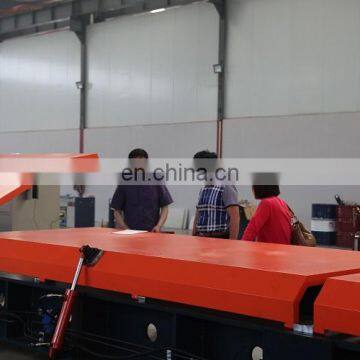

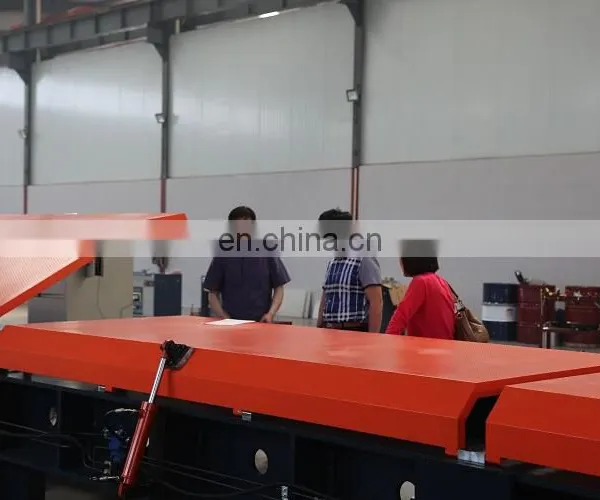

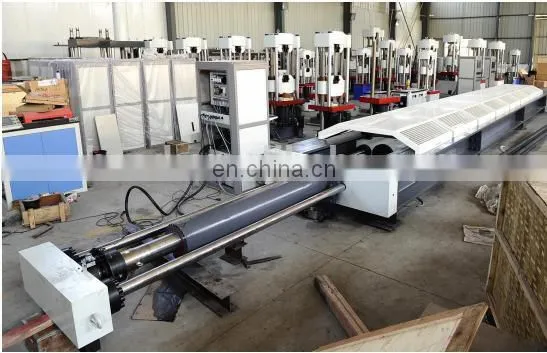

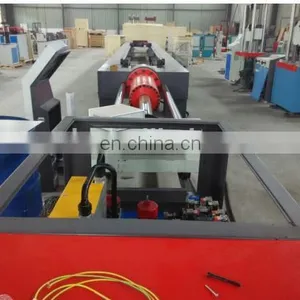

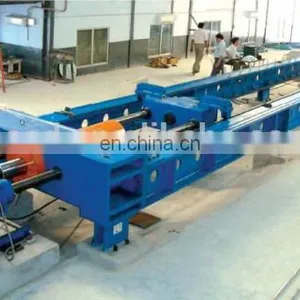

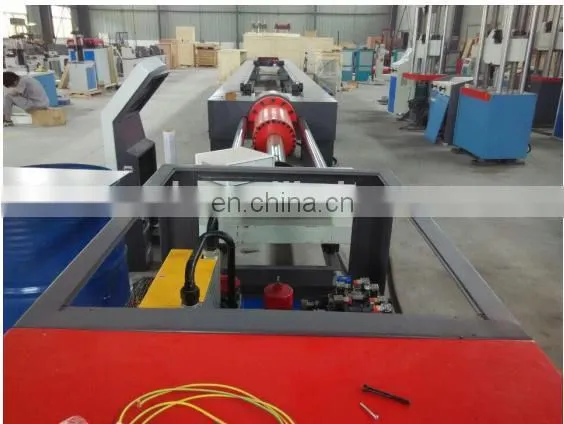

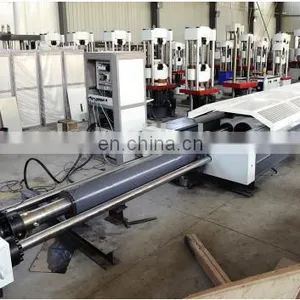

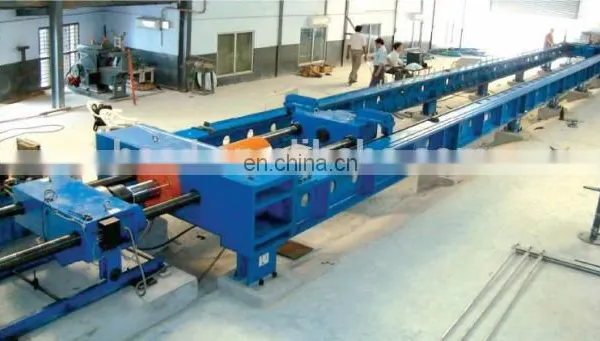

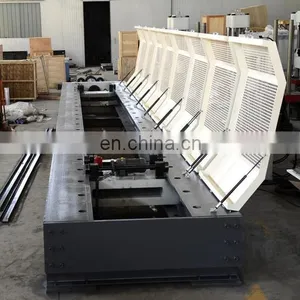

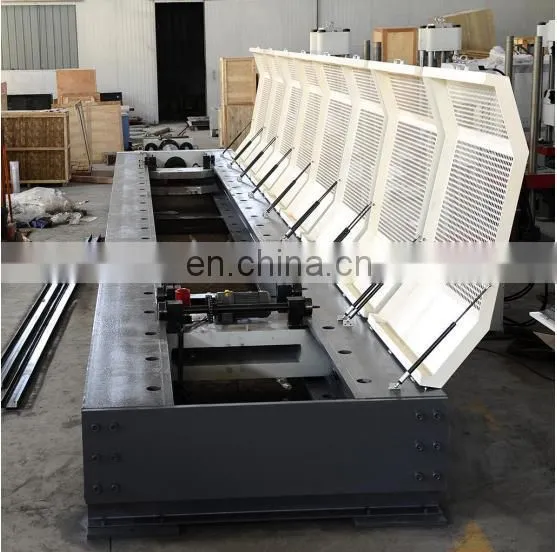

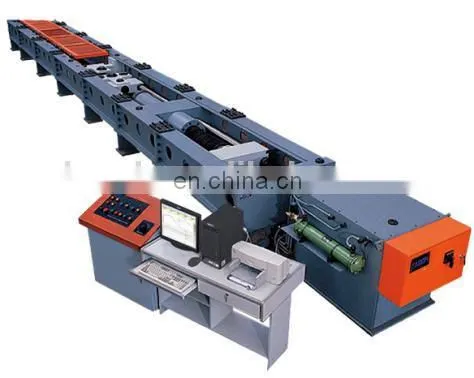

Hydraulic horizontal steel wire rope and lifting belt tensile test machine
1. Application:
WAL Series Computer Control Hydraulic Servo Horizontal Tensile Testing Machine is suitable for tensile test of long materials like wire rope, cable, nylon rope and chain etc. It applies the full digital controller, servo control system along with the standard analytic software, so it can realize close loop control for load and displacement, digitally setting zero, software/hardware digitally calibrating, protection, limit-position signal input, thus the machine posses user’ programming function. In addition the machine can be equipped with special analytic software and print the report templet according to the requirements from the customers. It’s widely used in some plants who produce longer materials.
2. Specifications:
Model |
WAL-2000 |
Max. Load(kN) |
2000 |
Load accuracy |
Class 1 |
Load range |
2%~100%F·S
|
Load resolution |
1/300000 |
Accuracy of displacement |
Within±0.5%of indicating load |
Resolution of displacement (mm) |
0.005 |
Regulated step of stationary grip(mm) |
500 |
Working space maximum length (not including cylinder)(mm) |
5000 |
Cylinder working space(mm) |
1500 |
Grips minimum space(mm) |
600 |
Grips maximum space(mm) |
3500 |
Please contact Sunny for more customized informations: +86-15866777590
