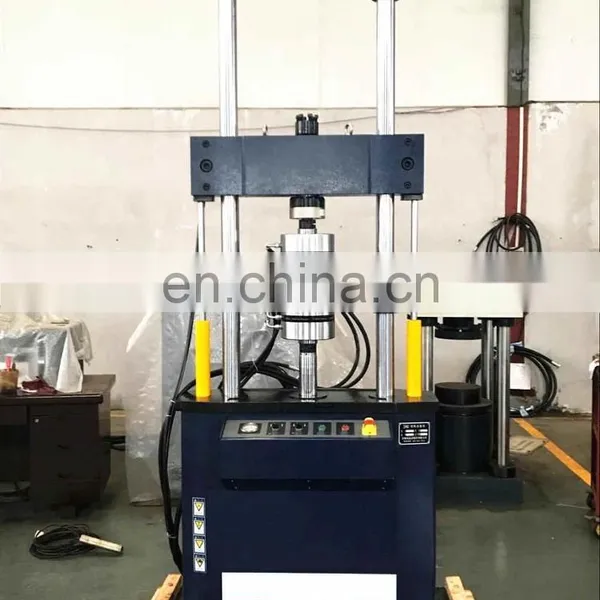

Dynamic Tension and Torsion Fatigue Testing Machine
Contact me:Sunny mobile:+86-15866777590 Skype:jessica-hssd
1. Application:

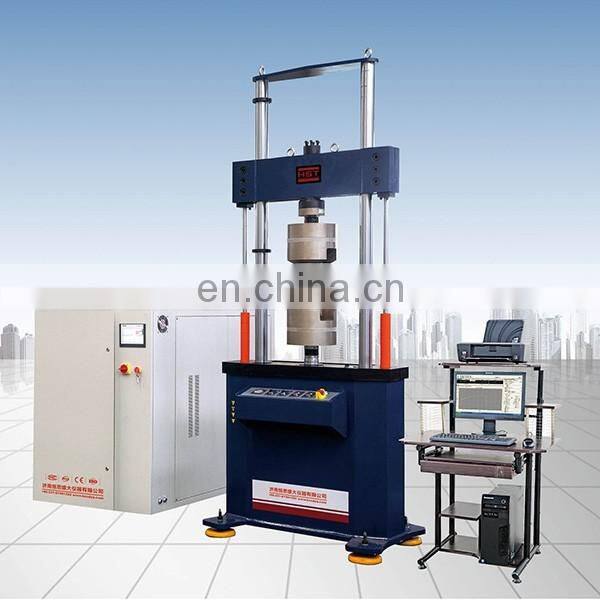

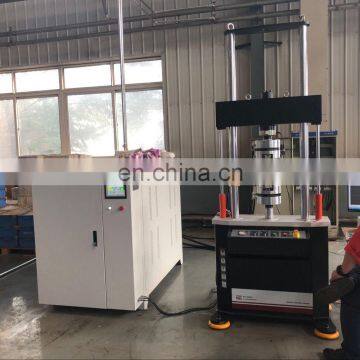

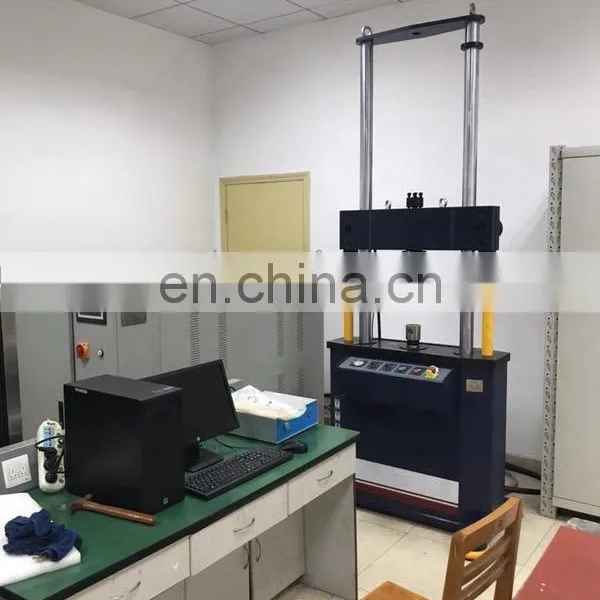

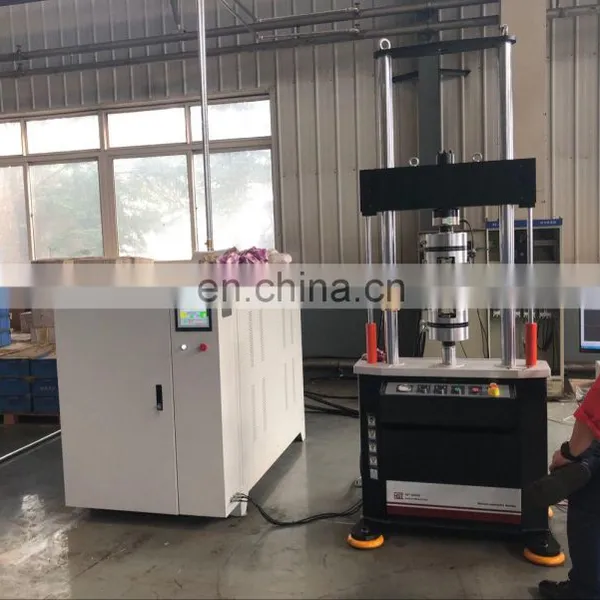

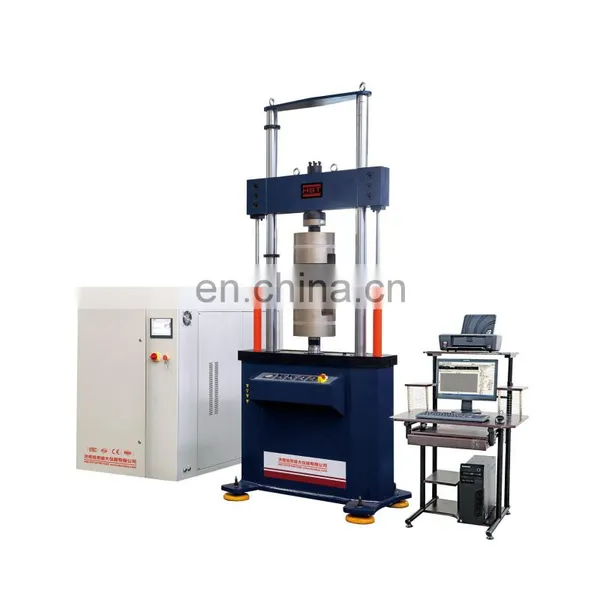

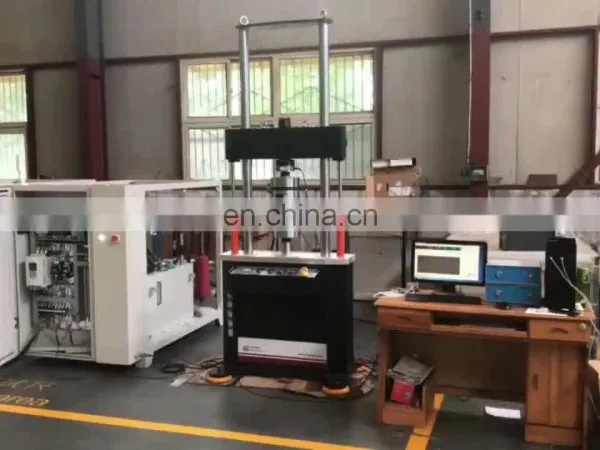

HST-750 750KN Servo Dynamic And Static Universal Testing Machine/Dynamic Fatigue Testing Machine is mainly used for the dynamic and static mechanics performance tests of material and parts,equipped with corresponding accessories.
It can do tensile, compression, low cycle and high cycle,carck growth tests and other mechanics for various kinds of materials.
2.Main technical parameter:
Model |
HST-50 |
HST-100 |
HST-200 |
HST-500 |
HST-750 |
HST-1000 |
|
Load Capacity(kN) |
Static |
50 |
100 |
200 |
500 |
750 |
1000 |
Dynamic |
±40 |
±80 |
±160 |
±400 |
±600 |
±800 |
|
|
Measurement Accuracy |
Load |
±1.0% of Reading |
|||||
Displacement |
±1.0% FS of Each File |
||||||
Deformation |
±1.0% of Reading |
||||||
|
Function Generator Range Of Frequency |
0.001~50 Hz |
||||||
Stroke of Piston(mm) |
±50 |
±50 |
±75 |
±75 |
±75 |
±75 |
|
Distance Between Columns |
500mm |
565mm |
700mm |
820mm |
820mm |
1000mm |
|
Distance Between Grips |
50~600mm |
||||||
