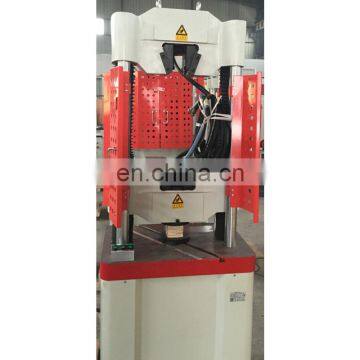

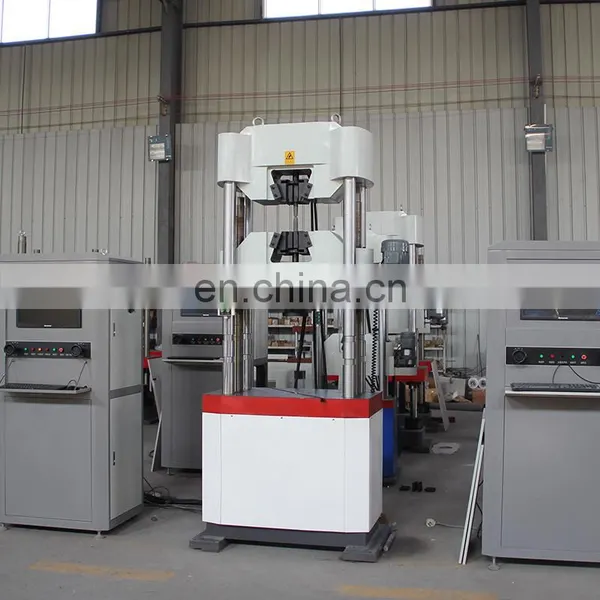

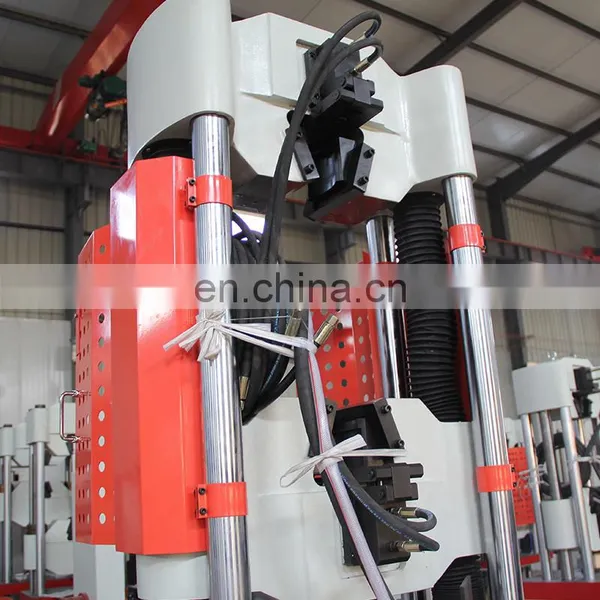

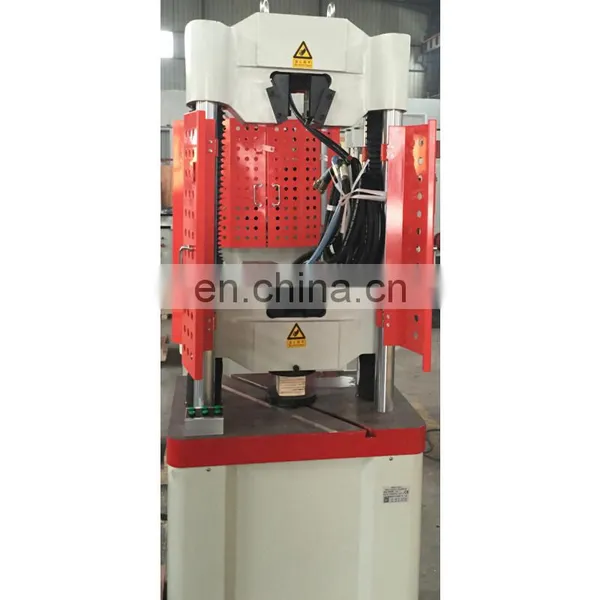

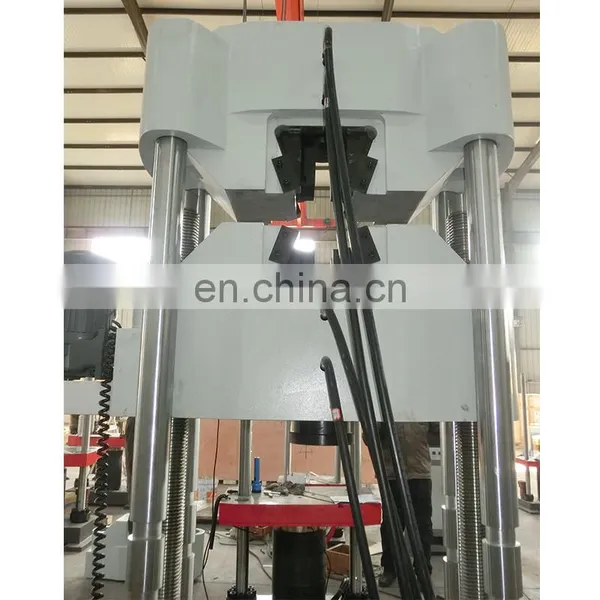

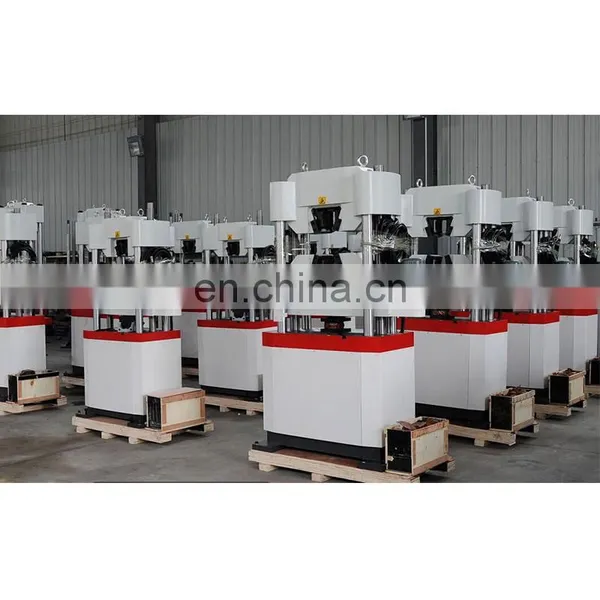

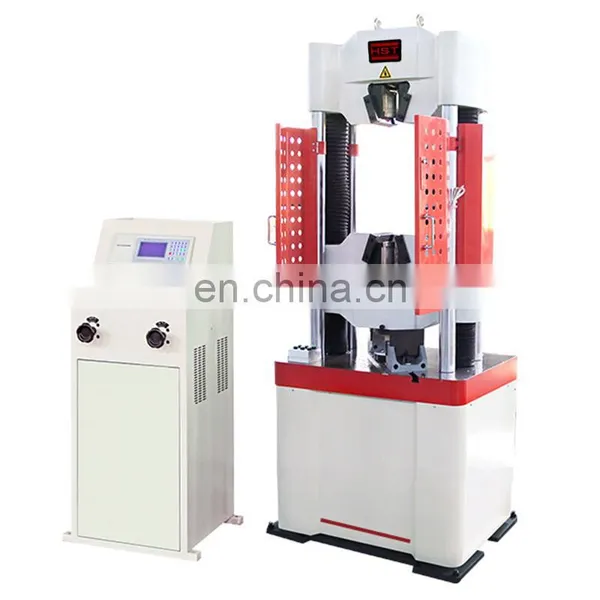

Professional steel tensile hydraulic press testing machine

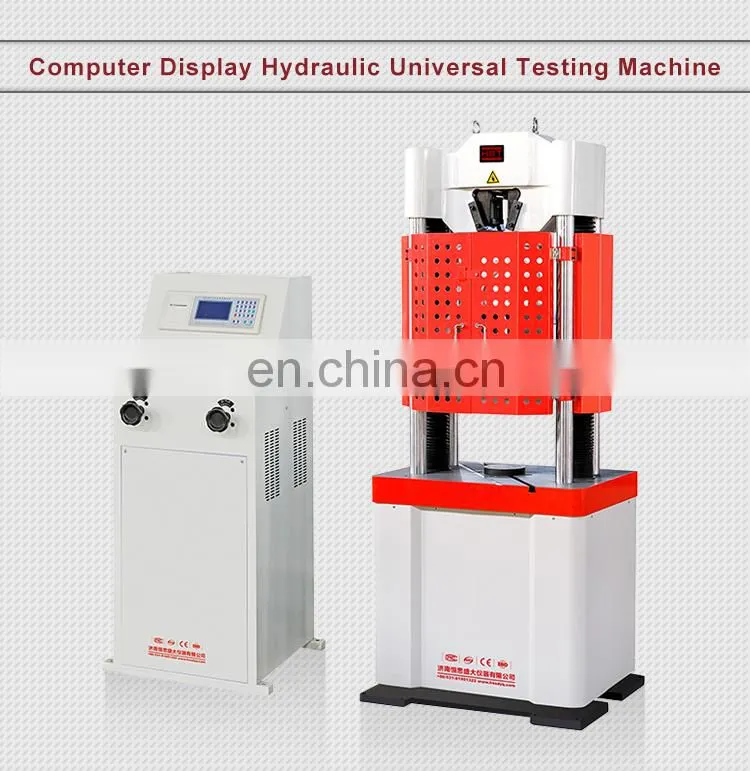

Hydraulic Universal Testing Machine is suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and non-metal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
| Model | WE-100D | WE-300D | WE-600D | WE-1000D |
| Structure | 6 Column (Four Columns Two Ball Screws) | |||
| Control Way | Loading Process Manual Control | |||
| Max. Load | 100 KN (10 TONS) | 300 KN (30 TONS) | 600 KN (60 TONS) | 1000 KN (100 TONS) |
| Load Accuracy | ≤± 1% | |||
| Load Range |
2%~100%FS (2KN~100KN) |
2%~100%FS (6KN~300KN) |
2%~100%FS (12KN~600KN) |
2%~100%FS (20KN~1000KN) |
| Load Resolution | 0.01 KN | |||
| Piston Speed |
0-140mm/min Manual Adjustment |
0-140mm/min Manual Adjustment |
0-90mm/min Manual Adjustment |
0-50mm/min Manual Adjustment |
| Crossbeam Lifting Speed | 190mm/min | 190mm/min | 190mm/min | 150mm/min |
|
Max. Effective Tension Test Space |
750mm (Can Be Customized) | 650mm (Can Be Customized) | ||
|
Max.Effective Compression Test Space |
600mm (Can Be Customized) | 500mm (Can Be Customized) | ||
|
Center Spacing Between Columns |
490mm | 490mm | 540mm | 600mm |
|
Column Effective Spacing |
420mm | 420mm | 475mm | 525mm |
| Max. Piston Stroke | 250mm | |||
| Clamping Method | Manual Clamping / (Optional: Hydraulic Clamping) | |||
|
Round Specimen Clamping Range |
Φ10-Φ20mm,Φ20-Φ32mm (Optional: Φ4-Φ10mm) |
Φ13-Φ26mm,Φ26-Φ40mm (Optional: Φ6-Φ13mm, Φ40-Φ50mm) |
||
|
Flat Specimen Clamping Range |
0-15mm (Optional: 15-30mm) | |||
|
Flat Specimen Clamping Width |
75mm | 75mm | 80mm | 80mm |
|
Compression Platen Size |
Φ 160mm | |||
|
Span Of Bending Rollers |
450mm | |||
|
Width Of Bending Rollers |
120mm | |||
| Power Supply | 3-Phase 4-Wires, AC 380V, 50Hz (Can Be Customized) | |||
