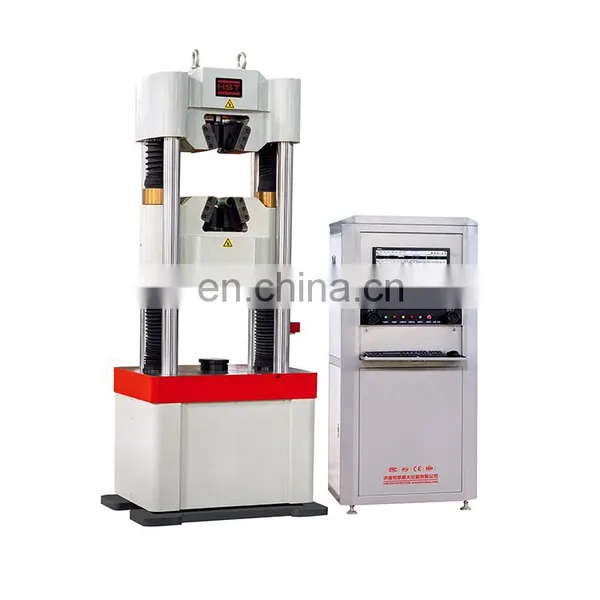

Help Center200ton 2000KN Steel Tensile Test Machine Manufacturer
Related Products
-
Steel Universal Tensile Peel Strength Elongation Break Testing Machine With AstmUS$ 7,800 - 9,900MOQ: 1 Set -
300KN Mild Steel Bar Bending/compression/tensile/tension Testing EquipmentUS$ 5,999 - 8,999MOQ: 1 Set
-
WAW-2000KN//450KIP Utm Tensile Shear Strength Testing Measurement With Astm StandardUS$ 19,999 - 39,999MOQ: 1 Set
-
China Supplier Mechanical Universal Testing Equipment for Metal Steel MaterialsUS$ 6,400 - 7,200MOQ: 1 Set
-
Universal Tensile Traction Testing Machine 100kn 200knUS$ 5,000 - 7,000MOQ: 1 Set

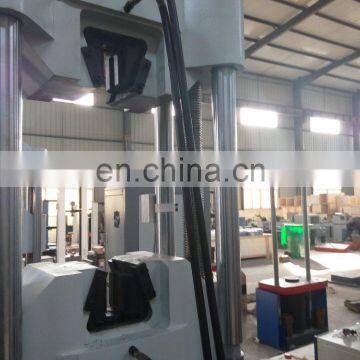

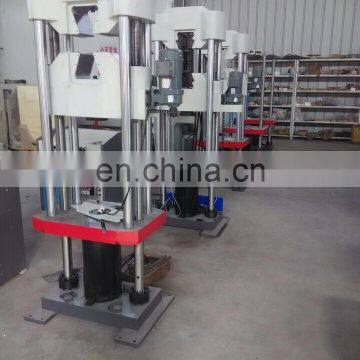

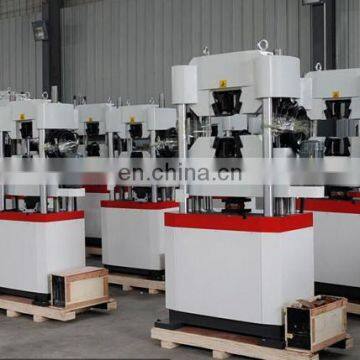

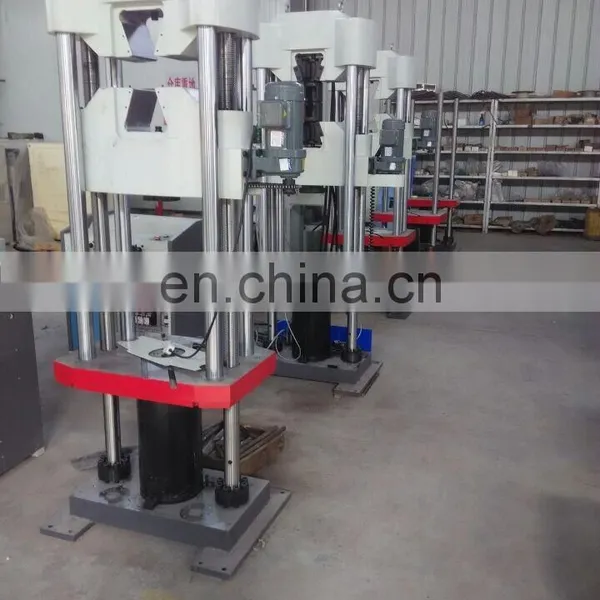

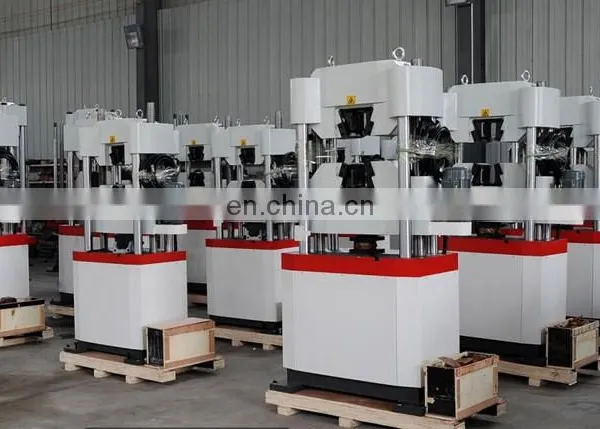

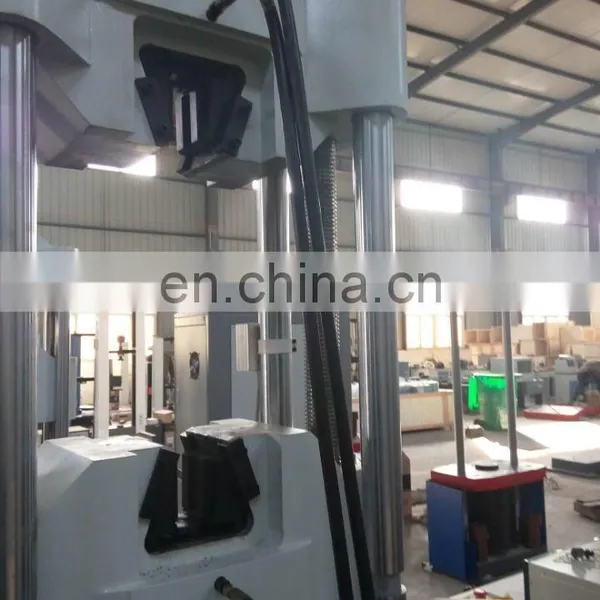

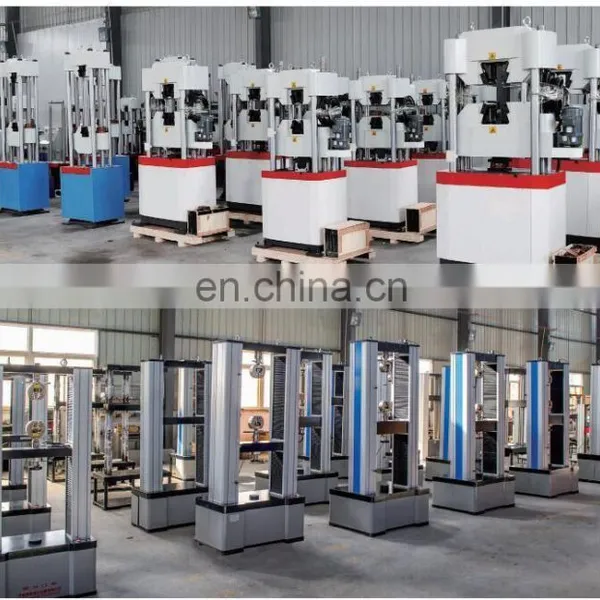

Factory Metal Steel Tensile Universal Testing machine +laboratory equipment
1. Application
Factory Steel Rebar Steel Strip Steel Sheet Tensile Test Equipment for sale is suitable for tension,
compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2. Standards material universal tensile test machine
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Main specifications
Model |
WAW-2000D |
Structure |
4 columns and 2 screws |
Control way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
Max.load (kN) |
2000kN |
Load accuracy |
≤±1% |
Load range |
2%-100%FS |
Load resolution |
1/300000 |
Deformation Measurement Range |
2%~100%FS |
Deformation accuracy |
≤±1% |
Displacement resolution (mm) |
0.01 |
Displacement error |
≤±0.5% |
Max.piston stroke(mm) |
250 |
Max piston moving speed |
0-90mm/min stepless speed adjusting |
Crosshead lifting speed |
200mm/min |
Max. tension test space |
850mm (can customize) |
Max.Compression Test Space |
650mm (can customize) |
Clamping method |
Hydraulic clamp |
Round specimen clamping range (mm) |
Φ12-Φ30mm, Φ30-Φ50mm, Φ50-Φ70mm |
Flat specimen clamping range (mm) |
0-35 mm |
Flat specimen clamping width(mm) |
80 |
Compression plate size (mm) |
Φ240 |
Bending roller distance(mm) |
450 |
Width of bending rollers (mm) |
120 |
Power supply |
3-phase,AC380V, 50Hz(can be customized) |
