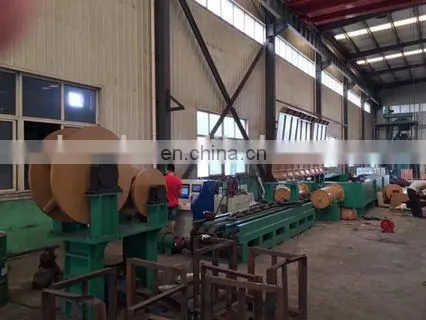

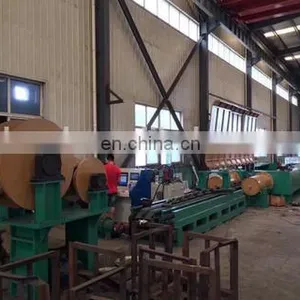

250 Ton load cell hydraulic computerized horizontal rope sling tensile test bed
1. Application:
WAL Series Computer Control Hydraulic Servo Horizontal Tensile Testing Machine is suitable for tensile test of long materials like wire rope, cable, nylon rope and chain etc. It applies the full digital controller, servo control system along with the standard analytic software, so it can realize close loop control for load and displacement, digitally setting zero, software/hardware digitally calibrating, protection, limit-position signal input, thus the machine posses user’ programming function. In addition the machine can be equipped with special analytic software and print the report templet according to the requirements from the customers. It’s widely used in some plants who produce longer materials.
2.Applied Standard:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4
3.Specifications:
4. Features:
4.1. Computer automatic loop-closed control, sensor test force,
4.2. Computer screen can timely display, memory printing
4.3. Automatic calculate the material test result of the max force, tensile strength
5. Configuration
5.1. Test machine host
Single out bar double action low friction piston cylinder------ 1 set
Oil cylinder block------ 1 set
Tensile test fixture----- 1 set
Host framework (using the steel plate welding structure)-------1 set
Safety protection device (including protective cover, etc).------ 1 set
5.2. Control cabinet
Bench hydraulic pump station--1 set
Italy MARZOCCHI import oil pump
5.3. Tester acquisition display system
AD800 universal test card---- 1 set
Maxtest tester special software under the WINDOWS98/2000 / XP operating environment------ 1 set
High voltage control system---- 1 set
High precision load sensor----- 1 pc
5.4. Computer system:
LENOVO computer ----1set
HP printer---1set
