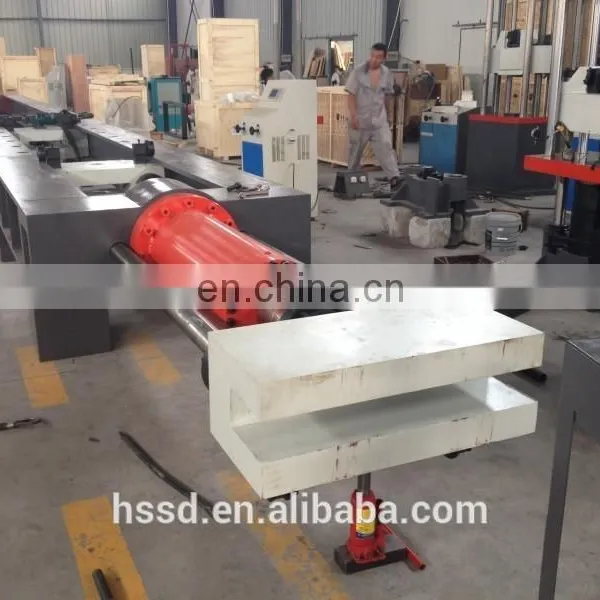

60/100/200 TON horizontal tensile test bench wire rope tester price
1. Application:
WAL Series Computer Control Hydraulic Servo Horizontal Tensile Testing Machine is suitable for tensile test of long materials like wire rope, cable, nylon rope and chain etc. It applies the full digital controller, servo control system along with the standard analytic software, so it can realize close loop control for load and displacement, digitally setting zero, software/hardware digitally calibrating, protection, limit-position signal input, thus the machine posses user’ programming function. In addition the machine can be equipped with special analytic software and print the report templet according to the requirements from the customers. It’s widely used in some plants who produce longer materials.
2.Applied Standard:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4
3.Specifications:
Model |
WAL-3500 |
WAL-5000 |
Max.Load(kN) |
3500 |
5000 |
Load Range |
2%~100% of Full Scale |
2%~100% of Full Scale |
Load Accuracy |
±1% |
±1% |
Relative Error of Displacement |
±1% |
±1% |
Stress Speed (Mpa/s) |
1-45 |
1-45 |
Tensile Space(mm) |
35000 (can customize) |
35000 (can customize) |
Piston Stroke(mm) |
1000 (can customize) |
1500 (can customize) |
Method of Specimen Clamping |
Bolt Method |
Bolt Method |
Effective Testing Space(mm) |
Width 750 |
Width 750 |
Control Mode |
Computer Control |
Computer Control |
Power Supply |
380v±10%,50Hz |
380v±10%,50Hz |
Send Inquiry to This Supplier
