WAW-Hydraulic Universal Testing Machine Price+Tensile Testing Machine 300kn +Construction Lab Equipment Price

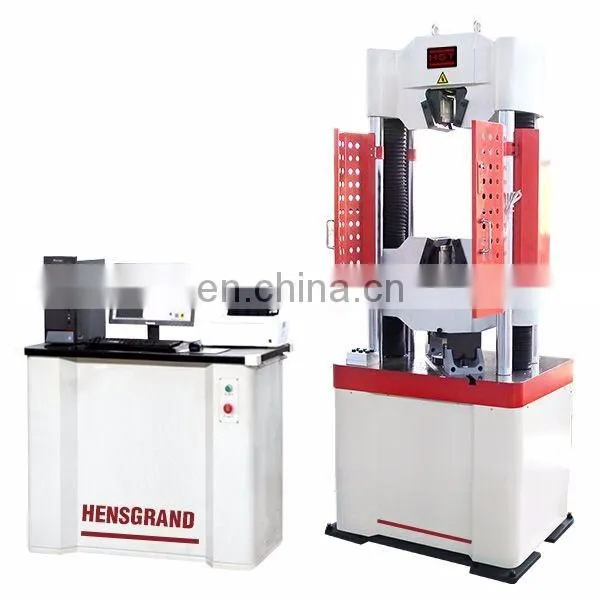

The machine adopts hydraulic loading, digital display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, shearing etc. Mainly test for metal materials.
Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber and so on. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
Specification
Model | WAW-300D |
Structure | 4 columns and 2 screws |
Control way | Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
Max.load (kN) | 300kN |
Load accuracy | ≤±1% |
Load range | 2%-100%FS |
Load resolution | 1/300000 |
Deformation Measurement Range | 2%~100%FS |
Deformation accuracy | ≤±1% |
Displacement resolution (mm) | 0.01 |
Displacement error | ≤±0.5% |
Max.piston stroke(mm) | 250 |
Max piston moving speed | 0-90mm/min stepless speed adjusting |
Crosshead lifting speed | 200mm/min |
Max. tension test space | 750mm (can customize) |
Max.Compression Test Space | 600mm (can customize) |
Column clearance(mm) | 420 |
Clamping method | Hydraulic clamp |
Round specimen clamping range (mm) | Φ10-Φ20,Φ20-Φ32, (Φ4-Φ10 Optional ) |
Flat specimen clamping range (mm) | 0-15 (15-30 Optional) |
Flat specimen clamping width(mm) | 80 |
Compression plate size (mm) | φ160 |
Bending roller distance(mm) | 450 |
Width of bending rollers (mm) | 120 |
Power supply | 3-phase,AC380V, 50Hz(can be customized) |
